Specifications
1.Reliable diesel engin2.Prossess great working mass
3.Equipped with padfoot
4.Adopt joint venture's gear pump and motor
Low price dual-amplitude vibratory road roller,18 ton good quality road roller
1.Standard configuration
Model : QLN 218B
Engine : YC6B150
1.Mechanical driving, hydraulic vibrating,double amplitude,hydraulic steering
2.Special gear box and driving axle for road roller
3.Adopt joint venture's gear pump and motor
4.With protective glass and cab with protective tipping gear.
2.Optional configuration
1.Engine: cummins6BT5.9
2.Air conditing cab
3.Puddlability random survey meter;
3.Main Features
1.Mechanical travel drive,double amplitude,hydraulic vibration and steering with optimal function/price ratio and reliable performance.
2.Reliable D6114 or YC6108 diesel engine for operation and maintenance.
3.Two sets of brake devices,a hand brake and foot pedal brake ,assure the machine's safety and dependability.
4.Spacious and comfortable cab mounted on top quality rubber damping elements.
5.World advanced technology is adopted for the hydraulic vibration technology,high in reliability,simple and convenient in maintenance and low in cost.
6.Equipped with padfoot or removal padfoot as option.
4.Main Technical Parameters
| Model | QLN 218B | ||||
| Operating mass | kg | 18000 | Vertical oascillation | ° | 8 |
| Static linear load | N/cm | 415 | Tyre size | 23.1-26 | |
| Vibration frequency | HZ | 30 | Overall length | mm | 5930 |
| Vibration amplitude | Mm | 2.0/1.0 | Overall width | mm | 2300 |
| Centrifugal force | KN | 340/200 | Overall height | mm | 3020 |
| Travel speed | Vibration round width | mm | 2100 | ||
| 1st gear | 2.0 | Drum dimeter | mm | 1600 | |
| 2nd gear | 4.0 | Drum thinckness | mm | 40 | |
| 3rd gear | 10.5 | Wheelbase | mm | 3160 | |
| Grade ability | % | 35 | Diesel model | YC6B150 | |
| Turning angle | ° | 35 | Diesel power | kw | 110 |
| Ground clearance | mm | 432 | Diesel speed | r/min | 2000 |
| Electrical vollage | V | 24 | Fuel tank capacity | L | 180 |
| Turning radius | mm | 7000 | Hydraulic capacity | L | 150 |

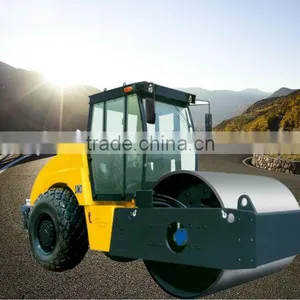

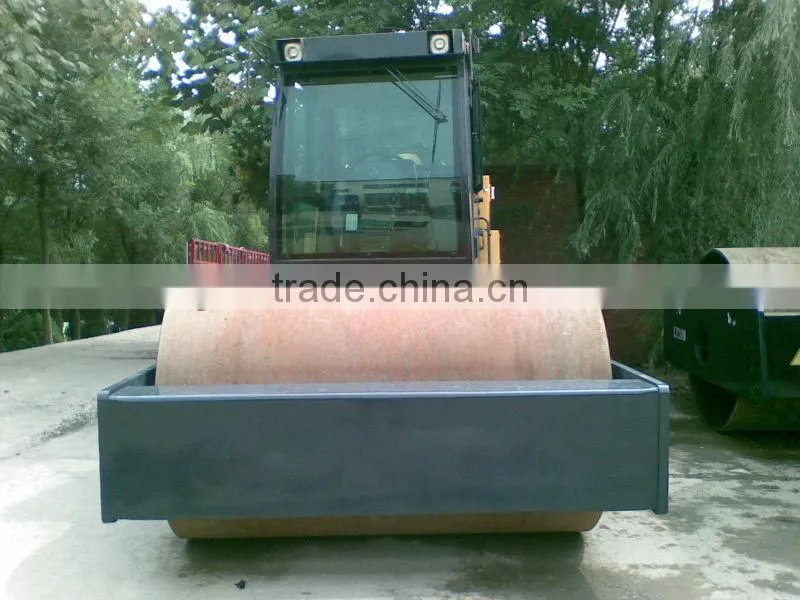

5.Pictures
details
Our certificates:
NOTE:
We offer low price products with highest performance cost ratio.
If you are interested in our road roller, please feel free to contact us.
Electronic catalog will be sent to you upon receipt of your inquiries.
Contact : Jenny lu
Skype: jenny.lv7
Tele: 0086-0371-55051327
