Specifications
1.CE certificates2.One year warranty
3.High reliability and safety
4.Easy to operate
5.High efficiency
10 ton hydraulic double drum vibratory road roller,easy to operate road roller
1. Standard configuration
1. Full hydraulic two wheels drive and vibrating,CVT;
2. Engine:cummins6BT5.9 engine;
3. Travelling and vibrating system: adopte the products of SAUER or REXROT;
4. Hydrostatic center articulted steering, patented crab mechanism;
5. Rotating seats with the air conditioner in the cab;
2. Optional configuration
Driving system: Optional at the motor torque loaded poclain
3. Main Features
1.Full hydraulic two wheel drive and vibration
2.Double frequency double vibration system
3.Hydrostatic center articulated steering,patented crab mechanism.
4.The driver's cabin can be turned on one side as a whole,to facilitate maintenance.
5.Cabin with air conditioner,comfortable and spacious,the flexible steering seat facilicates the operation.
6.Fork-type frame,good hold-down property.
7.Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER.
4. Main Technical Parameters
| MODEL | QLNC210 | ||||
| Operating mass | kg | 10000 | Travel speed | Km/h | 0-11.1 |
| Front axle load | kg | 5000 | Turning radius | mm | 6000 |
| Rear axle load | kg | 5000 | Grade ability | % | 25 |
| Static linear load | N/cm | 238 | Steering angle | ° | ±35 |
| Form of frame | Fork-type | Drum diameter | mm | 1150 | |
| Crabwise movement distance | mm | ±170 | Drum width | mm | 1730 |
| Water tank capacity | L | 2x400 | Drum rim thickness | mm | 20 |
| Fueltank capacity | L | 110 | Transverse swing angle of the vibrating wheel | ° | ±8 |
| Hydraulic tank capacity | L | 75 | Type of water apray | mm | pressure |
| Vibration frequency | mm | Wheelbase | mm | 3217 | |
| High ampl. | 0.67 | Overall length | mm | 4558 | |
| Low ampl. | 0.34 | Overall width | mm | 1840 | |
| Vibration frequency | Hz | Overall height | mm | 2830 | |
| High ampl. | 45 | Ground clearance | mm | 324 | |
| Low ampl. | 50 | Diesel model | 4BT3.9 | ||
| Centrifugal force | KN | Diesel power | kw | 75 | |
| High ampl. | 90x2 | Diesel speed | r/min | 2400 | |
| Low ampl. | 69x2 |
5. Usage of QLNC210 road roller
QLNC212 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad.
The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc.

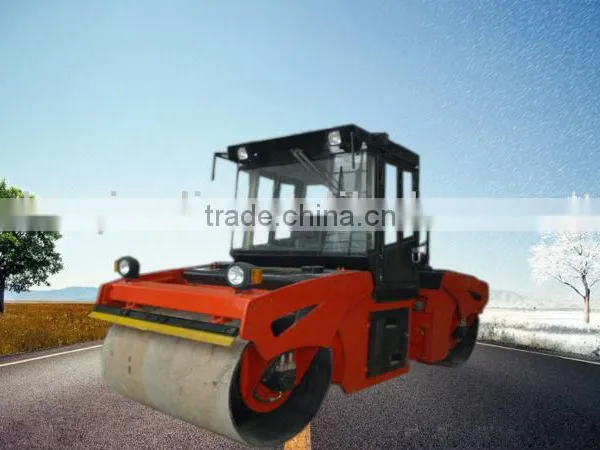

6. Pictures of QLNC210 road roller

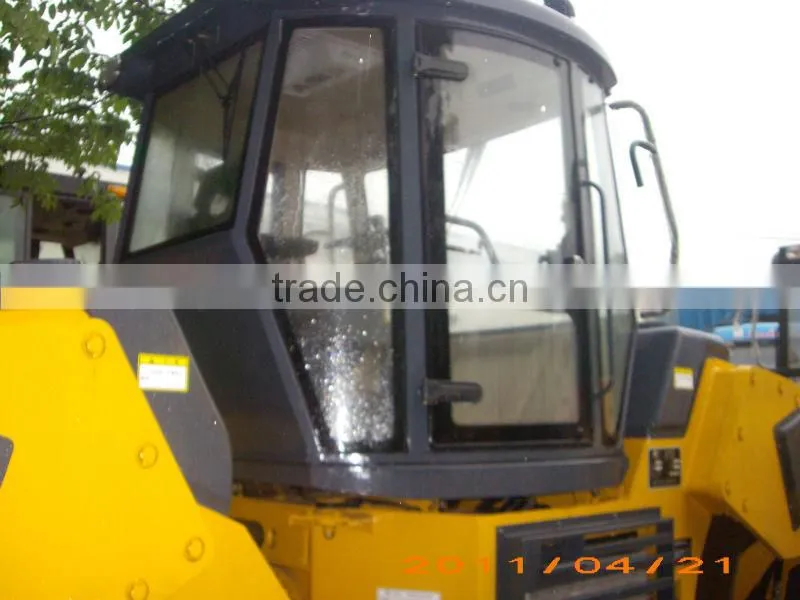

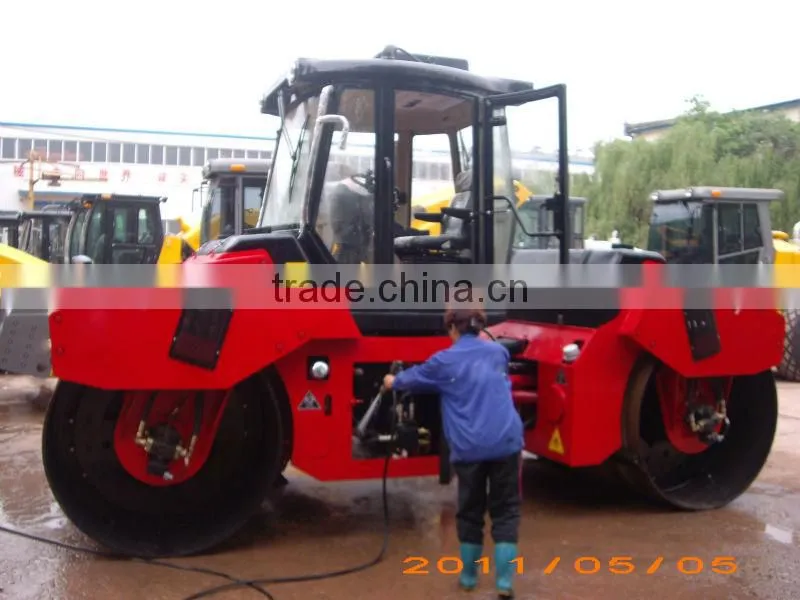

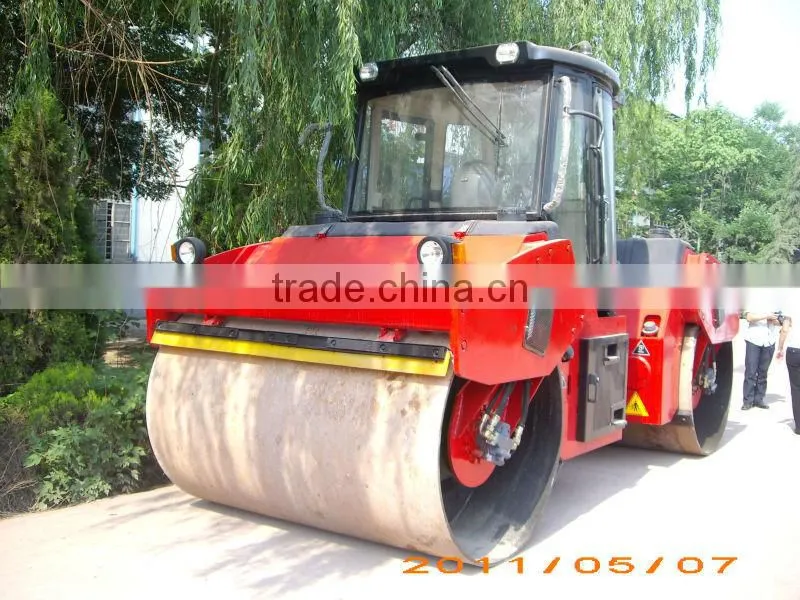

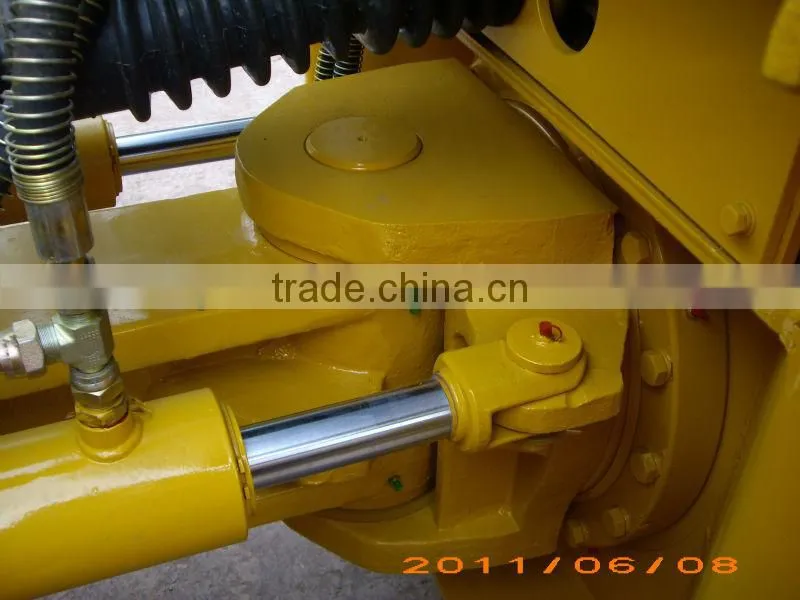

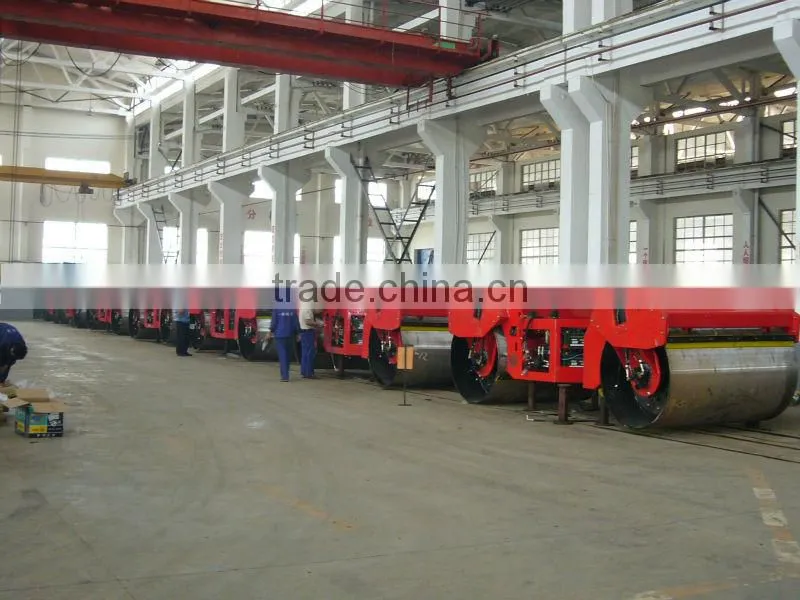

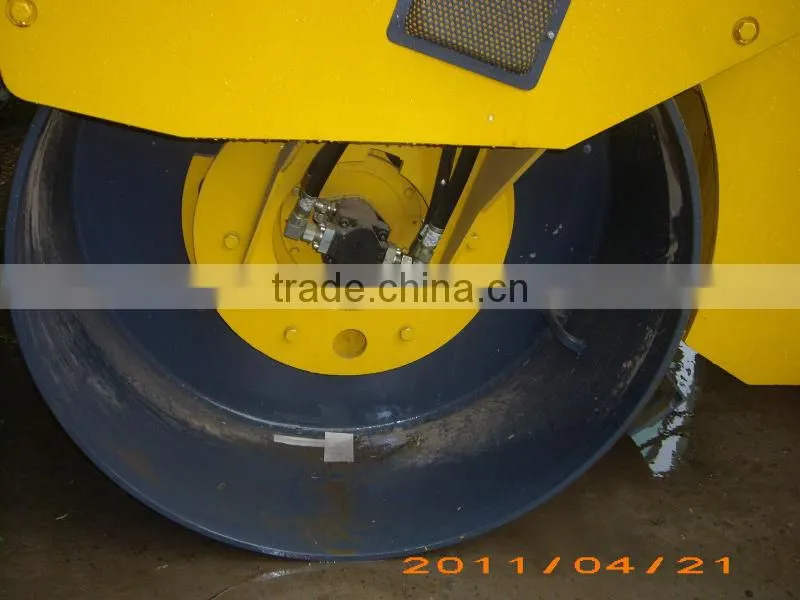

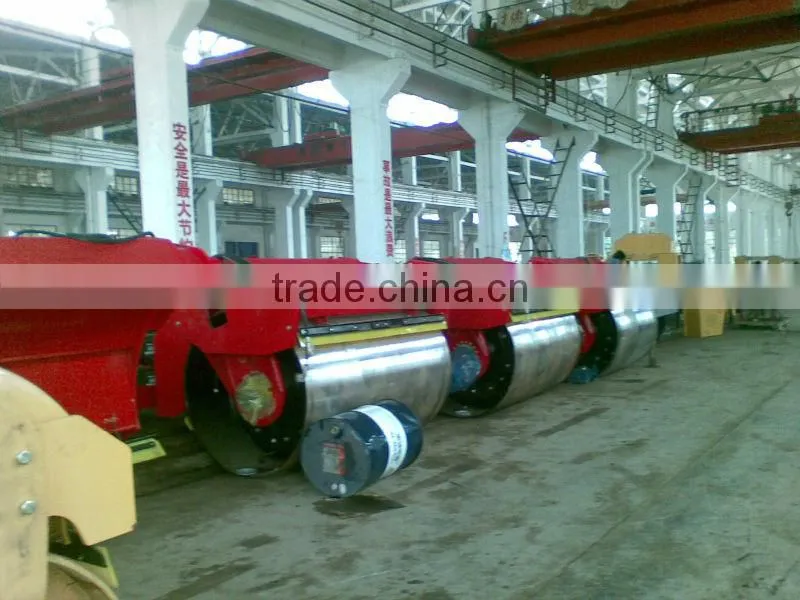

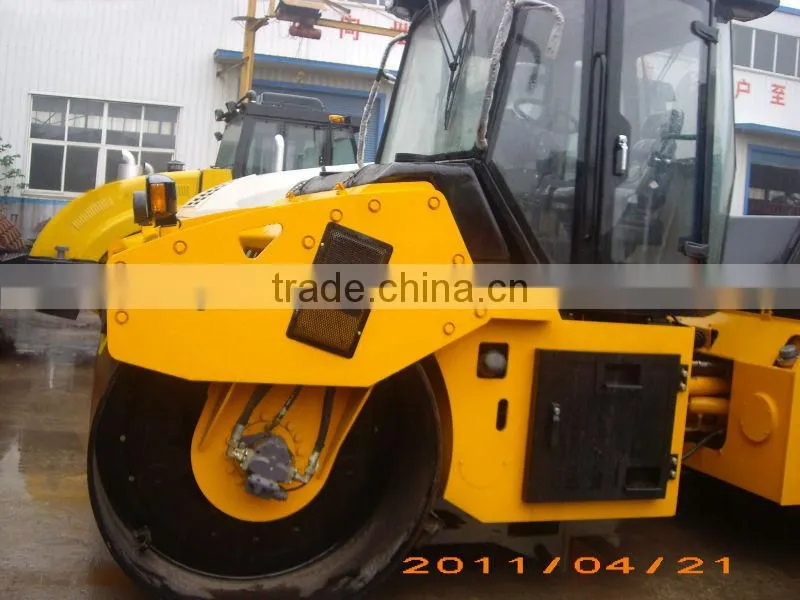

Our factory and details of road roller
Our certificate
Note:
We offer low price products with highest performance cost ratio.
If you are interested in our road roller, please feel free to contact us.
Electronic catalog will be sent to you upon receipt of your inquiries.
Contact : Jenny lu
Skype: jenny.lv7
Tele: 0086-0371-55051327
