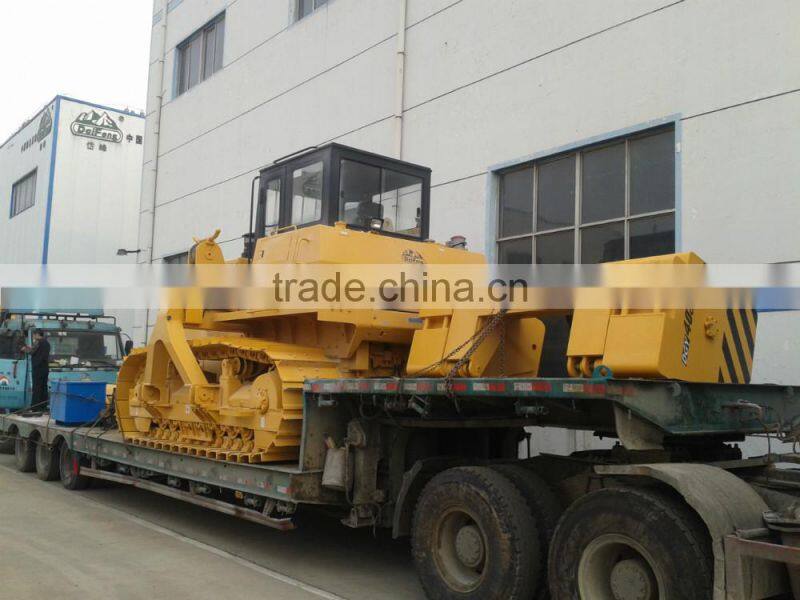

DGY15 Crawler Pipe-layer
Main Specifications:
Model |
Unit |
DGY15 |
|
Chassis Model |
T140-2 |
||
Engine |
Model |
|
Weichai WD10G156E26 |
Rated Power |
Kw/rpm |
115/1800 |
|
Lowest fuel consumption rate |
g/kw·h |
220 |
|
Max lifting capacity at tipping point |
t |
15 |
|
Max. lifting moment at min. Load overhang |
kn.m |
179 |
|
Max. lifting moment at max. Load overhang |
kn.m |
110 |
|
Max.hoist speed of the hook |
m/min (4 part line) |
12 |
|
Boom length |
m |
6.0 |
|
Max lifting height of the boom |
m |
4.5 |
|
Boom elevating time |
s |
30 |
|
Rated Pressure of hydraulic system |
MPa |
20 |
|
Hook,Boom winch |
|
Hydraulically driven,Planetary transmission |
|
Track pitch |
mm |
203 |
|
Track Gauge |
mm |
1880 |
|
Length of track on ground |
mm |
2570 |
|
Min ground clearance |
mm |
355 |
|
Track width |
mm |
560 |
|
Max grade ability |
|
20° |
|
Suitable altitude |
m |
0~3000 |
|
Temperature of surrounding |
℃ |
-40℃~+60℃ |
|
Overall diameter |
With boom(m) |
4.25×5.03×6.6 |
|
Without boom(m) |
4.25×3.01×3.3 |
||
Operating weight |
kg |
19700 |
|
