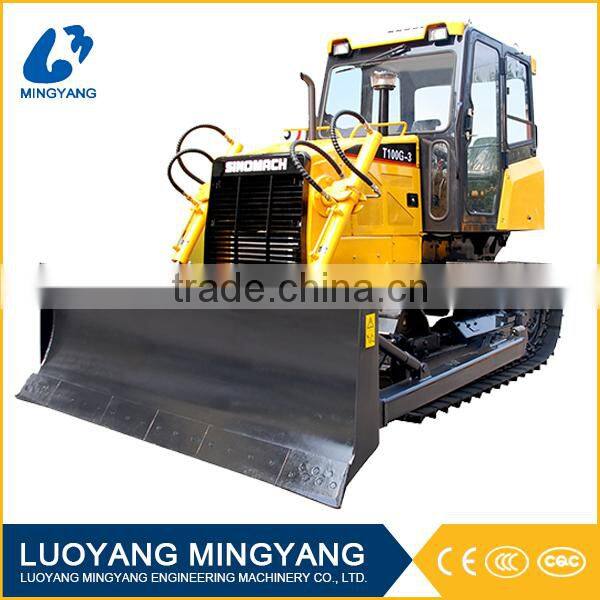

T100G-3 100Hp Crawler Pushdozer
Main features:
1. Engine: choose the pressure rising engine produced by British Ricardo joint-venture technology, lower oil consumption, stronger torsion.
2. Main clutch: choose dry, dual-sheet and constant combining clutch, which features simple construction, more reliable, and easier maintenance.
3. Gearbox: choose 4F+2R mechanical gearbox, which is of high efficiency, simple operation, easy maintenance and reliable operation.
4. Turning clutch: choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintaining, lightly and conveniently operating.
5. Transmission: choose two classes, straight teeth, big modulus gear transmission, stronger carrying capacity, and higher in reliability.
6. Optional device: several devices such as direct-pouring shovel, environmentally hygienic, angle shovel, coal pushed shovel and soil scarifier are available for user.
Technical parameters:
Model |
|
T100G-3 |
Total weight |
kg |
10400 |
Max towing force |
kN |
95 |
Engine model |
|
LR6A3-23 |
Engine rated power |
kw |
81 |
Engine rated speed |
r/min |
2300 |
Fuel consumption of the engine |
g/kw.h |
≤242 |
Engine max torque |
N.m |
400 |
Forward I-IV gears |
km/h |
2.6-10.4 |
Reverse I-II gears |
km/h |
3.7-6.7 |
Max. slope angle |
o |
≥30 |
Caterpillar track board width |
mm |
450 |
Land pressure |
Kpa |
54.4 |
Overall dimension(L×W×H) |
mm |
4190×2900X2980 |
Bulldozer shovel(W×H) |
mm |
2935X960 |
Blade max lifting height |
mm |
830 |
Blade max digging depth |
mm |
350 |
Cutting angle(adjustable) |
° |
55 |
Traction equipment/ Scarifier (optional) |
Stationary type/ Three teeth |
|
