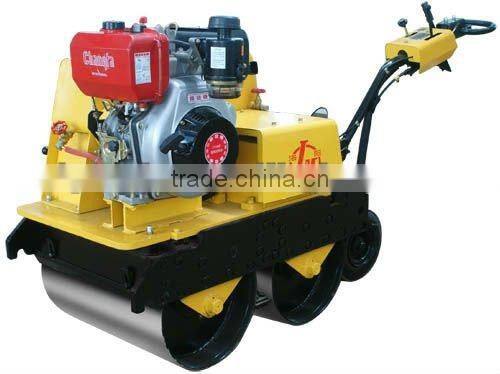

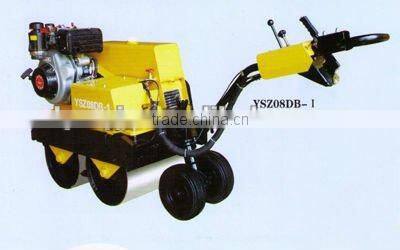

YSZ08DB-1 Small Road Roller in Construction Machinery
The Walking Behind Road Rollers are small-sized vibratory rollers which can be applied to mending and maintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn. They are especially suitable for compaction of narrow areas as pipeline channel and drainage trench etc.
Main Features:
1. Japan Robin gasoline engine with excellent starting ability, low fuel consumption and low environment emission.
2. Hydraulic travel device consists of Sauer drive component of integral micro-pump & motor with an infinitely variable speed.
3. Drum vibration with automatic turn-on/off mechanism. Operation handle integrated with travel, engine throttle and vibration controls for simple and easy operation.
4. Entire machine in compact structure and small size for compacting work of narrow sites. Foldable control bar for convenient transportation.
Technical Specifications:
Model |
Unit |
YSZ08DB-1 |
Operating mass |
kg |
770 |
Vibration amplitude |
mm |
0.25 |
Vibration frequency |
Hz |
48 |
Inspire force |
KN |
12 |
Travel speed |
km/h |
0-2.5 |
Grade ability |
% |
>25 |
Steering angle |
0 |
25 |
Turning radius |
mm |
2700 |
Wheelbase |
mm |
470 |
Ground clearance |
mm |
275 |
Total length |
mm |
2330 |
Total width |
mm |
800 |
Total height |
mm |
1050 |
Drum width |
mm |
600X405 |
Engine model |
|
CF186F |
Engine power |
kw |
5.68 |
