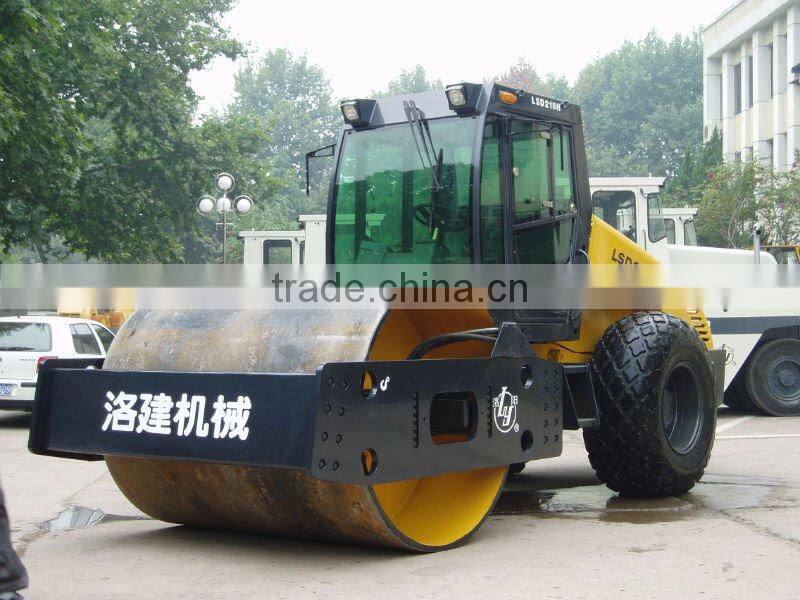

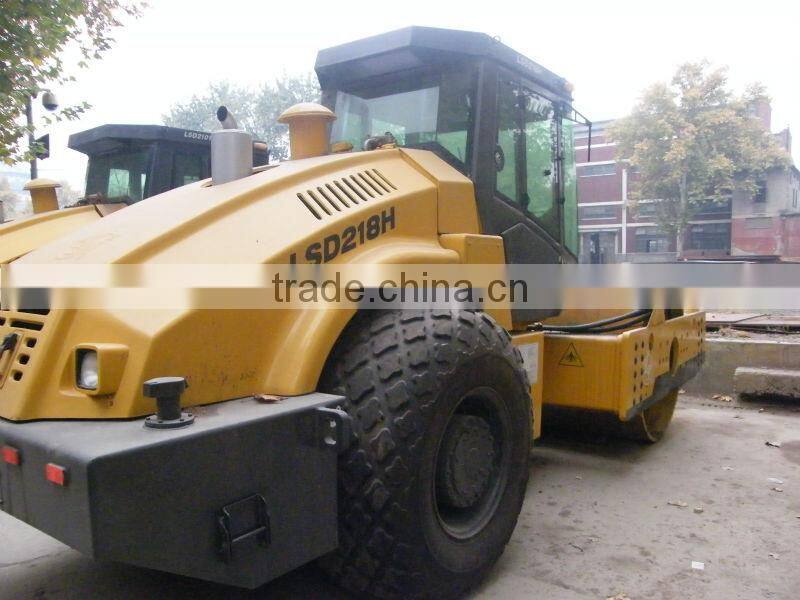

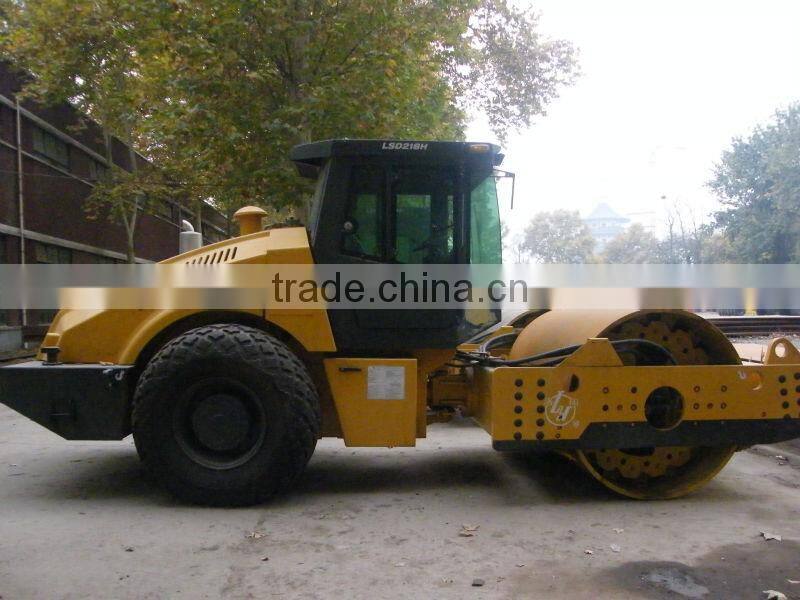

Medium Sized LSD218H 18 Tons Hydraulic Compactors
Hydraulic heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction, which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground.
Main Features:
- Cummins turbocharged diesel with rich power surplus in good performance above an elevation of 4000 meters.
- Hydrostatic wheel & drum travel drive operated by a single lever at four range infinitely variable speeds, hydraulic pump and motors made from SAUER, REXROTH international advanced companies.
- Adjustable frequency and amplitude vibration device with SAUER 90 series vibrating pump and motor.
- DANA driving axle and REXROTH planet gear reducer integrated with wet multi-disc brake with oil-cutoff braking for reliable safety.
- Unique streamline shape appearance with circle arc windscreen and curve engine hood for excellence sight.
Technical Parameters:
Model |
|
LSD218H |
Operating mass |
kg |
18000 |
Static linear load |
N/cm |
540 |
Vibration amplitude |
Mm |
2.0/1.0 |
Vibration frequency |
Hz |
28/35 |
Centrifugal force |
KN |
360/280 |
Max travel speed |
Km/h |
11.2 |
Gradeability |
% |
45 |
Turning radius |
Mm |
7000 |
Drum width |
mm |
2130 |
Wheelbase |
mm |
3148 |
Ground clearance |
mm |
472 |
Diesel model |
|
Cummins6CTA8.3 |
Diesel power |
KW |
160 |
Overall dimensions |
mm |
6005×2360×2993 |
