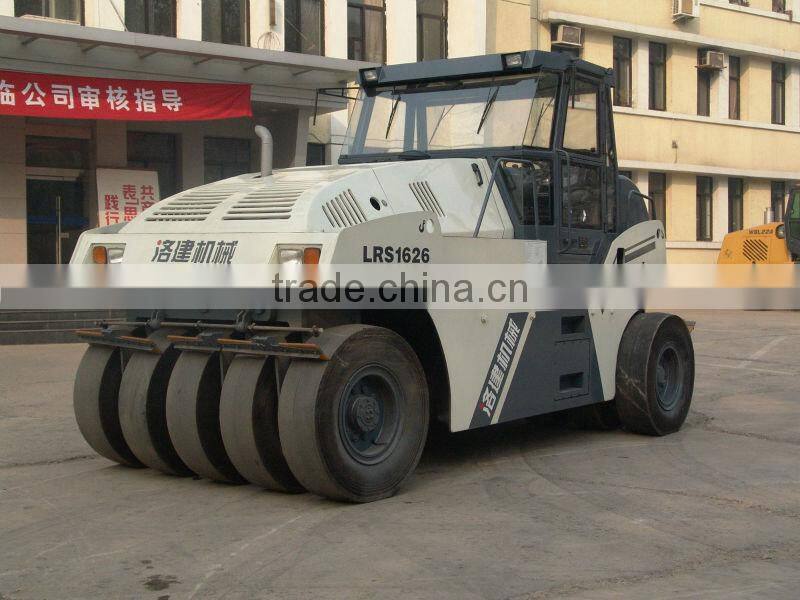

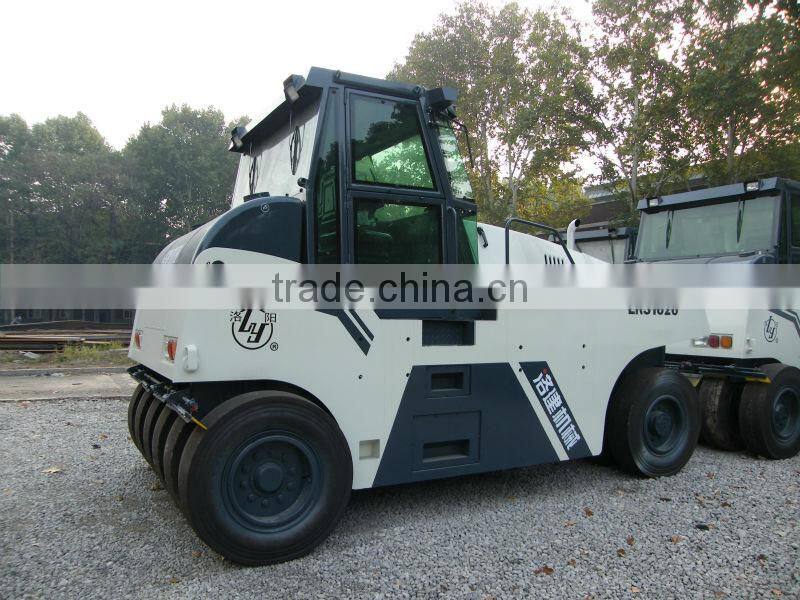

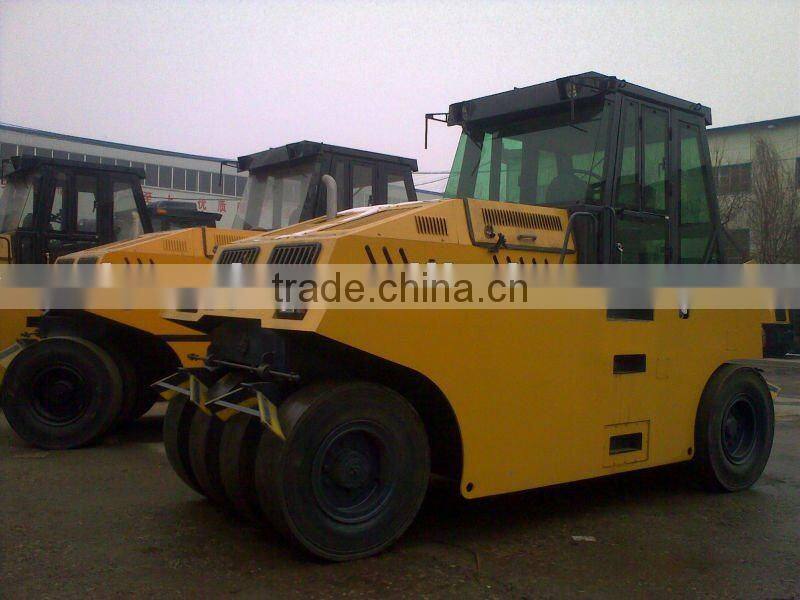

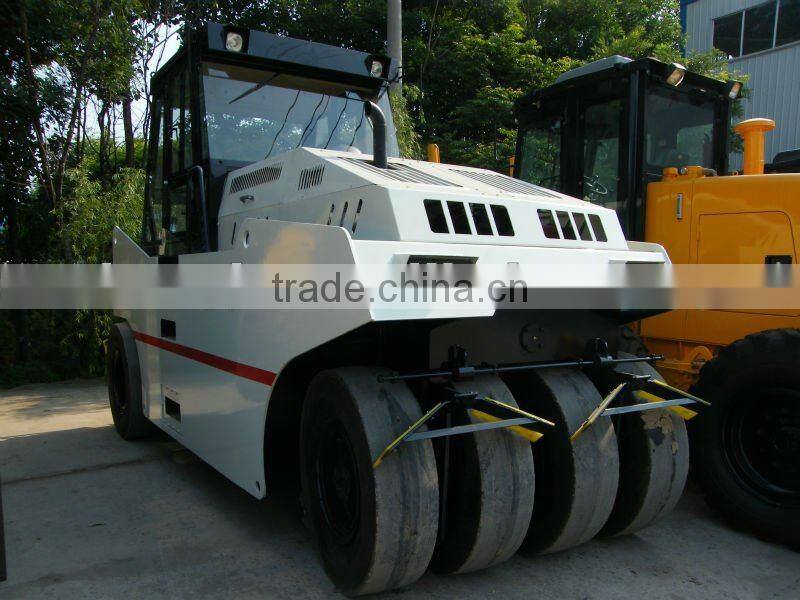

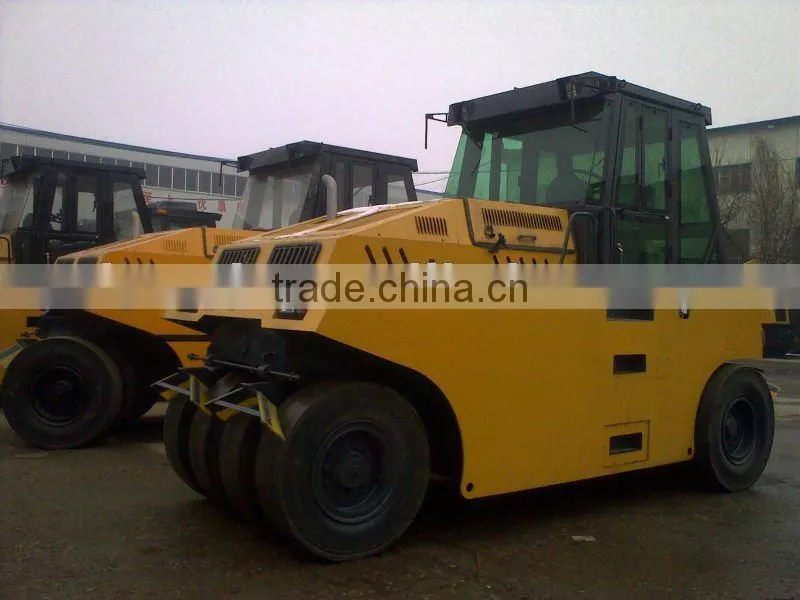

LRS1626 Pneumatic Rubber-tire Compactors
Applications:
Pneumatic smooth-tire rollers is suitable for compaction of various cohesive and non-cohesive such as sandy soil, crushed stone, stabilized
Soils, bituminous concrete and rolling cement concrete (RCC) on road surface construction, especially for final compaction of asphalt surface on high-class highway, which is super quality compaction equipments for high-class highway, airport, municipal road and industrial ground.
Main Features:
1. Powerful B series water cooled turbocharged diesel engine with advanced performance.
2. Compact gear box integrated with speed-shift synchronous unit by single control lever for advanced design and convenient control.
3. Power sprinkler system with corrosion free materials and 800L high capacity reinforced polyethylene water tank for extended operation.
4. Dual adjustable instrument panels and two control mechanisms in two operator sides for convenient operations.
5. Unique beautiful and compact appearance with lower gravity-center.
6. Spacious and closed operator’s cab with ventilating and air conditioning devices (optional).
Technical Parameters:
Model |
Unit |
LRS1626 |
Max. operating mass |
Kg |
26000 |
Min. operating mass |
Kg |
16000 |
Max.travel speed |
Km/h |
20.5 |
Tire number |
|
5+6 |
Tire contact pressure |
Kpa |
250-420 |
Turning radius |
mm |
8300 |
Rolling width |
mm |
2790 |
Wheel overlap |
mm |
50 |
Grade ability |
% |
20 |
Diesel model |
|
Cummins 6BT5.9 |
Diesel power |
KW |
110 |
Diesel speed |
r/min |
2300 |
Overall dimensions |
mm |
4874x2790x3100 |
