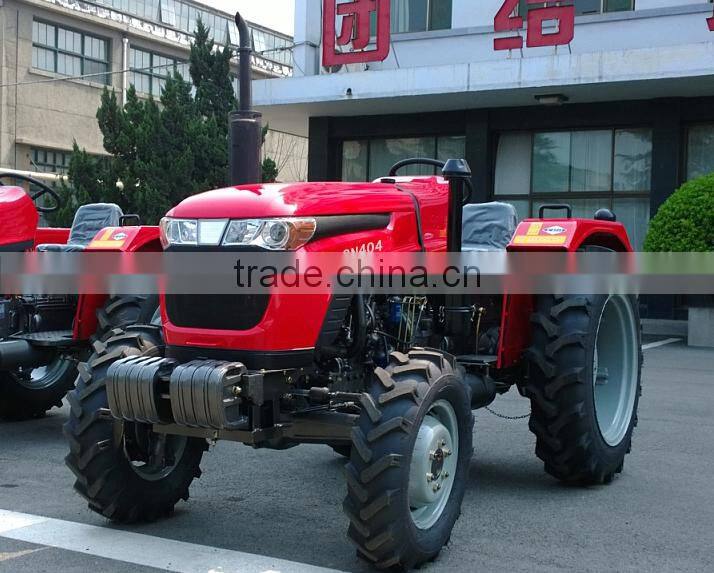

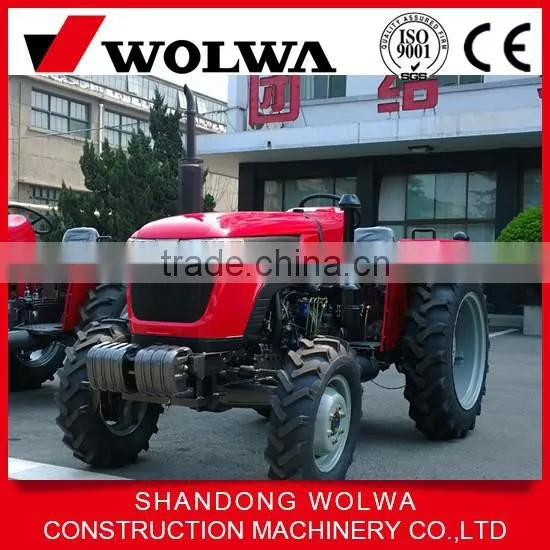

Hot Sale 4*4 4wd Multifunction Mini Tractor GN404 in China

Hot Sale 4*4 4wd Multifunction Mini Tractor GN404 in China thumbnail-1
Hot Sale 4*4 4wd Multifunction Mini Tractor GN404 in China photo-1
US$ 5,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 29.4KW
Certificate Other, ISO,CE
Brand Name WOLWA
Model Number GN404
Place of Origin Shandong, China
After-sales Service Provided Overseas service center available


Product Introduction

Specifications

Type:4*4
2)Tractor Model:GN404
3)Wheel base(mm):1950

4.1.40HP
5.Drive type:4WD
6.Single stage clutch
7.Power steering
8.(8F+2R)gear box
9.Position adjustable lifter
10.Differential lock
11.Dual speed PTO
12.Three-point suspension
13.Front bumper
14.Rear-view mirror



Characteristics:
1- Famous brand: Taishan brand with long history and good reputation;
2- Top quality: successfully passed ISO 9001 international quality certification system and China 3C quality system;
3- Famous brand engines: strong power, low oil consumption, easy starting, and good economic performance;
4- High adaptability: matches all kinds of agricultural implements;
5- Diverse gear combinations: creeping shift and shuttle shift;
6- Comfortable operation: full hydraulic system;



Specification

Model

GN404

General Specifications

Type

4×4

Overall dimensions LxWxH(mm)

3360x1490x2100

Constructional weight(kg)

1775

Rated traction force(kn)

12.0

Wheel base(mm)

1950

Front wheel tread(mm)

1285adjustable

Rear wheel tread(mm)

1205adjustable

Min.land clearance(mm)



Min.quality in use(kg)

1905

Front wheel tyre size

7.5-16

Rear wheel tyre size

11.2-28

Min.turning radius(mm) Unilateral Braking/Unilateral Nonbraking)

3.8±0.2/3.3±0.2



Engine

Model

GN490T

Type

 straight,vertical,water-cooling,four stroke

12 hours power(kw)

29.4

Rated Speed(r/min)

2300

Fuel consumption(g/kw.h)

≤245

Max.torque(N.m)

≥165

Speed of Max.torque(r/min

≤1725

BorexStroke(mm)

φ90×105

Diesel Consumption(g/kW.h)

≤2.04

Starting mode

 electric start

Break System

Service Brake

  mechanical,wet,disc

Parking Brake

 locking pedal type

Transmission

Clutch

 Dry type, one stage(dual stage is optional)

Gear box

 Spur gear (4+1) plain compound

Steering

 cam and roller steering gear

Steering type

 front wheel steering

Main Drive

 spiral bevel gear

Differential Mechanism

  2 bevel planet gear, closed

Final Drive

  external mesh spurtype

Operating System

Lifter tilling depth control

  position adjustment

Max.lifting capacity(kn)

≥6.62

Suspension type

               Postpositional,Tree-point,I category

Speed of P.T.O.(r/min)

(540,1000), or(720,1000) (540,720)

Type of P.T.O.

 semiindependent

Traction Equipment

  fixed or swing draw bar

Optional Devices

Air brake, dual-stage clutch, Rops and Canopy, Draft and position adjustable lifter
