Product Introduction
GN300 tractor Specifications
1)Type:4*2
2)Tractor Model:GN300
3)Wheel base(mm):1705
Specification
Model |
GN300 |
|
General Specifications |
Type |
4×2 |
Overall dimensions LxWxH(mm) |
3105×1510×2105 |
|
Constructional weight(kg) |
1260 |
|
Rated traction force(kn) |
6.4 |
|
Wheel base(mm) |
1705 |
|
Front wheel tread(mm) |
1125adjustable |
|
Rear wheel tread(mm) |
1170adjustable |
|
Min.land clearance(mm) |
440 |
|
Min.quality in use(kg) |
1390 |
|
Front wheel tyre size |
5.0-15 |
|
Rear wheel tyre size |
11.2-24 |
|
Engine |
Model |
SD2100TA |
Type |
straight,vertical,water-cooling,four stroke |
|
12 hours power(kw) |
22.1 |
|
Rated Speed(r/min) |
2300 |
|
Fuel consumption(g/kw.h) |
≤250 |
|
Max.torque(N.m) |
≥109.8 |
|
Speed of Max.torque(r/min) |
≤1650 |
|
BorexStroke(mm) |
φ100×115 |
|
Diesel Consumption(g/kW.h) |
≤1.84 |
|
Starting mode |
electric start |
|
Break System |
Service Brake |
mechanical,wet,disc |
Parking Brake |
locking pedal type |
|
Transmission |
Clutch |
Dry type, one stage(dual stage is optional) |
Gear box |
Spur gear (4+1) plain compound |
|
Steering |
cam and roller steering gear |
|
Steering type |
front wheel steering |
|
Main Drive |
spiral bevel gear |
|
Differential Mechanism |
2 bevel planet gear, closed |
|
Final Drive |
external mesh spurtype |
|
Operating System |
Lifter tilling depth control |
position adjustment |
Max.lifting capacity(kn) |
≥4.95 |
|
Suspension type |
Postpositional,Tree-point,I category |
|
Speed of P.T.O.(r/min) |
(540,1000), or(720,1000) (540,720) |
|
Type of P.T.O. |
semiindependent |
|
Traction Equipment |
fixed or swing draw bar |
|
Optional Devices |
Air brake, dual-stage clutch, Rops and Canopy |
|

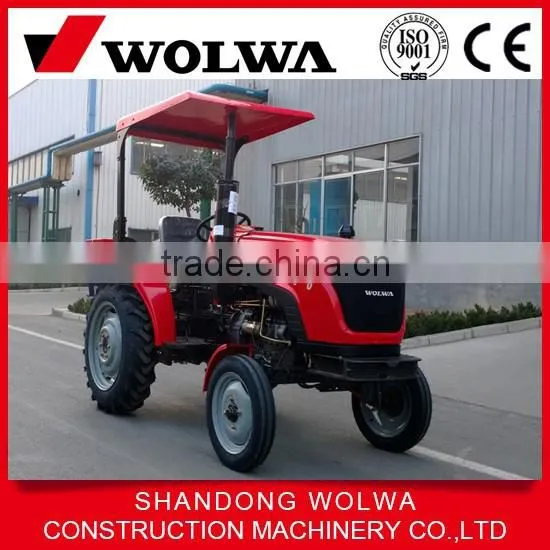

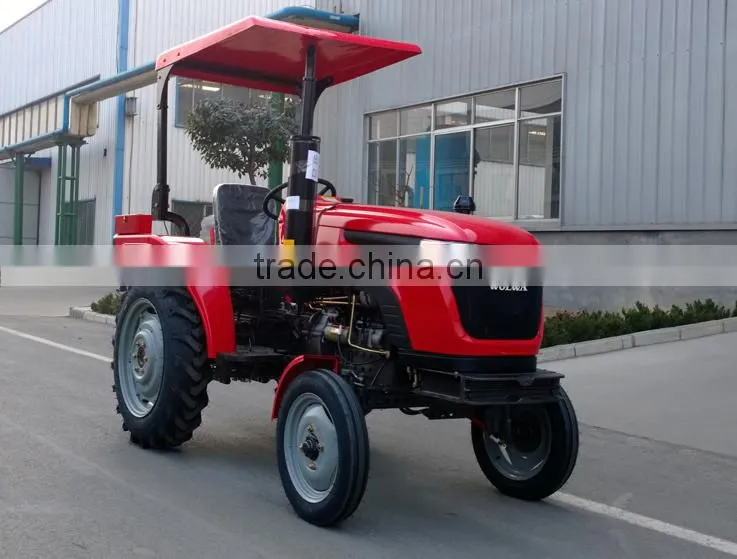

Figure Photos
