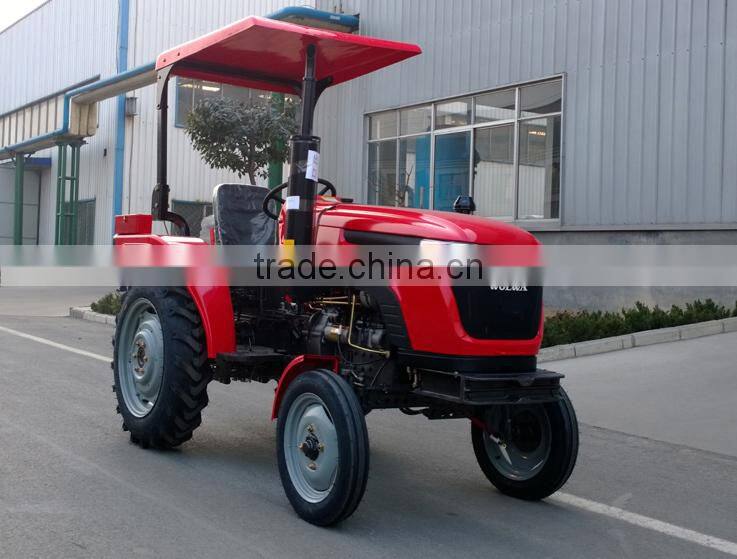

china factory supply 22KW 2wd mini agricultural tractor
- 100 Set / Sets per Month
- Qindao
- Credit Card
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 2WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 22KW |
Certificate: | Other, ISO,CE | Brand Name: | WOLWA | Model Number: | GN300 |
Place of Origin: | Shandong, China | After-sales Service Provided: | Overseas service center available |
Product Description
Product Introduction
GN300 tractor Specifications
1)Type:4*2
2)Tractor Model:GN300
3)Wheel base(mm):1705
Specification
Model | GN300 | |
General Specifications | Type | 4×2 |
Overall dimensions LxWxH(mm) | 3105×1510×2105 | |
Constructional weight(kg) | 1260 | |
Rated traction force(kn) | 6.4 | |
Wheel base(mm) | 1705 | |
Front wheel tread(mm) | 1125adjustable | |
Rear wheel tread(mm) | 1170adjustable | |
Min.land clearance(mm) | 440 | |
Min.quality in use(kg) | 1390 | |
Front wheel tyre size | 5.0-15 | |
Rear wheel tyre size | 11.2-24 |
Engine | Model | SD2100TA |
Type | straight,vertical,water-cooling,four stroke | |
12 hours power(kw) | 22.1 | |
Rated Speed(r/min) | 2300 | |
Fuel consumption(g/kw.h) | ≤250 | |
Max.torque(N.m) | ≥109.8 | |
Speed of Max.torque(r/min) | ≤1650 | |
BorexStroke(mm) | φ100×115 | |
Diesel Consumption(g/kW.h) | ≤1.84 | |
Starting mode | electric start | |
Break System | Service Brake | mechanical,wet,disc |
Parking Brake | locking pedal type | |
Transmission | Clutch | Dry type, one stage(dual stage is optional) |
Gear box | Spur gear (4+1) plain compound | |
Steering | cam and roller steering gear | |
Steering type | front wheel steering | |
Main Drive | spiral bevel gear | |
Differential Mechanism | 2 bevel planet gear, closed | |
Final Drive | external mesh spurtype | |
Operating System | Lifter tilling depth control | position adjustment |
Max.lifting capacity(kn) | ≥4.95 | |
Suspension type | Postpositional,Tree-point,I category | |
Speed of P.T.O.(r/min) | (540,1000), or(720,1000) (540,720) | |
Type of P.T.O. | semiindependent | |
Traction Equipment | fixed or swing draw bar | |
Optional Devices | Air brake, dual-stage clutch, Rops and Canopy |
Figure Photos
Company Information
Shandong Wolwa Construction Machinery Co., Ltd is an advanced technology industry integrating research and development, production and sales. For ten years, Wolwa Group, with the goal of "Forging the first class brand, Being the pioneer of the industry", adheres to scientific and technological innovation, and walks on the way to different development. Relying on its advantage in talent, technology and capital, the Wolwa has also opened a new chapter in high-end equipment manufacturing.
