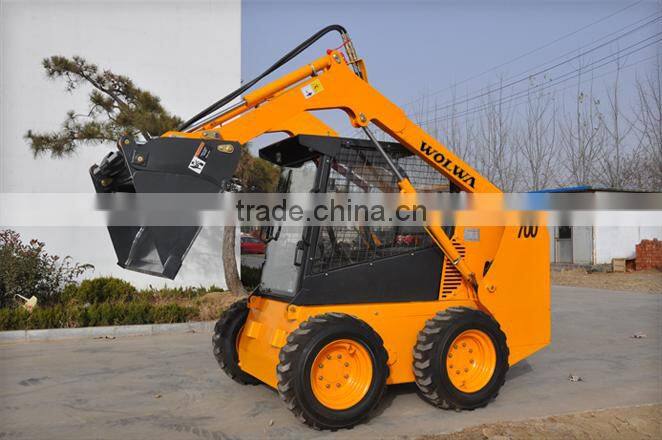

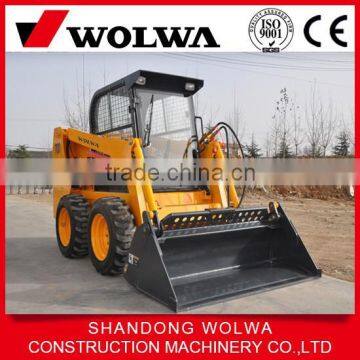

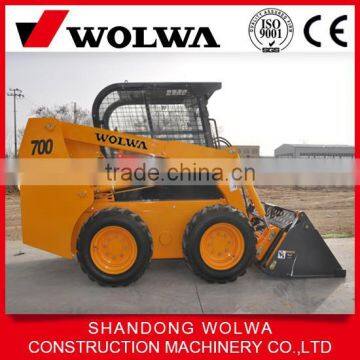

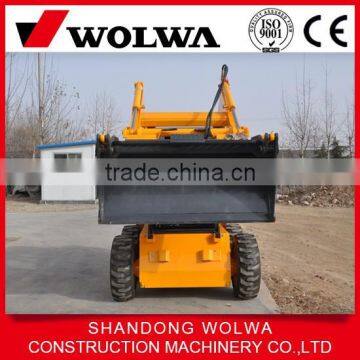

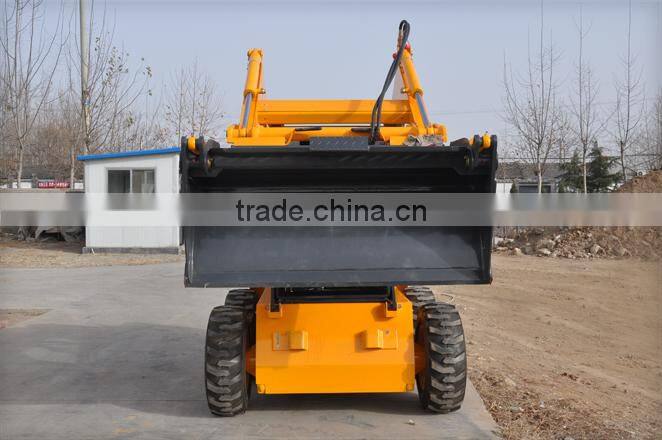

china wolwa brand skid steer loader
skip steer loader GN700 pordcut characteristic
1,Advanced and efficient transmission output type, duplex pump connect motor directly
2,integral structure frame, more strength higher stabe , rear radiator, paratactic type cooling effect is batter.
3,With domestic famous brand engine, powerful drive energy conservation and environmental protection
4,Adopt American Danfoss hydraulic system, the hole hydraulic system is stable and reliable
5,Work system adopts pedal operation,drive system USES double hands according with international operation habit
6,Cab with large angle tip-back design ,more maintenance space,back cover ,upper canopy could open up. Maintenance more convenient,A person easily done
7,high strength cab meet ROPS/FOPS international safety standard , driving space bigger and more comfortable
8,Adopting integrated control panel design, the overall performance parameters of the be clear at a glance, make sure that you can comprehensive mastery the machine when operating
9,Hydraulic operating system, the use of electronic self-locking interlock design, reduce the mistake and operation more safer
10,Dual accelerator control, convenient manual accelerator , feet accelerator is more suitable for your daily operation habit
11,Adopt the internationally quick change device can be quick and convenient replacement of all sorts of affix, hydraulic quick change connectors can matching with most manufacturers affix or body
12,Configurable multiple appendage use
13,Using radial lifting work arm, higher efficiency
| HY700 Outline dimension | HY700 parameters | ||||||
| NO | Item | size | NO | Item | |||
| 1 | Max working height(A) | 3490mm | 1 | Rate load | 700KG | ||
| 2 | Max pin height(B) | 3028mm | 2 | Total weight | |||
| 3 | Max level bucket height(C) | 2814mm | 3 | Engine | 498BPG | ||
| 4 | Max dump height(D) | 2266mm | 4 | Rotating speed | 2500r/min | ||
| 5 | >The highest point of discharging distance(F) | 437mm | 5 | Engine type | 4 cylinder,water cool,4ahead reach | ||
| 6 | Wheelbase(G) | 1044mm | 6 | Power | 45KW | ||
| 7 | Total height(H) | 1979mm | 7 | Standard fuel consumption | <=240g/KW·h | ||
| 8 | The height from the ground(J) | 196mm | 8 | Maximum torque fuel consumption | <=238g/KW·h | ||
| 9 | Length without bucket(K) | 2621mm | 9 | Noise | <=117dB(A) | ||
| 10 | Total length(L) | 3400mm | 10 | Generator power | 500W | ||
| 11 | bucket width(M) | 1720mm | 11 | Voltage | 12V | ||
| 12 | Total width(W) | 1665mm | 12 | Battery | 105AH | ||
| 13 | wheelspan(P) | 1425mm | 13 | Speed | 0-10 Km/h | ||
| 14 | Tire thickness(N) | 240mm | 14 | Drive type | Static pressure four-wheel drive | ||
| 15 | Departure angle(α) | 19° | 15 | Tire | 10-16.5 | ||
| 16 | dump angle(β) | 41° | 16 | Hydraulic pump flow | 110L/min | ||
| 17 | Rollback of bucket on ground(θ) | 18° | 17 | Hydraulic pump flow | 50L/min | ||
| 18 | Mini turning radius(R) | 2056mm | 18 | Pressure | 15MP | ||
| 19 | Fuel tank capacity | 103L | |||||
| 20 | Lube tank capacity | 63L | |||||
| 22 | Double piston pump | SAUER | |||||
We are established in 2005,we are devoted ourselves to machine manufacturing for ten years long.
We are professional manufacturer and exporter concerned with the design.Our factory covering an
qrea of 88,000 square meters,now we have over 1,000 employees.We have already received ISO9001
certification.All of our pruducts comply with international quality standards and are greatly appreciated in
a variety of markets around the world.
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
If you are interested in us,you can contact with us,we can give you more demails about our pruducts.We are also pleased to welcome you to visit our factory.^^
contact:
skype:wolwahannah
QQ:2745940132
TEL:86-15205378664
