wolwa brand mini skid steer loader with various attachment for sale

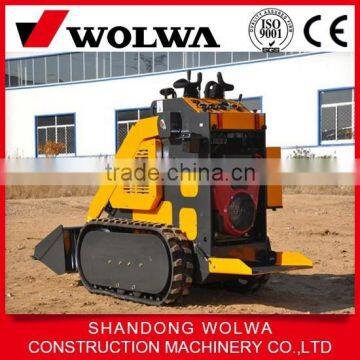

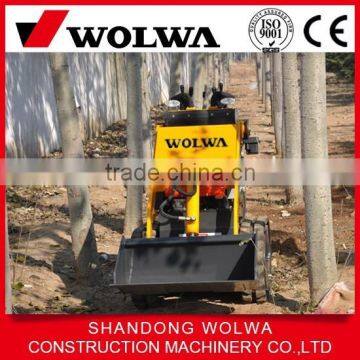

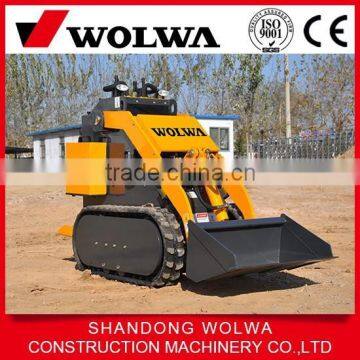

Small skid loader GN280 introduction:
Small skid loader GN280 is a mechanical equipment with many uses. The fuselage is narrow, easy handling, can easily and quickly hook up a variety of different functions to realize all kinds of work widely used in park, courtyard, lawn, garden or any other place in the environment.
Small skid loader GN280 feature:
1.Small skid loader GN280 easy to operate
Double handle finish walking, lift and skip movements
Piston motor smoothly
Four-wheel drive adapt to various environment
.Many forms of pedals, let the operation safer and more convenient
Both servo and standard operation mode
2.Small skid loader GN280 easy maintenance
Oil mouth in car in vitro, convenient to replace air filter, oil, filter, spark plug
The guard plate is convenient, the cover can be opened
3.Small slide loader GN280 can be configurated with variety of affix, and is interchangeable between each model.
4.International famous brand engine, stable and reliable.
5. small slide loader GN380 many kinds of tires and the track model chosen, more resilient.
6.GN280 mini loader is more narrow, only 800 mm wide. Can through narrow places, and have big fuel tank and the lifting force.
7.Small skid loader can do much simplified manual labor, improve efficiency
| item | GN280 | ||||
| crawler type | with solid tire | with ordinary tire | with widen tire | ||
| ing height(H3) | 2363 mm | 2330 mm | 2370 mm | 2370 mm | 2143 mm |
| Max.pin height(H2) | 1800 mm | 1767 mm | 1807 mm | 1807 mm | 1796 mm |
| Max.discharge height(H1) | 1412 mm | 1380 | 1420 | 1420 | 1409 |
| Top dicharge distance(E) | 533 mm | 485 mm | 525 mm | 525 mm | 514 mm |
| Ma.discharge angle(α3) | 29° | 29° | 29° | 29° | 29° |
| collecting bucket angle(α2) | 36° | 36° | 36° | 36° | 36° |
| departure angle(α1) | 13° | 10° | 14° | 14° | 12.6° |
| total height(H) | 1302 mm | 1269 mm | 1309 mm | 1309 mm | 1297 mm |
| ground clearance(H1) | 143 mm | 110 mm | 150 mm | 150 mm | 138 mm |
| axle base(L1) | 652 mm | 652 mm | 652 mm | 652 mm | 652 mm |
| length without bucket(L3) | 1752 mm | 1752 mm | 1752 mm | 1752 mm | 1752 mm |
| toal width(B2) | 800 mm | 873mm | 876mm | 1025mm | 1000 mm |
| bucket width(B1) | 820 mm | 820 mm | 820 mm | 820 mm | 820 mm |
| total length with bucket | 2200 mm | 2200 mm | 2200 mm | 2200 mm | 2200 mm |
| front turn radius(R) | 1440 mm | 1440 mm | 1440 mm | 1440mm | 1440 mm |
| item | GN280 | ||||
| rated power(KW) | 15.435KW(21HP) | ||||
| speed(rpm) | 3600 | ||||
| noise(Db) | ≤95 | ||||
| hydraulic system | system pressure(Mpa) | 17 | |||
| working hour(s) | lift | turn | down | ||
| 3.31 | 0.72 | 1.95 | |||
| parameter | metric | ||||
| 165 Kg | |||||
| 0.12 m3 | |||||
| Max.lifting force | 375 Kg | ||||
| speed | 0-5.5 Km/h | ||||
| 794 Kg | |||||
| 740Kg | |||||
| 704 Kg | |||||
| crawler type | 855kg | ||||
| tire model | solid tire | 16×6-8 | |||
| ordinary tire | 5.00-8 | ||||
| widen tire | KT-302 18*9.5-8 6P/TL | ||||
| 18*6.5-8 | |||||
| tire | 4.33R-8 | ||||
| 3.50D | |||||
| widen tire | 8*6.5 | ||||
attachments
FACTORY INTRODUCTION
XT INTRODUCE
WOLWA GROUP was established in 2005,which is a advanced technology equipment manufacturer.Its products include construction machinery,hydraylic component,mine equipment,pipe etc.We have 5 subsidiaries , include Wolwa construction machinery company,Dorson hydraulic component company,Guoneng structure part company,Wolwa pipe company,Jinsheng coal company.The capital of WOLWA GROUP exceeds RMB 2.5 billion.More than 800000 square meters international advanced workshopand more than 8000 square meters technology research center, produce more than 10000 complete machines and 20000 hydraulic components per year.Wolwa group has a provincial technology center and was the awarded of "Top 100 private enterprises in Shandong province",distinctive enterprise of Shandong ,National advanced technology enterprise,which is also a mainly supported enterprise by Jining government.
In the last 10 years,The aim of WOLWA GROUP is always "To be the leader of the construction industry,become a international famous brand" by keep on technological innovation.WOLWA brand series of wheeled excavator is applied to construction ,port , municipal works,park,environmental health,water conservancy,agriculture etc by it's intelligent ,efficient and multifunction features.WOLWA GROUP occupies the top level of market share of Chinese private enterprises.Dorson company -- the advanced hydraulic component company becomes a very important partner of many famous companies like Sanyi,Zoomlion ,Liugong,Xcmg,Beijing Hyundai,Sumitomo by the advantages of R&D.We got more than RMB 2.5 billion profit,taxes payment was more than RMB 3000 million.The main economic target were achieved double growth than 2013.
Based on the advantages of firm foundation and talents,technology,fund, WOLWA GROUP opened a new chapter of advanced equipment manufacturing.On Aug 2012,WOLWA GROUP undertaked the National "12th five" project,The ice ice breaker which produced by WOLWA was tested in the Batou section of Yellow river successfully .We finished the batch production of icebreaker in 2014.WOLWA GROUP - Shandong university High-tech information industry park which was invested more than 3 billion CNY will complete recently.Many kinds of new technology equipments will be developed in the park,include amphibious ice breaker,Sea wave power generation,mobile water treatment truck etc.After the park put on production,the expected amount of sales income will exceed RMB10 billion ,then WOLWA GROUP will become a international famous large high-tech equipment manufacturer in the world.
our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
contact:
skype:wolwahannah
QQ:2745940132
TEL:86-15205378664
