china factory supply mini backhoe loader with various attachments for sale

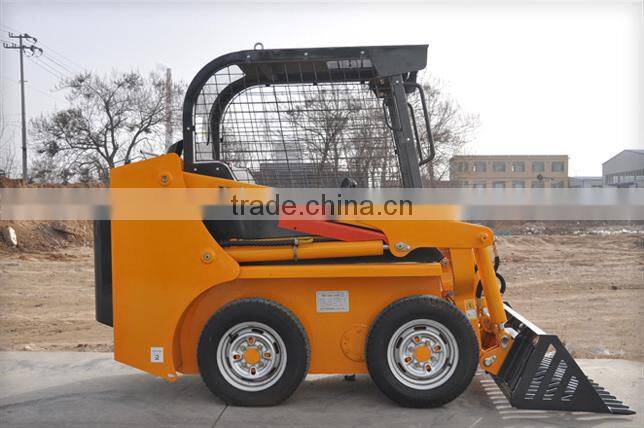

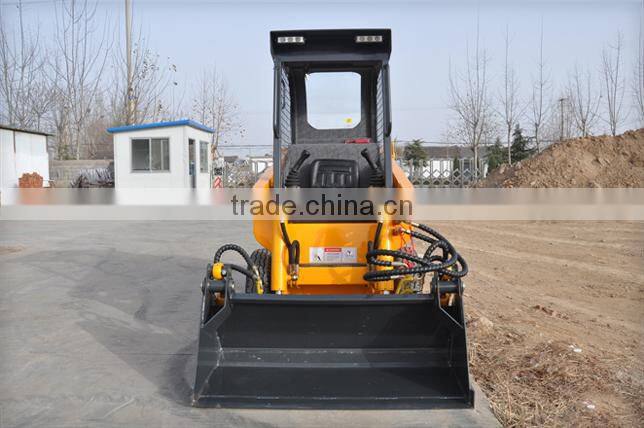

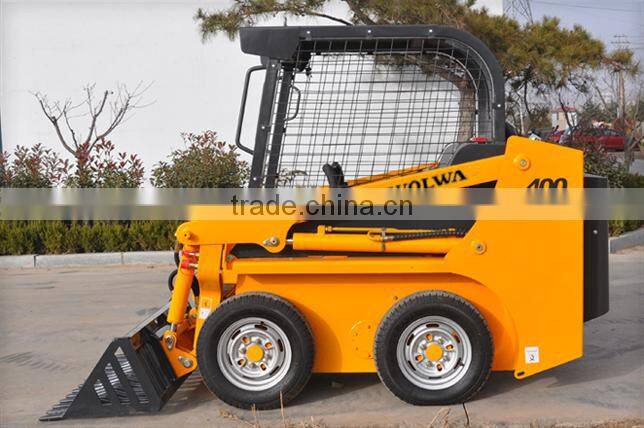

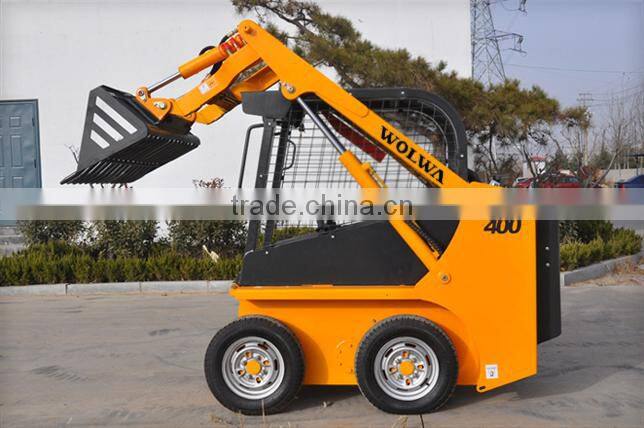

GN400 skip steer loader introduction:
GN400 skip steer loader is a small skip steer loader, the body is only 1.729 meters, the minimum turning radius less than 2 meters, suitable for small space, widely used in the botanical garden, pastures and small projects.
| GN400 outline dimension | ||
| NO | Item | size |
| 1 | Max working height(H3) | 2651mm |
| 2 | Max pin height(H2) | 2301mm |
| 3 | Max dump height(H1) | 1710mm |
| 4 | The highest point of discharging distance(L3) | 301mm |
| 5 | Wheelbase(L) | 800mm |
| 6 | Cab height(H) | 1729mm |
| 7 | The height from the ground(F) | 141mm |
| 8 | Length without bucket(L1) | 2042mm |
| 9 | Total length(L) | 2655mm |
| 10 | bucket width(K) | 930mm |
| 11 | Total width(W)<, /o:p> | 928mm |
| 12 | Tread width,centerline to centerline(P) | 784mm |
| 13 | Tire width(W1) | 175mm |
| 14 | Daparture angle(γ) | 20° |
| 15 | Dumping angle at max height(β) | 41° |
| 16 | Rollback of bucket on ground(α) | 23° |
| 17 | Min turning radius(R) | 1908 |
| GN400 specification | ||
| NO | Item | parameter |
| 1 | Rate load | 400KG |
| 2 | Total weight | 1400KG |
| 3 | Engine | D1803 KUBOTA |
| 4 | Rotating speed | 2200r/min |
| 5 | Engine type | Water cool cylinder three |
| 6 | Power | 22.8KW(31HP) |
| 7 | speed | 0-8Km/h |
| 8 | Dumping angle | 41° |
| 9 | Turn angle | 360°Steering in place |
| 10 | Departure angle | 24° |
| 11 | Drive type | 4WD |
| 12 | Bucket capacity | 0.2m3 |
| 13 | Tire | 145R12C |
| 14 | Hydraulic pump flow | 63L/min |
| 15 | Pressure | 17MP |
| 16 | fuel tank capacity | 42L |
| 17 | Hydraulic oil tank capacity | 42L |
| 18 | Battery | 36AH |
| 19 | Electric current | 36A |
| 20 | Voltage | 12V |
| 21 | Noise | <=107dB(A) |
| 23 | Moter | Heron |

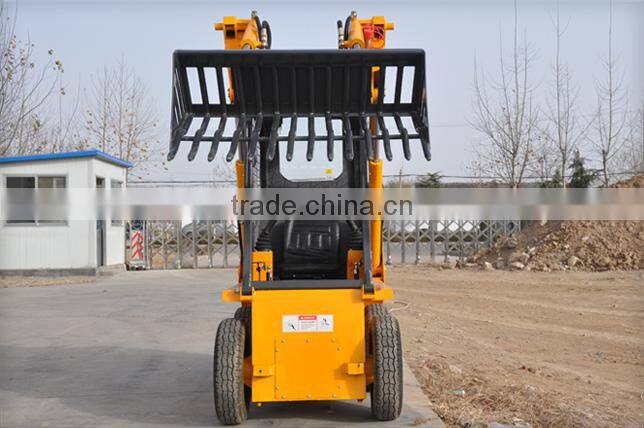

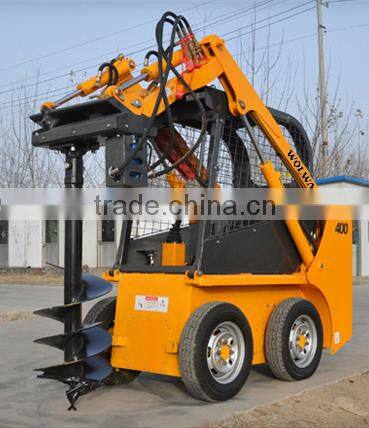

with various attachment
FACTORY INTRODUCTION
XT INTRODUCE
WOLWA GROUP was established in 2005,which is a advanced technology equipment manufacturer.Its products include construction machinery,hydraylic component,mine equipment,pipe etc.We have 5 subsidiaries , include Wolwa construction machinery company,Dorson hydraulic component company,Guoneng structure part company,Wolwa pipe company,Jinsheng coal company.The capital of WOLWA GROUP exceeds RMB 2.5 billion.More than 800000 square meters international advanced workshopand more than 8000 square meters technology research center, produce more than 10000 complete machines and 20000 hydraulic components per year.Wolwa group has a provincial technology center and was the awarded of "Top 100 private enterprises in Shandong province",distinctive enterprise of Shandong ,National advanced technology enterprise,which is also a mainly supported enterprise by Jining government.
In the last 10 years,The aim of WOLWA GROUP is always "To be the leader of the construction industry,become a international famous brand" by keep on technological innovation.WOLWA brand series of wheeled excavator is applied to construction ,port , municipal works,park,environmental health,water conservancy,agriculture etc by it's intelligent ,efficient and multifunction features.WOLWA GROUP occupies the top level of market share of Chinese private enterprises.Dorson company -- the advanced hydraulic component company becomes a very important partner of many famous companies like Sanyi,Zoomlion ,Liugong,Xcmg,Beijing Hyundai,Sumitomo by the advantages of R&D.We got more than RMB 2.5 billion profit,taxes payment was more than RMB 3000 million.The main economic target were achieved double growth than 2013.
Based on the advantages of firm foundation and talents,technology,fund, WOLWA GROUP opened a new chapter of advanced equipment manufacturing.On Aug 2012,WOLWA GROUP undertaked the National "12th five" project,The ice ice breaker which produced by WOLWA was tested in the Batou section of Yellow river successfully .We finished the batch production of icebreaker in 2014.WOLWA GROUP - Shandong university High-tech information industry park which was invested more than 3 billion CNY will complete recently.Many kinds of new technology equipments will be developed in the park,include amphibious ice breaker,Sea wave power generation,mobile water treatment truck etc.After the park put on production,the expected amount of sales income will exceed RMB10 billion ,then WOLWA GROUP will become a international famous large high-tech equipment manufacturer in the world.
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
If you are interested in us,you can contact with us,we can give you more demails about our pruducts.We are also pleased to welcome you to visit our factory.^^
