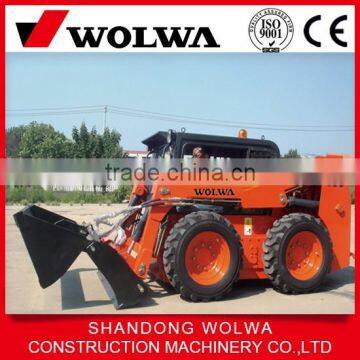

small skid steer loader from china
skip steer loader GN850(push sand in shipyard)introduction
GN850 skip steer loader with high speed , save operation time.place sliding steering,small steering radius.
Easy to operate,Very suitable for port clearance, clear sand, clear powder,civicism , highway maintenance
and so on.The loader is multiple use,you can loading,digging, furrowing, milling planer, push the snow,
bulldozing, fork, cleaning, hole, broken, wood and other functions with different tools.Mainly used in narrow
space,Job content change frequent occasions,At the same time for large engineering machinery construction
machinery ancillary equipment used.Especially suitable for such as urban infrastructure, roads or construction
sites, workshop, warehouse, dock, the ship deck cabin even narrow space in the homework.And for large
engineering machinery logistics, land clearing and the project finish Such as homework.
skip steer loader GN850(push sand in shipyard)characteristic
(1)Tiny body. Height is only 1.48 meters, can enter various low environment
(2)Powerful, 45 kw engine, can meet various requirements
(3)Multi-function. Can replace a variety of professional job attachment, realize shovel, forklift, cleaning,
and in addition to the snow and ice, and other operations
(4)High efficiency and in situ 360 ° steering. Artificial 20-30 people per hour deoxidization efficiency 4 hours work
(5)Good cost performance and quick return of investment. Every day, save the labor cost is about 2000 yuan
(6)Three years service after sale , regular tracking service, lifelong maintenance, service guaranteed
| Max working height(A) | 3660mm | 144.1inch |
| Max pin height(B) | 2840mm | 111.8inch |
| Max dumping height(C) | 2220mm | 86.6inch |
| Max Dumping distance(D) | 300mm | 11.8inch |
| Max Dumping Angle | 39o | |
| Rollback of bucket on ground(θ) | ||
| Departure angle(α) | ||
| Total height(H) | 1482 mm | 58.3inch |
| Ground clearance(F) | 135mm | 5.3nch |
| Wheel base(G) | 1044mm | 41.1inch |
| Overall length without bucket(J) | 2600 mm | 102.4inch |
| Total width(W) | 1678mm | 66.1inch |
| Tread width(centerline to centerline) | 1394 mm | 54.9inch |
| Bucket width(K) | 1720 mm | 67.7inch |
| Total length(L) | 3300 mm | 129.9inch |
| MODEL | GN850 | ||||
| Engine | Rated power KW | 45 | |||
| Rated speed rpm | 2500 | ||||
| Noise | Inside of cab | ≤92 | |||
| Outside of cab | 106 | ||||
| Hydraulic system | Hydraulic pressure | 14.2MPa | |||
| Cycle time (s) | Raise | dump | Lower | ||
| 5.56 | 2.16 | 5.03 | |||
| Operating load(kg) | 850(Kg) | 1874lb | |||
| Bucket capacity(m3) | 0.39(m3) | 17.3(ft 3) | |||
| Tipping load | 1534(Kg) | 3374.8lb | |||
| Bucket Break-out force | 1380(Kg) | 3036lb | |||
| Max Lifting Force | 1934(Kg) | 4254.8lb | |||
| Operating weight | 2840(Kg) | 6248lb | |||
| Speed (km/h) | 0~9.6 (km/h) | 0~6(mile/h) | |||
| Tire | 10.0-16.5 | ||||
We are established in 2005,we are devoted ourselves to machine manufacturing for ten years long.
We are professional manufacturer and exporter concerned with the design.Our factory covering an
qrea of 88,000 square meters,now we have over 1,000 employees.We have already received ISO9001
certification.All of our pruducts comply with international quality standards and are greatly appreciated in
a variety of markets around the world.
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
If you are interested in us,you can contact with us,we can give you more demails about our pruducts.We are also pleased to welcome you to visit our factory.^^
contact:
skype:wolwahannah
QQ:2745940132
TEL:86-15205378664
