High Quality 850kg Mini Backhoe Loader

High Quality 850kg Mini Backhoe Loader thumbnail-1
High Quality 850kg Mini Backhoe Loader photo-1
US$ 500 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Wolwa
Model Number:
GN850
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name Wolwa
Model Number GN850
Place of Origin Shandong, China
Type Skid Steer Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 3300*1678*1482mm
Rated Load 850kg
Certification CE & ISO9001:2008
Warranty 1year
After-sales Service Provided Overseas third-party support available

Product Description

High Quality 850kg Mini Backhoe Loader

GN850 skid steer loader with high speed , save operation time.place sliding steering,small steering

radius.Easy to operate,Very suitable for port clearance, clear sand, clear powder,civicism , highway

maintenance and so on.The loader is multiple use,you can loading,digging, furrowing, milling planer,

push the snow, bulldozing, fork, cleaning, hole, broken, wood and other functions with different tools.

Mainly used in narrow space,Job content change frequent occasions,At the same time for large

engineering machinery construction machinery ancillary equipment used.Especially suitable for such

as urban infrastructure, roads or construction sites, workshop, warehouse, dock, the ship deck cabin

even narrow space in the homework.And for large engineering machinery logistics, land clearing and

the project finish Such as homework.



High Quality 850kg Mini Backhoe Loader characteristic

(1)Tiny body. Height is only 1.48 meters, can enter various low environment
(2)Powerful, 45 kw engine, can meet various requirements
(3)Mult-ifunction. Can replace a variety of professional job attachment, realize shovel, forklift,

cleaning, and in addition to the snow and ice, and other operations

(4)High efficiency and in suit 360 ° steering. Artificial 20-30 people per hour deoxidization efficiency 4 hours work
(5)Good cost performance and quick return of investment. Every day, save the labor cost is about

2000 yuan
(6)Three years service after sale  , regular tracking service, lifelong maintenance, service guaranteed

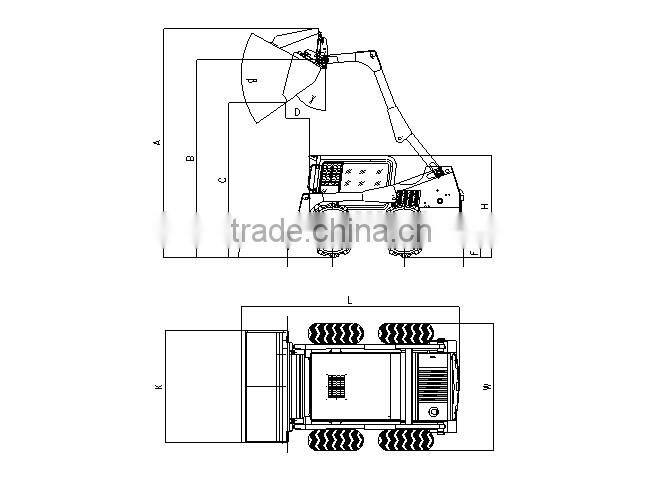

High Quality 850kg Mini Backhoe Loader technical parameters

High Quality 850kg Mini Backhoe Loader



Max. Working Height(A)

3660mm

144.1inch

Max. Pin Height(B)

2840mm

111.8inch

Max. Dumping Height(C)

2220mm

86.6inch

Max. Dumping Distance(D)

300mm

11.8inch

Max. Dumping Angle

39°


Rollback of Bucket on Ground(θ)



Departure Angle(α)



Total Height(H)

1482 mm

58.3inch

Ground Clearance(F)

135mm

5.3nch

Wheelbase(G)

1044mm

41.1inch

Overall Length Without Bucket(J)

2600 mm

102.4inch

Total Width(W)

1678mm

66.1inch

Tread Width(centerline to centerline)

1394 mm

54.9inch

Bucket Width(K)

1720 mm

67.7inch

Total Length(L)

3300 mm

129.9inch



MODEL

GN850

Engine

Rated Power

45kw

Rated Speed

2500rpm

Noise

Inside of Cab

≤92db

Outside of Cab

106db

Hydraulic System

Hydraulic Pressure

14.2MPa

Cycle Time

Raise

Dump

Lower

5.56s

2.16s

5.03s


Operating Load

850kg

1874lb


Bucket Capacity

0.39m³

17.3ft­ 3


Tipping Load

1534kg

3374.8lb


Bucket Break-out Force

1380kg

3036lb


Max Lifting Force

1934kg

4254.8lb


Operating Weight

2840Kg

6248lb


Speed

0~9.6 km/h

0~6mile/h

Tire

10.0-16.5

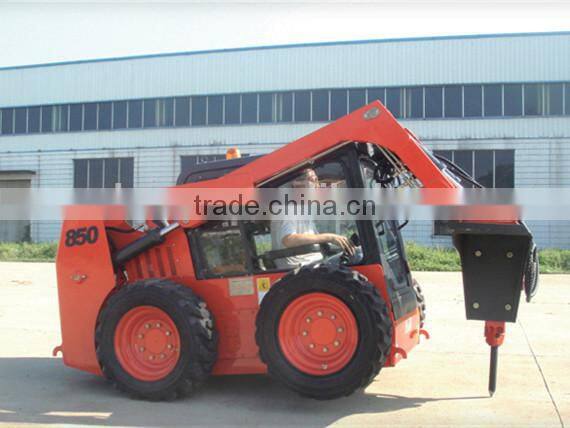

High Quality 850kg Mini Backhoe Loader  with Other Loader Attachments

High Quality 850kg Mini Backhoe LoaderHigh Quality 850kg Mini Backhoe LoaderHigh Quality 850kg Mini Backhoe Loader



Packaging & Shipping

High Quality 850kg Mini Backhoe Loader

Company Information

Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is a professional hydraulic

excavator manufacturer integrating scientific research, production and sales. Wolwa Group Co., Ltd has the total

assets of 2.5 billion RMB. It has over 80,000 squaremeters of production workshop with international advanced level

and 8,000 squaremeters of R & D center. It has the production capacity with an annual output of 10,000 sets of construction machinery and 20,000 sets of hydraulic parts. The company has the honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100 Enterprise.

Our main leading products are DLS865-9A  DLS880-9A  DLS890-9A  DLS100-9A Wheeled Hydraulic Excavator,

DLS880-9A  DLS890-9A Wheeled Sugarcane Wood Loader,  DLS118-9A Wheeled Hydraulic Stacker, DLS865-9B  DLS865-10B  DLS880-9B DLS100-9B  DLS130-9  DLS160-9 Crawler Hydraulic Excavator etc.

We also specializes in the sales of other construction machinery and agricultural equipment such asdesiccated

underground crusher, welding workstation, truck cranes,wheel loaders, skid steer loaders, concrete mixer trucks,

forklifts, road rollers, harvesters, tractors, steel bar processing machinery and so on.

Our company has passed the ISO9001:2008 authentication, and got European UnionCE certificate.Our products are

exported to many countries such as Russia, Belarus, Iran,Vietnam, Five Central Asian Countries, Africa and other

countries all over the world.
