GN380 Mini Skid Steer Loader Price/small Skid Steer Loader Price

GN380 Mini Skid Steer Loader Price/small Skid Steer Loader Price thumbnail-1
GN380 Mini Skid Steer Loader Price/small Skid Steer Loader Price photo-1
US$ 5,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
wolwa
Model Number:
GN380
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name wolwa
Model Number GN380
Type Skid Steer Loader
Moving Type Crawler Loader
Dimension(Long * Breadth * High) 2050*2950*1500
Rated Load 1500kg
Certification ce iso
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



GN380 mini skid steer loader price/small skid steer loader price







Small skid loader GN380 introduction:

Small loader GN380 is a mechanical equipment with many uses. The fuselage is narrow, easy handling, can easily and quickly stogether to hook up a variety of different functions to realize all kinds of workwidely used in park, courtyard, lawn, garden or any other place in the environment.



Product feature:

1,Small skid loader GN380 easy to operate

Double handle finish walking, lift and skip movements

Piston motor smoothly

Four-wheel drive adapt to various environment

Many forms of pedals, let the operation safer and more convenient

Both servo and standard operation mode

2, Small skid loader GN380 easy maintenance

Oil mouth in car in vitro, convenient to replace air filter, oil, filter, spark plug

The guard plate is convenient, the cover can be opened

3, Small skid loader GN380 can be configurated with variety of affix, and is interchangeable between each model.

4, International famous brand engine, stable and reliable.

5, small  skid loader GN380 many kinds of tires and the track model chosen, more resilient.

6, GN380 mini loader is more narrow, only 800 mm wide. Can through narrow places, and have big fuel tank and the lifting force.

7, Small skid loader can do much simplified manual labor, improve efficiency

8, Compared with similar products, have a higher lifting height

Small skid loader GN380 parameter:



item

GN380

crawler type

with solid tire

with ordinary tire

with widen tire

people type tire

ing height(A)

2128 mm

2115 mm

2155 mm

2155 mm

2143 mm

Max.pin height(B)

1869 mm

1856 mm

1896 mm

1896 mm

1884 mm

Max.discharge height(C)

1473 mm

1460 mm

1500 mm

1500 mm

1488 mm

Top dicharge distance(D)

399 mm

388 mm

348 mm

348 mm

348 mm

bucket angle(β)

55°

55°

55°

55°

55°

bucket discharge angle(γ)

30°

30°

30°

30°

30°

collecting bucket angle(θ)

25°

25°

25°

25°

25°

departure angle(α)

10°

8°

12°

12°

11°

total height(H)

1218 mm

1205 mm

1245 mm

1245 mm

1233 mm

ground clearance(F)

105mm

90 mm

130 mm

130 mm

118 mm

axle base(G)

612mm

636 mm

636 mm

636 mm

636 mm

leight without bucket(J)

1752 mm

1752 mm

1752 mm

1752 mm

1752 mm

toal width(W)

1060 mm

1033 mm

1033 mm

1183 mm

1160 mm

bucket width(K)

980 mm

980 mm

980 mm

980 mm

980 mm

total length(L)(with bucket)

2206 mm

2206 mm

2206 mm

2206 mm

2206 mm

frount turn radiusR

1317 mm

1307 mm

1307 mm

1307 mm

1307 mm





item

GN380

engine

rated power(KW)

15.435KW(21HP)

turn speed(rpm)

3600

noise(Db)

≤95

hdraulic system

system pressure(Mpa)

17

working hour(s)

lift

turn

down

4.27

1.34

3.31

parameter



metric



loading weight

200 Kg



bucket Vol.

0.15 m3



max.pulling force

375 Kg



speed

0-5.5 Km/h



operating weight

with solid tire

940 Kg



with ordinary tire

886 Kg



with widen tire

850 Kg



crawler type

1068kg



with construction tire

890kg



tire model

solid tire

16×6-8

ordinary tire

5.00-8

widen tire

KT-302  18*9.5-8  6P/TL

people shape tire

18*6.5-8

tire

solid tire

4.33R-8

ordinary tire

3.50D

widen tire

8*6.5

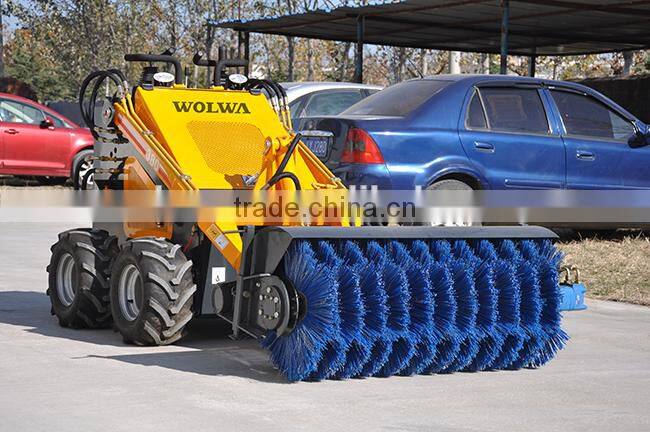

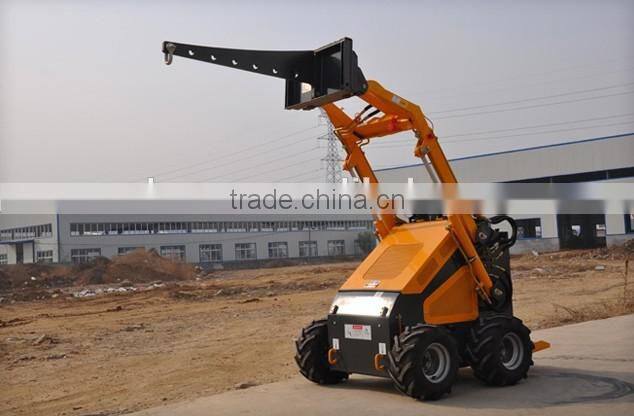

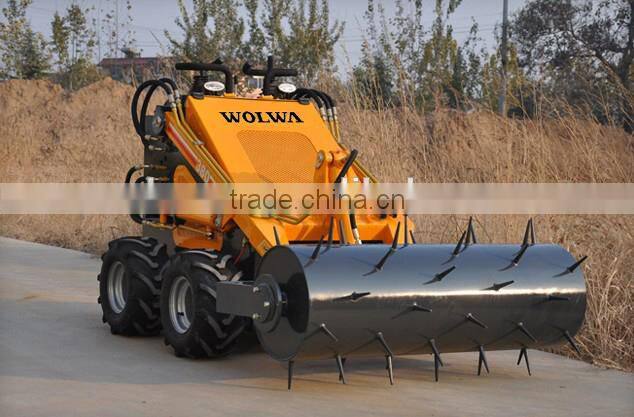

Small skid loader GN380 and affix picture:

GN380 mini skid steer loader price/small skid steer loader priceGN380 mini skid steer loader price/small skid steer loader priceGN380 mini skid steer loader price/small skid steer loader priceGN380 mini skid steer loader price/small skid steer loader priceGN380 mini skid steer loader price/small skid steer loader priceGN380 mini skid steer loader price/small skid steer loader price





  GN380 mini skid steer loader price/small skid steer loader price

  GN380 mini skid steer loader price/small skid steer loader price

GN380 mini skid steer loader price/small skid steer loader price

GN380 mini skid steer loader price/small skid steer loader price

GN380 mini skid steer loader price/small skid steer loader price
