wheel loader mini skid steer loader GN400
GN400 skip steer loader introduction:
GN400 skid steer loader: has a compact width of only 910mm, weighs only 1400KG and it can even enter through most door ways making this a perfect tight access machine with multiple uses and multiple attachments available.
Anti-roll & anti-litter cab makes the safety of driver.
Self-Leveling hydraulics adjust the bucket level when lifting and lowering.
Skid steer loader(GN400) This machinery also have many attachments such as bucket, the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger, lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw, and so on, GN400 skid steer loader: outline dimension.
skip steer loader GN400 technical parameters
ITEM |
GN400 |
|
Metric system |
English system |
|
Max working eight(H3) |
2671mm |
105.2inch |
Max pin height(H2) |
2293 mm |
90.2inch |
Max dumping height(H1) |
1703 mm |
67inch |
Max Dumping distance(L3) |
315 mm |
12.4inch |
Max Dumping Angle(θ) |
41 ° |
|
Rollback of bucket on ground (α) |
24 ° |
|
Departure angle(γ) |
24° |
|
Total height(H) |
1766 mm |
69.5inch |
Ground clearance(F) |
155 mm |
6.1inch |
Wheel base(L) |
800 mm |
31.5inch |
Overall length without bucket(L1) |
2028 mm |
79.8inch |
Total length(L) |
2635 mm |
103.7inch |
Total width (W) |
960 mm |
37.8inch |
Bucket width(K) |
930 mm |
36.6inch |

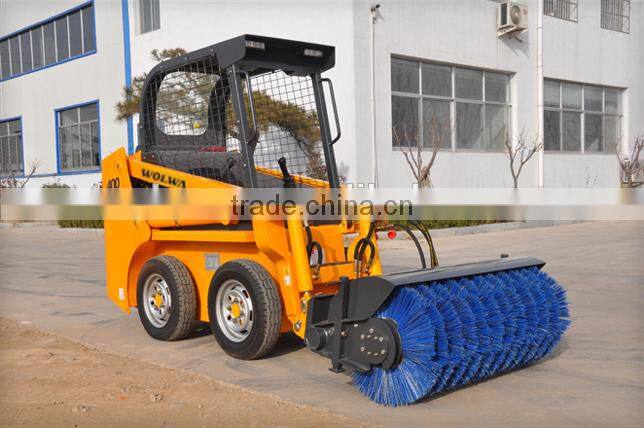

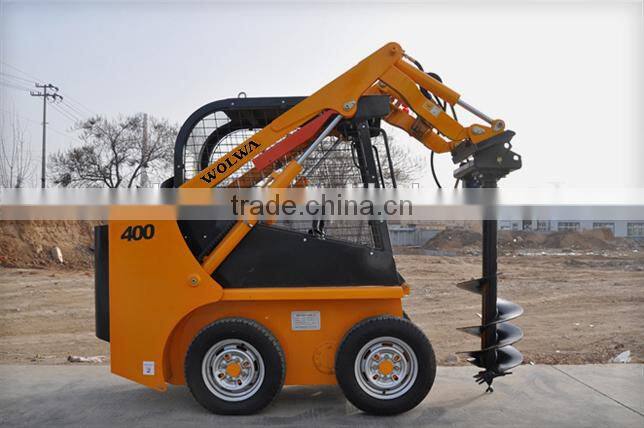

skip steer loader GN400 work type photo:
