China Made Box Semi Trailer for Sales

Name: China Made Box Semi Trailer for Sales
Brand: wolwa
SKU: 140741080
Availability: InStock

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification CE

Size 13000mm*2490mm*2860mm

Max Payload 60ton

Place of Origin Shandong, China

Brand Name wolwa

Model Number box semi trailer

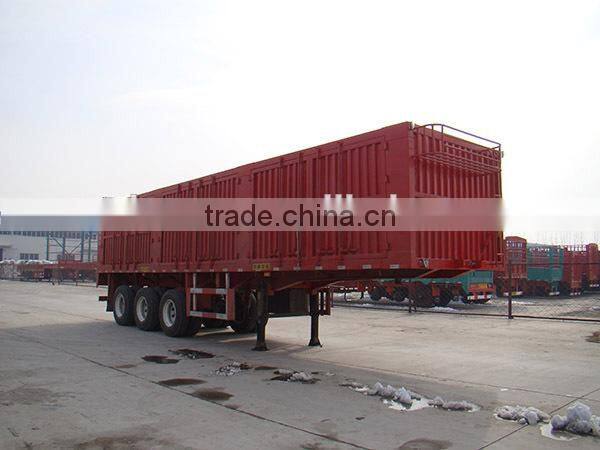

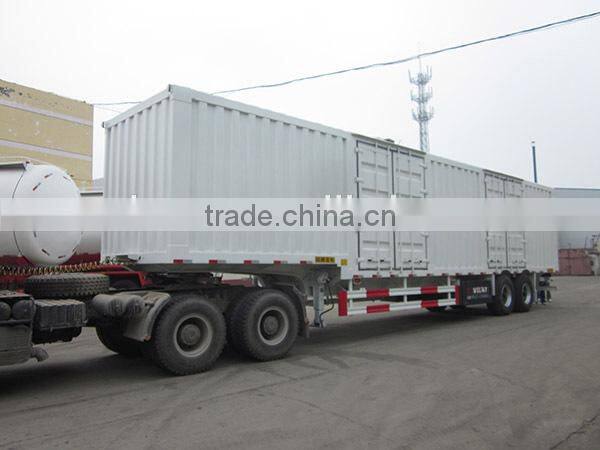

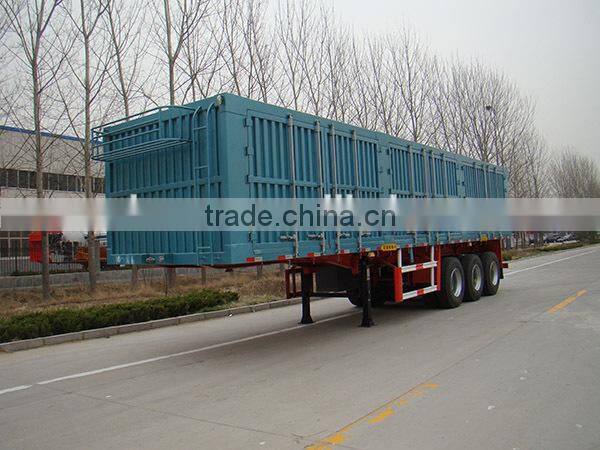

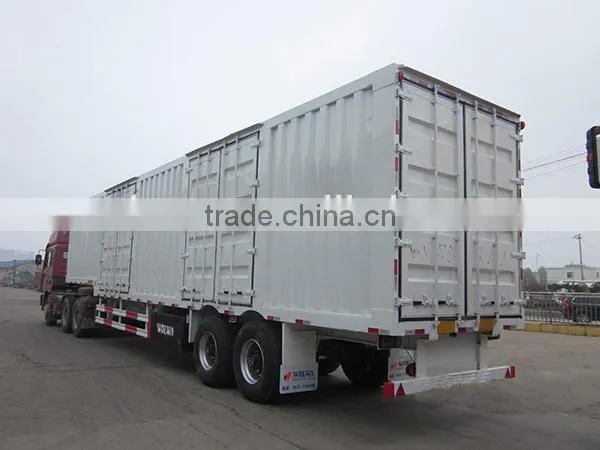

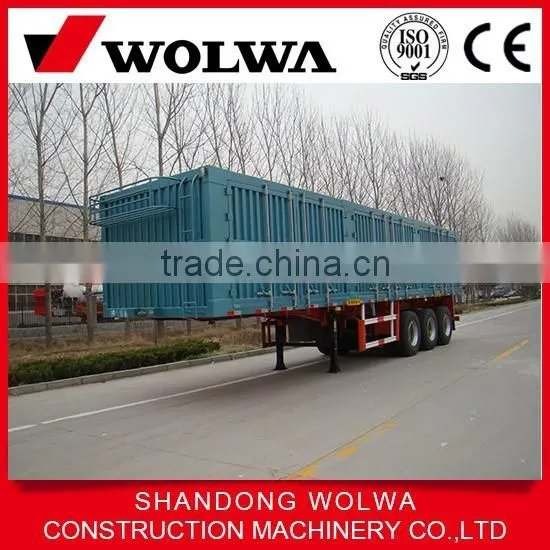

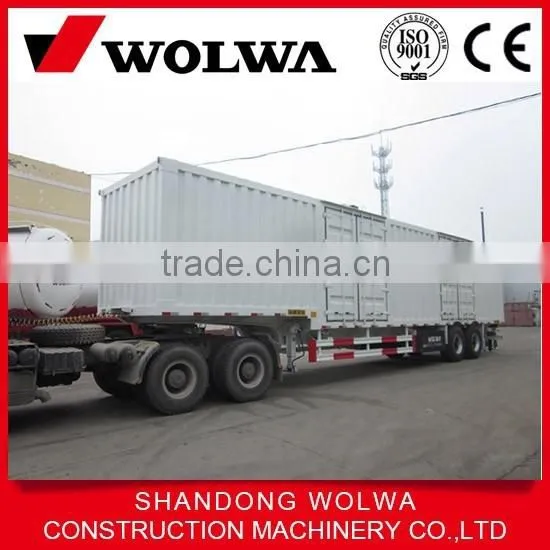

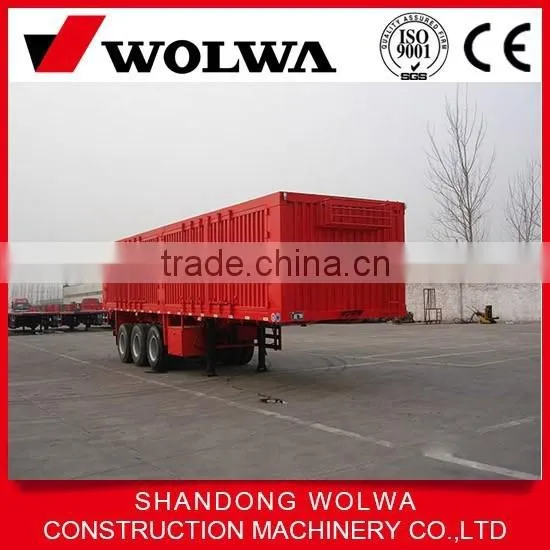

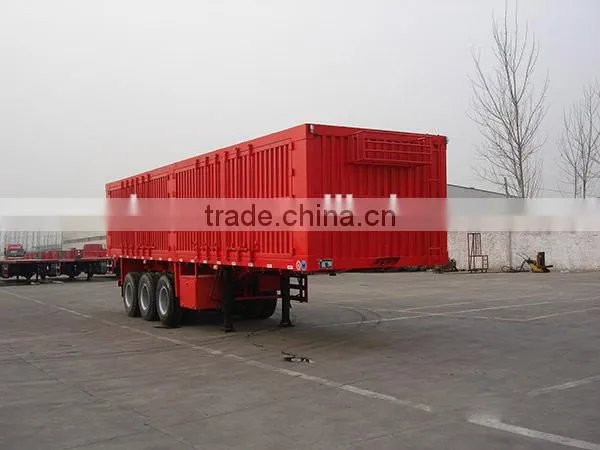

china made box semi trailer for sales

Product Description

Introduction:

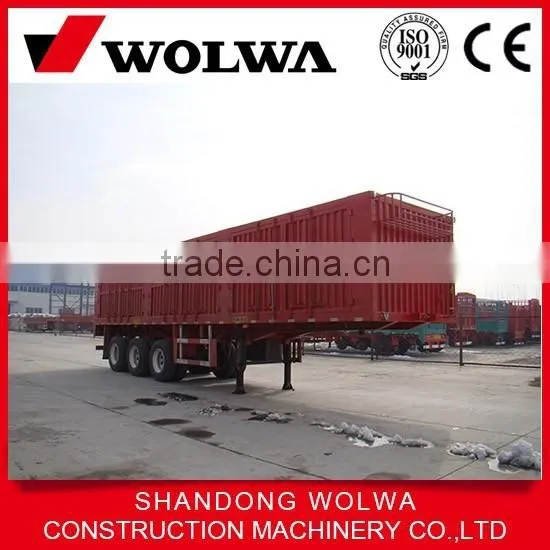

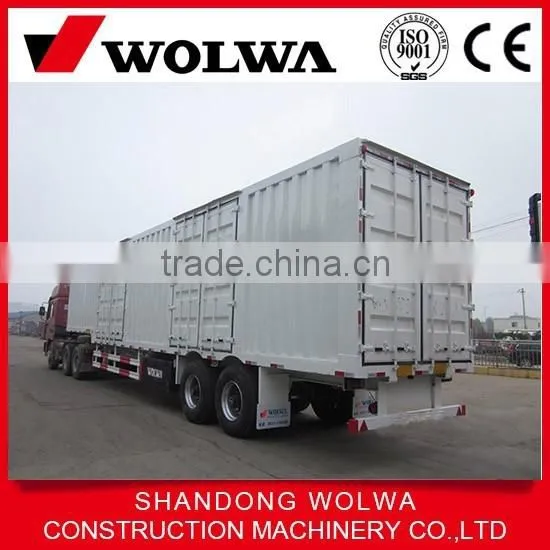

This series of box semi trailer is mainly used to transport home appliances, textiles, coals, sands,

and other building materials as well as goods that can be carried by pallets.

Van trailer with a length more than 16m is often used to transfer goods between two inland countries.

The fully enclosed trailer body is made of high-strength steel plates welded together to form an ample

loading space. X-shaped brace allows the box to load heavier goods while still keeping a lightweight

design.

Various types of box tops are available to meet various customer needs, including closed,

slide open, open, and open type with tarpaulin rod. Unique to the box semi trailer is the side

guardrail that protects both sides of the van trailer during driving. Rear guard design comes

with special devices that facilitate the push of the trailer from behind. The trailer box opens

on both sides to allow easy and fast unloading.

Tare Weight	About 8.3T
Dimension	13000mm2490mm2860mm(Outerside) 1280023001800mm
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	9.00-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (Chinabrand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T orChinabrand 28Tons (Double speed)
Main beam	Height:500mm, upper plate is14mm, middle plate is8mm, down plate is16mm; Material is Q345B Steel .
Side beam	16mm or18mmchannel steel (Material is Q235steel).
Side Wall	600mm-1800mm ,the open door can be choose freely.
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)
Semi Trailer Surface Coating	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Shipping terms	By Bulk cargo carrier,RORO or 40’HQ container
