Home > Transportation > Trailer > Other Trailers > China High Quality Car Trailer

China High Quality Car Trailer

Name: China High Quality Car Trailer
Brand: wolwa
SKU: 140741082
Availability: InStock

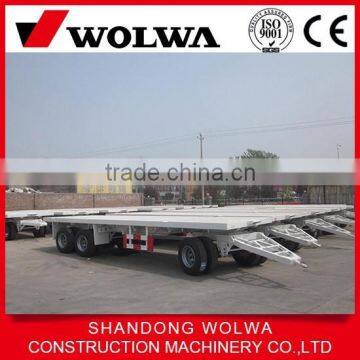

China High Quality Car Trailer thumbnail-1

China High Quality Car Trailer thumbnail-2

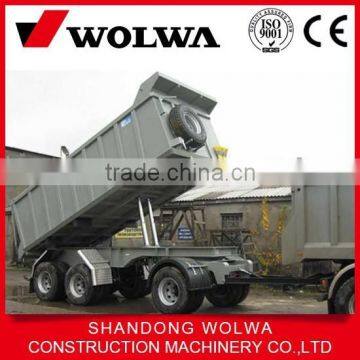

China High Quality Car Trailer thumbnail-3

US$ 1 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

wolwa

Contact Supplier Request Quote Chat Now

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name wolwa

car trailer

Tare Weight (Dolly Trailer)	About 5.6-8T
Dimension	12450mm × 2490mm× 1575mm (Size can be tailored to suit individual needs.)
Loading Capacity (T)	≤ 45 T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	9.00-22.5 9.75-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (German or American type) Or Air suspension (Chinese or BPW brand )
Spring Leaf	90(W)mm×13(Thickness)mm×10layers or 100mm×12mm×12layers
King Pin	JOST brand 2.0 or 3.5inch (bolted or welded type) (Optional)or use turntable (also known as the Fifth Wheel) (Diameter:1.1m)
Draw Bar	4×4 or 4×6mm square tube (length: 1.4m )
Tractor Hook	DN50
Landing Gear (support leg)	This dolly trailer does not need landing gear.
Main Beam	Height: 500mm Upper plate: 14mm Middle plate: 8mm Bottom plate: 16mm Material: Q345B steel
Side Beam	16mm or 18mm channel steel (Material:Q235steel ).
Bottom Platform	3mm-thick checkered plate
Brake Chamber	WABCO RE 6 relay valve; T30/30+T30 spring brake chamber (TKL brand); 45L air tanks (Specially intended for oversea markets)
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (lifting type or screw type)
Valve	WABCO valve
Light	LED light(Specially intended for oversea markets)
Voltage	24V
Socket(Receptacle)	7-pin Socket (for 7 wire harness)
Tool Box	1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)
Painting	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Shipping Terms	Transported by RORO or 40HQ container.
