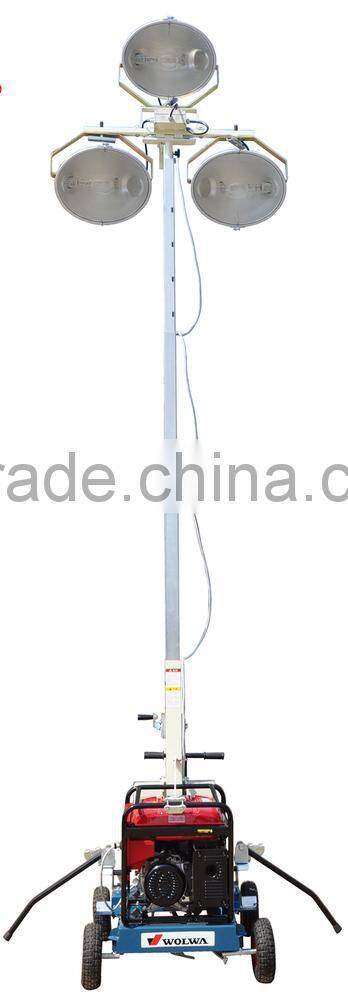

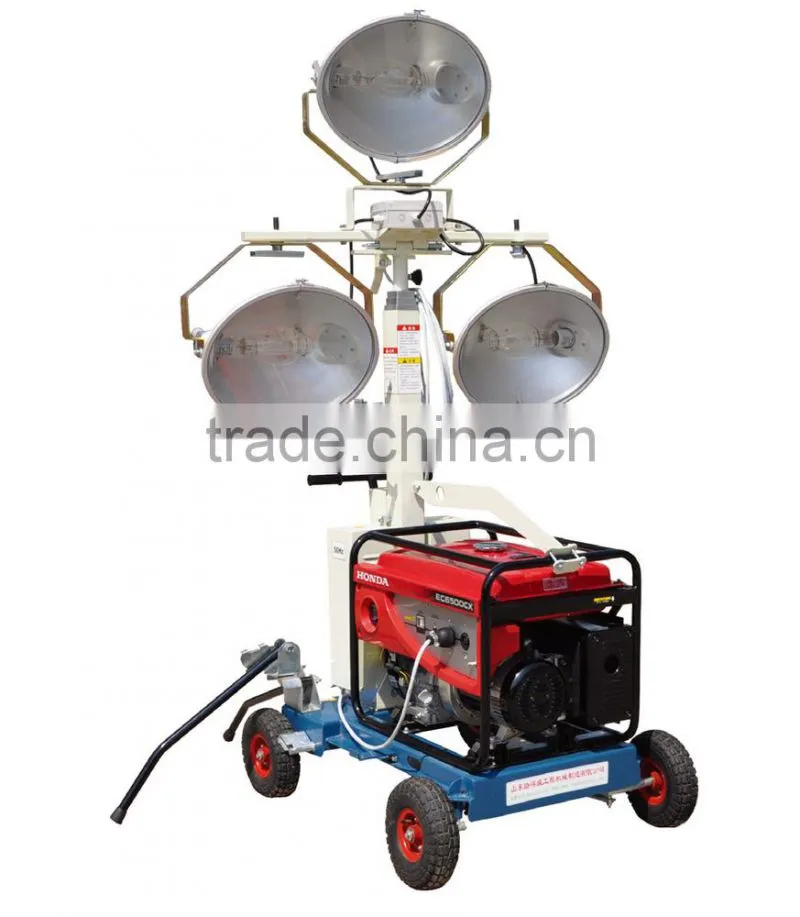

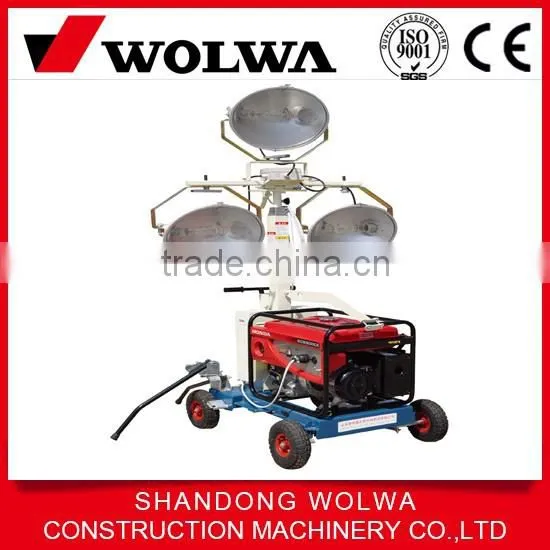

Diesel Engine Hand-operated Mobile Light Tower
From China Factory
1.Overview:
Mobile Light Tower(Hand-push Type)
It is normally used for night construction and other field operation in the sectors of municipal
engineering, road, bridge, port, mining and construction etc. Meanwhile,it also used on the
occasion of night rush repairs and disaster relief site.
2.Features:
Outdoor Telescopic Movable Light Tower
1)Famous motor and generator, excellent performance, start easily;
2) metal halide lamp has long service life;
3) Anti-fall, safe and solid;
4) Hand-operated winch, lockable at any moment;
5 )Elevating frame is made of Stsainless steel square pipe;
6) Elevating frame can rotate, east for light waving, overturn to intake,transport and store;
7) Plastic treated, anti-rust, anti-corrosion and beautiful.
Model |
GNZM-400A |
GNZM-400B |
GNZM-1000A |
GNZM-1000B |
|
Generator |
EC2500CX/ 3GF-LED |
EC4000CX/ 3GF-LED |
EC4000CX/ 3GF-LED |
EC6500CX/ 5GF-LED |
|
Type |
Air cooled, 4stroke, OHV gasoline engine |
Air cooled, 4stroke, single cylinder direct injection type diesel engine |
|||
Generator Types |
Single-phase alternator |
||||
Rated Power |
2.0kw |
3.0kw |
3.0kw |
5.0kw |
|
Rated Voltage |
220V |
220V |
220V |
220V |
|
Continuous working time (hour) |
13hr |
13hr |
13hr |
9hr |
|
Oil Tank |
15L/12.5L |
25L/12.5L |
25L/12.5L |
25L/16L |
|
Power*lamp |
400W*2 |
400W*4 |
1000W*2 |
1000W*4 |
|
Stanchion Lamp frame |
3 sections |
4 sections |
4 sections |
4 sections |
|
Elevating height |
1800-3800mm |
1800-4600mm |
1800-4600mm |
2000-5600mm |
|
Anti-slope |
<10° |
||||
Anti-wind |
<6 |
||||
Walk type |
Hand push type |
|
|
|
|
Total luminouness |
72000Lm |
144000Lm |
220000Lm |
440000Lm |
|
Lamp |
Metal halide lamp |
||||
Elevating mode |
By hand-operated |
||||
Package size |
Main machine |
1300*900*950mm |
|||
Stanchion |
1750*500*500mm |
||||
Lamp |
440*440*480mm*2 |
440*440*480mm*4 |
600*600*600mm*2 |
600*600*600mm*2 |
|
Net weight(kg) |
95/165kg |
120/175kg |
110/210kg |
140/230kg |
|
