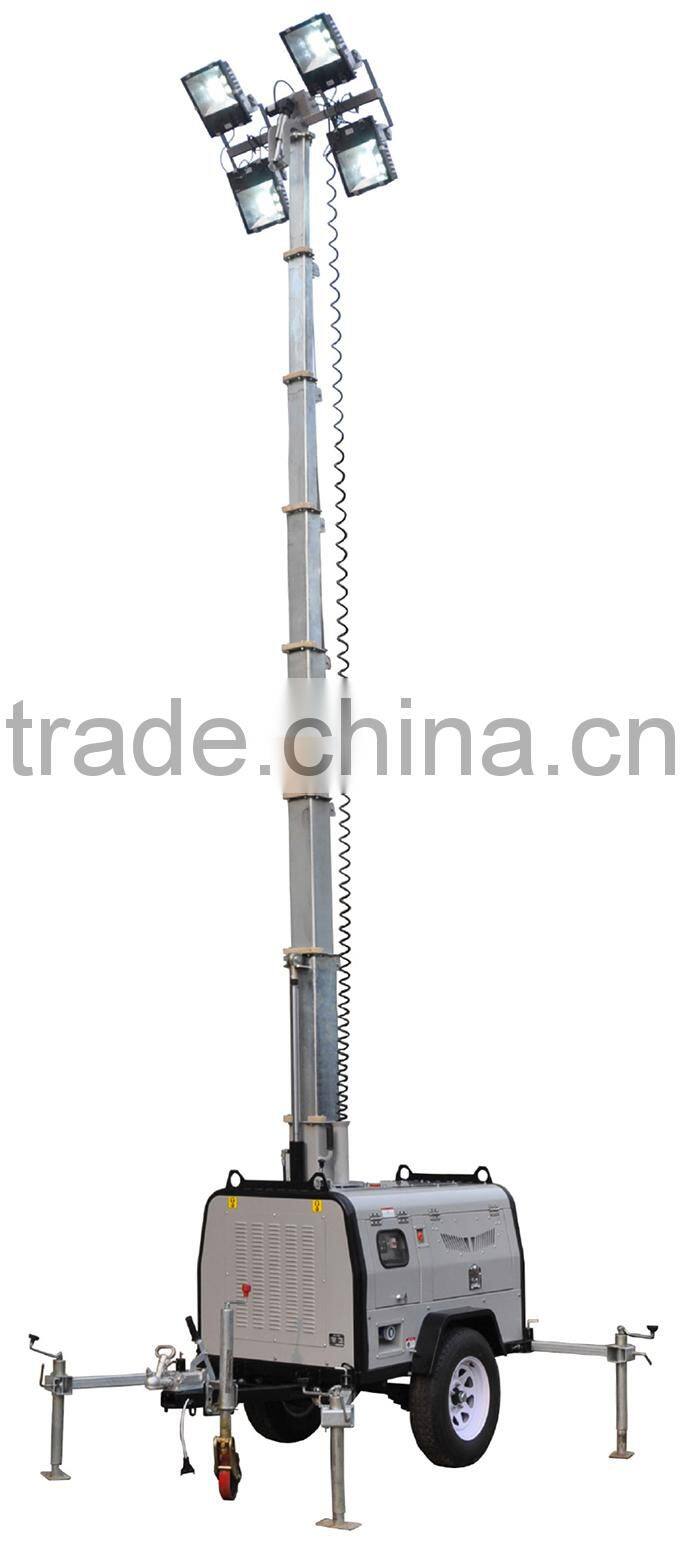

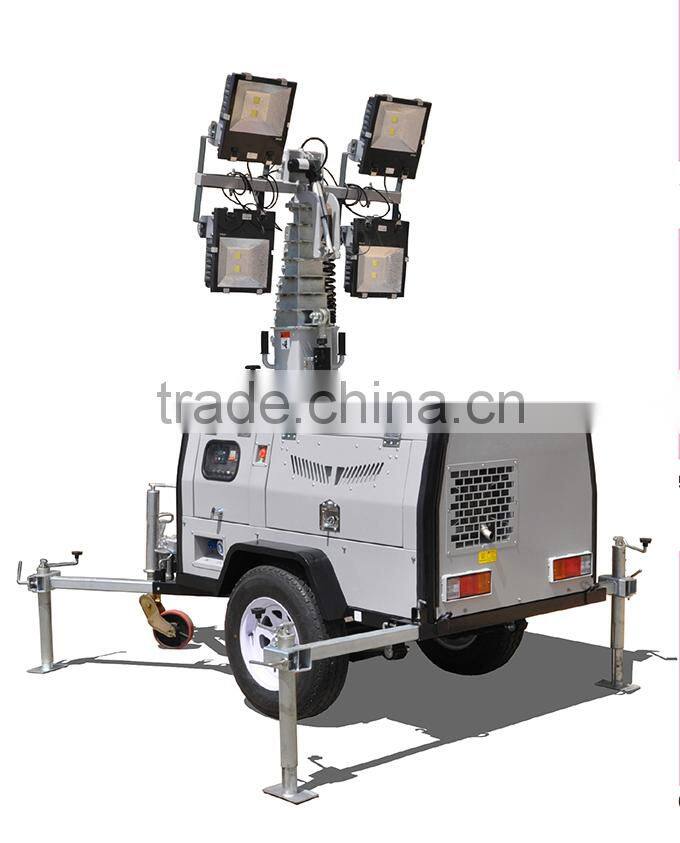

factory supply elevate by hydraulic diesel engine portable light tower
Trailer Light Tower(elevate by hydraulic)
introduction:
It is normally used for night construction and other field operation in the sectors of municipal engineering, road, bridge, port, mining and construction etc. Meanwhile, it also used on the occasion of night rush repairs and disaster relief site.
feature:

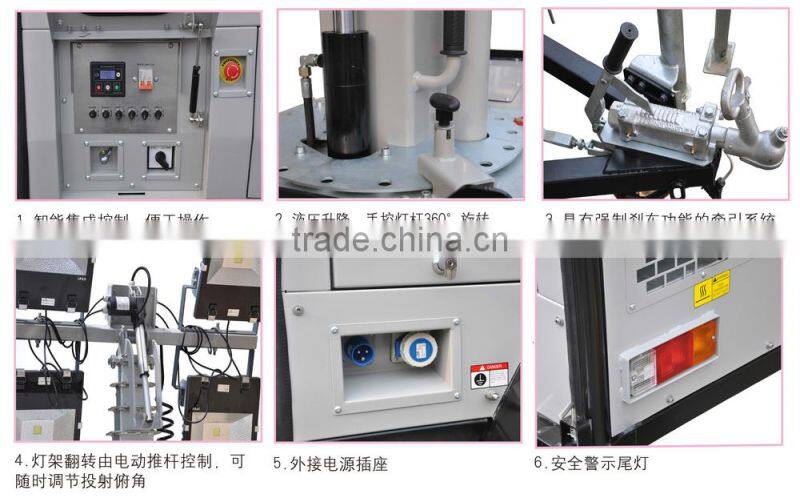

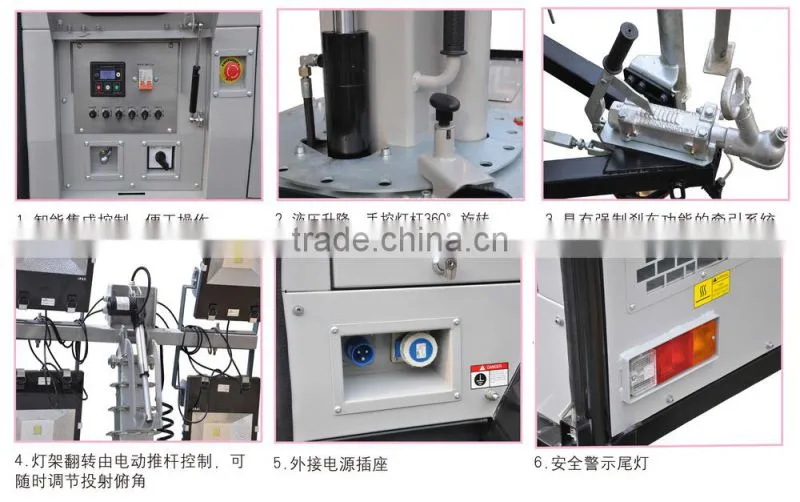

•Intelligent integrated control panel;
•External power receptacle;
•LED lamp, energy-saving and environment protection;
•Lantern support is controlled by electric push rod and can be adjusted to get a desired projection angle;
•Hydraulic elevating, manual controlled 340 rotation;
•Have passed CE certificate.
GNZM61C |
|
|
|
Power x lamp quantity | 150W×4 |
Total Luminousness | 12000×4Lm |
lamp | LED |
Max. Coverage area |
|
Mast operation | 8 sections mast |
Elevating height | 8500mm |
Elevating mode | Hydraulic-operated |
Support leg | Four hand adjustment support |
Anti-slop | <8° |
Anti-wind | <6 |
Trailer connection mode | 2 inches trailer ball/trailer ring |
Tyre | 14 inch |
Highest dragging speed | 80Km/h |
Engine |
|
Mode | Kohler KD350 |
Type | Air cooled, 4 stroke, single cylinder, diesel engine |
Power | 5.0kW |
RPM | 3000rpm |
Oil tank volume | 68L |
Working temperature | -15℃-40℃ |
Continuous working time | 35h/32h |
Alternator |
|
Type | Linz SP10S E |
Model | Single-phase alternator |
Frequency | 50Hz |
Max. power | 4.5KVA |
Retated power | 4KVA |
Voltage | 230V |
Battery | 12V 80Ah |
Packing size |
|
Main machine | 2000×1400×2220 |
lamps | 880×590×520 |
Weight | 995Kg |
FACTORY INTRODUCTION
XT INTRODUCE
WOLWA GROUP was established in 2005,which is a advanced technology equipment manufacturer.Its products include construction machinery,hydraylic component,mine equipment,pipe etc.We have 5 subsidiaries , include Wolwa construction machinery company,Dorson hydraulic component company,Guoneng structure part company,Wolwa pipe company,Jinsheng coal company.The capital of WOLWA GROUP exceeds RMB 2.5 billion.More than 800000 square meters international advanced workshopand more than 8000 square meters technology research center, produce more than 10000 complete machines and 20000 hydraulic components per year.Wolwa group has a provincial technology center and was the awarded of "Top 100 private enterprises in Shandong province",distinctive enterprise of Shandong ,National advanced technology enterprise,which is also a mainly supported enterprise by Jining government.
In the last 10 years,The aim of WOLWA GROUP is always "To be the leader of the construction industry,become a international famous brand" by keep on technological innovation.WOLWA brand series of wheeled excavator is applied to construction ,port , municipal works,park,environmental health,water conservancy,agriculture etc by it's intelligent ,efficient and multifunction features.WOLWA GROUP occupies the top level of market share of Chinese private enterprises.Dorson company -- the advanced hydraulic component company becomes a very important partner of many famous companies like Sanyi,Zoomlion ,Liugong,Xcmg,Beijing Hyundai,Sumitomo by the advantages of R&D.We got more than RMB 2.5 billion profit,taxes payment was more than RMB 3000 million.The main economic target were achieved double growth than 2013.
Based on the advantages of firm foundation and talents,technology,fund, WOLWA GROUP opened a new chapter of advanced equipment manufacturing.On Aug 2012,WOLWA GROUP undertaked the National "12th five" project,The ice ice breaker which produced by WOLWA was tested in the Batou section of Yellow river successfully .We finished the batch production of icebreaker in 2014.WOLWA GROUP - Shandong university High-tech information industry park which was invested more than 3 billion CNY will complete recently.Many kinds of new technology equipments will be developed in the park,include amphibious ice breaker,Sea wave power generation,mobile water treatment truck etc.After the park put on production,the expected amount of sales income will exceed RMB10 billion ,then WOLWA GROUP will become a international famous large high-tech equipment manufacturer in the world.
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
If you are interested in us,you can contact with us,we can give you more demails about our pruducts and offer you the cest service.We are also pleased to welcome you to visit our factory.^^
