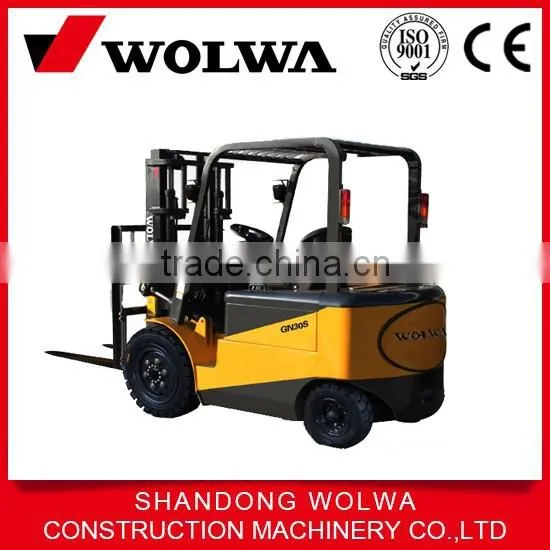

china wolwa 3 ton electric forklift with hydraulic control system
Electric forklift GN30S introduction
Electric forklift truck driven by electricity, compared with internal combustion forklifts, has the advantages
of no pollution, easy operation, energy efficient.the operator's work strength to light many relative to internal
combustion forklifts, electric steering system, speed control system, hydraulic control system and brake
system are controlled by electrical signals, greatly reduce the labor intensity of the operators, thus to improve
the work efficiency and the accuracyof work.
Electric forklift GN30S feature
1.Reliable performance of the ac motor and ac pump motor, no carbon brush and free of maintenance.
2.CAN bus technology, reduce the wiring, the reliability of communication signal transmission.
3.Regenerative recovery system, environmental protection and energy saving.
4.Were placed horizontally, drive motor, storage battery sink to the bottom frame, stability is good.
5.Using the large capacity battery, work longer hours.
Main parameter
| summary | model | GN30S | Unit | ||
| rated capacity | 3000 | Kg | |||
| load center | 500 | mm | |||
| power type | battery | ||||
| dimention | lifting height | 3000 | mm | ||
| door frame Angle(front/rear) | 6/12 | deg | |||
| outline dimention | total length | 3545 | mm | ||
| total width | 1260 | mm | |||
| total height | 2135 | mm | |||
| Min. turn radius | 2135 | mm | |||
| performance | Max.travle speed(with load/without load) | 15/18 | Km/h | ||
| Max.lifting speed(with load/without load)) | 260/430 | mm/sec | |||
| gradeability | 13 | % | |||
| self weight | 4850 | kg | |||
| chassis | tire | front | 28*9-15-14PR | ||
| rear | 18*7-8-14PR | ||||
| axle base | 1585 | mm | |||
| battery | voltage/Vol. | 80/550 | V/Ah | ||
| Motor and controller | rive motor power | 11.75(AC) | Kw | ||
| pump motor power | 10(AC) | Kw | |||
| control type | MOS pipe | Kw/rpm | |||
About Us
We are established in 2005,we are devoted ourselves to machine manufacturing for ten years long.
We are professional manufacturer and exporter concerned with the design.Our factory covering an
qrea of 88,000 square meters,now we have over 1,000 employees.We have already received ISO9001
certification.All of our pruducts comply with international quality standards and are greatly appreciated in
a variety of markets around the world.
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
If you are interested in us,you can contact with us,we can give you more demails about our
pruducts.We are also pleased to welcome you to visit our factory.^^
