mini cheap 2.5 ton new forklift price from china

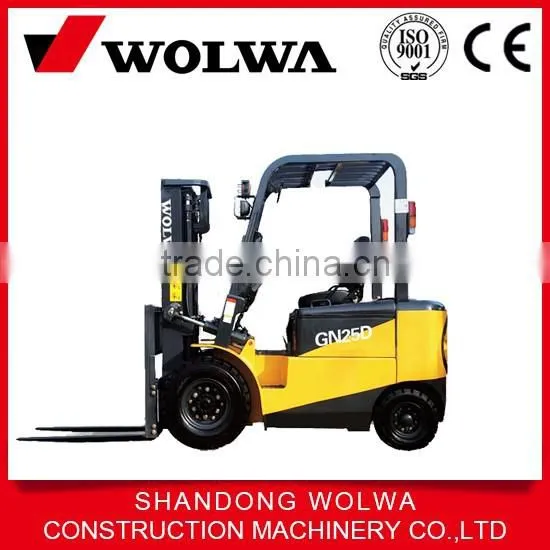

Electric forklift GN25D summary
Electric forklift, compared with diesel forklift, has the advantages of no pollution,
easy operation, energy efficient, the operator's work strength to light many relative to
internal combustion forklifts, electric steering system, speed control system,
hydraulic control system and brake system are controlled by electrical signals,
greatly reduce the labor intensity of the operators, thus to improve the work
efficiency and the accuracy of work.
Electric forklift GN25D feature
1.Ac walking motor with reliable performance, no carbon brush and free of maintenance.
2.With excellent dc hoisting motor at low speed and low noise of the gear pump,
cancelling the steering motor and oil pump, to achieve single pump, reduce
the lifting noise.
3.Electric control system, advanced and reliable, high efficiency, low heating,
small noise, and thermal protection and thermal compensation, overvoltage,
undervoltage protection.
4.Friendly interface and interactive multifunction instrument, with beautiful
appearance, can accurately display battery capacity, working time, fault code, etc.
Main parameter
| summary | model | GN25D | Unit | ||
| rated capacity | 2500 | Kg | |||
| load center | 500 | mm | |||
| power type | battery | ||||
| dimention | lifting height | 3000 | mm | ||
| door frame Angle(front/rear) | 6/12 | deg | |||
| outline dimention | total length | 3445 | mm | ||
| total width | 1160 | mm | |||
| total height | 2130 | mm | |||
| Min. turn radius | 2050 | mm | |||
| performance | Max.travle speed(with load/without load) | 12/14 | Km/h | ||
| Max.lifting speed(with load/without load)) | 265/435 | mm/sec | |||
| gradeability | 15 | % | |||
| self weight | 4200 | kg | |||
| chassis | tire | front | 7-12-12PR | ||
| rear | 18*7-8-14PR | ||||
| axle base | 1500 | mm | |||
| battery | voltage/Vol. | 48/600 | V/Ah | ||
| Motor and controller | rive motor power | 9.1(AC) | Kw | ||
| pump motor power | 8.6(AC) | Kw | |||
| control type | MOS pipe | Kw/rpm | |||
About Us
We are established in 2005,we are devoted ourselves to machine manufacturing for ten years long.
We are professional manufacturer and exporter concerned with the design.Our factory covering an
qrea of 88,000 square meters,now we have over 1,000 employees.We have already received ISO9001
certification.All of our pruducts comply with international quality standards and are greatly appreciated in
a variety of markets around the world.
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
If you are interested in us,you can contact with us,we can give you more demails about our
pruducts.We are also pleased to welcome you to visit our factory.^^
