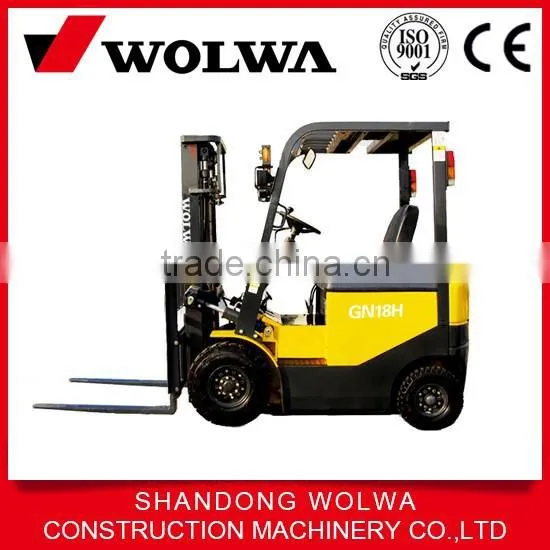

1.5 ton max lifting height 3 meter electric forklift
1. The excellent low speed and large torque DC lifting motor
2. It adopts excellent low speed DC motor and low noise gear pump and removes the steering motor and steering oil pump,
which achieves single pump bypass flow and reduces the noise
3. The advanced and reliable electric control system features high efficiency, low heat, low noise, as well as overheating protection, heating compensation, and overvoltage and low-voltage protection
4. In addition to the protection for electric control system, it also has other protection functions like improper operating sequence protection, seat power-off protection, travel brake steering retaining, etc.
5. The multifunctional interface-friendly interactive instruments can accurately display the electric quantity of battery, work time and trouble code, etc.
Specification |
Model |
GN15D |
|
||
Rated load weight |
1500 |
Kg |
|||
Load center distance |
500 |
mm |
|||
Power system |
battery |
||||
Size |
Lifting height |
3000 |
mm |
||
Mast Tilt Angle(Front/Rear) |
6/12 |
deg |
|||
dimension |
Overall length |
3137 |
mm |
||
Overall width |
1100 |
mm |
|||
Overall height |
2090 |
mm |
|||
Minimum turning radious |
1900 |
mm |
|||
function |
Max travelling speed(full load/empty load) |
11/13 |
Km/h |
||
Max lifting speed(full load/empty load) |
380/410 |
mm/sec |
|||
Max climbing ability |
15 |
% |
|||
weight |
3280 |
kg |
|||
chassis |
tire |
front |
6.50-10NHS |
|
|
rear |
5.00-8-8PR |
|
|||
Wheel base |
1380 |
mm |
|||
battery |
voltage/capacity |
48/440 |
V/Ah |
||
Electric motor and control |
Drive electric motor power |
5.2(DC) |
Kw |
||
Pump electric motor power |
8.2(DC) |
Kw |
|||
Control type |
MOSpipe |
Kw/rpm |
|||
