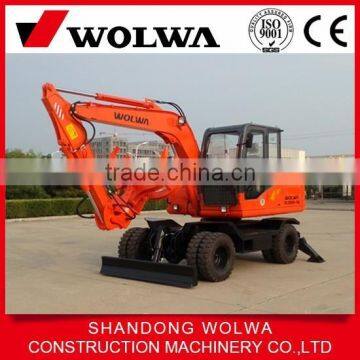

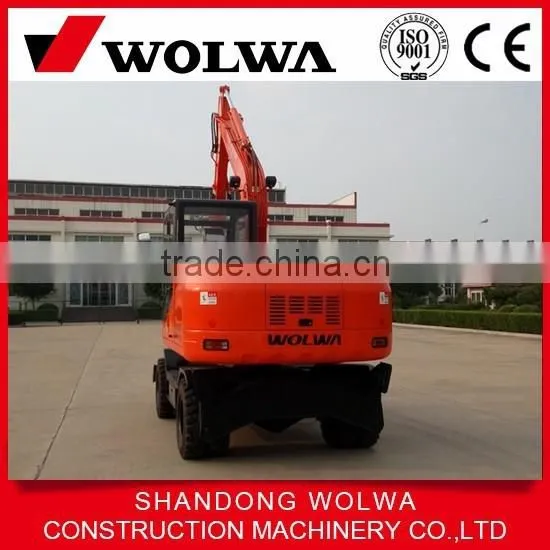

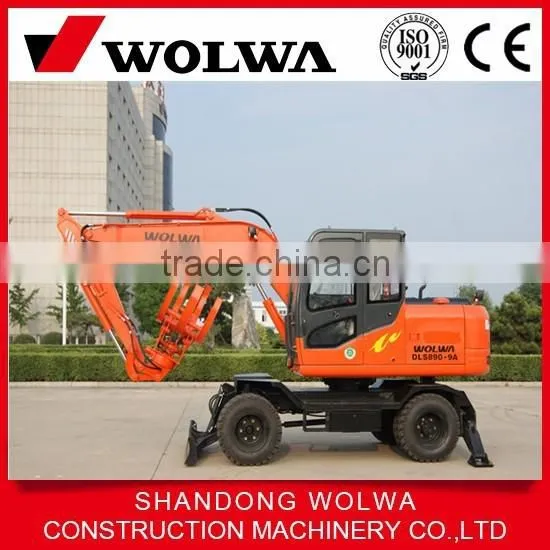

Help CenterChina Wolwa New DLS890-9A 8t Wheeled Sugarcane Wood Grab Loader
Related Products
-
Sugarcane Collecting Machine DLS880-9A Sugarcane Grab ExcavatorUS$ 28,000 - 35,000MOQ: 1 Set -
Wolwa New Wheeled Excavator DLS100-9A With High QualityUS$ 20,000 - 30,000MOQ: 1 Set
-
Wolwa High Quality DLS118-9A Wheeled Grapple Stacker ExcavatorUS$ 40,000 - 80,000MOQ: 1 Set
-
New Wheeled Hydraulic Stacker 11t DLS118-9A Wheeled Hydraulic GrapplerUS$ 40,000 - 80,000MOQ: 1 Set
-
High Quality Wheel Excavator DLS865-9A Mini Hydraulic Wheel DiggerUS$ 25,000 - 30,000MOQ: 1 Set

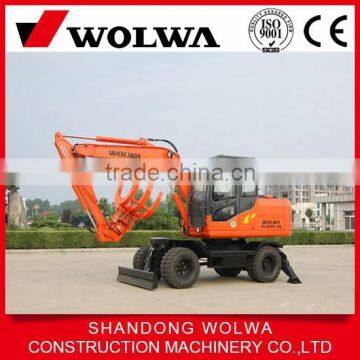

DLS890-9A Wheeled Sugarcane Wood Loader
Product Features:
1. Structure parts is independently produced, the whole process is quality controlled.
All mechanical parts is of finite element analysis, the key welding point is tested no damage.
2. Car body is our mature models, with stable and durable performance.
3. Enlarged operation room, with optional air conditioning system, clothes tree and ash boxes, and the working environment is more humanity.
4. The seat has two-way regulating functions, for both work and rest.
5. Professional and technical service guarantee, 24 hours service, timely and quickly.
6. Optional assembled with digging bucket, rotating bucket and other devices to achieve versatility.
7. Wolwa grab (with sugarcane machine) is equal to the machine hands: widely used in sanitation landfill, loading and unloading waste paper recycling, and scrap metal recycling.
DLS890-9A Sugarcane Grapple Excavator, Timber Loader
Wheeled Sugarcane Wood Loader | Unit | DLS890-9A | |
Operating Weight | kg | 8000 | |
Power | kw/rpm | 56kw/2200rpm | |
Dimensions
| Upper Structure Width | mm | 2140 |
Cab Width | mm | 950 | |
Machine Height | mm | 2775 | |
Transportation Length | mm | 6450 | |
Overall Height | mm | 1600 | |
Grab Weight | kg | 293 | |
Outline Dimension | mm | 1335*814*1280 | |
Opening Width | mm | 1260 | |
Ground Clearance(bob-weight) | mm | 1030 | |
Tyre Gauge | mm | front:1650, rear:1610 | |
Wheel Shaft Diameter | mm | 2400 | |
Mouldboard Width | mm | 2140 | |
Mouldboard Height | mm | 310 | |
Operating Scope | Boom Length | mm | 3500 |
Arm Length | mm | 1800 | |
Max. Loading Range | mm | 7057 | |
Max. Loading Weight | kg | 500 | |
Max. Discharging Height | mm | 6400 | |
Specifications
| Working Pressure | Mpa | 21 |
Rated Flow | L/min | 2*55 | |
Swing Speed | rpm | 0-14 | |
Travel Speed | km/h | 0-30 | |
Max. Hauling Force | kn | 47 | |
Max. Torque | n.m/rpm | 292/1600 | |
Grade Ability | ° | 25 | |
Fuel Tank | L | 127 | |
Hydraulic Oil Tank | L | 118 | |
Rated Capacity | ml/r | 2*25 | |
Wolwa DLS890-9A 8t Sugarcane Grapple Excavator, Timber Grab Loader
•Direct factory supplier ,Well and High Quality Control
Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is a professional hydraulic excavator manufacturer integrating scientific research, production and sales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000 square meters of production workshop with international advanced level and 8,000 square meters of R & D center. It has the production capacity with an annual output of 10,000 sets of construction machinery and 20,000 sets of hydraulic parts. The company has the honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100 Enterprise.
Our main leading products are DLS865-9A DLS880-9A DLS890-9A DLS100-9A Wheeled Hydraulic Excavator, DLS880-9A DLS890-9A Wheeled Sugarcane Wood Loader, DLS118-9A Wheeled Hydraulic Stacker, DLS865-9B DLS865-10B DLS880-9B DLS100-9B DLS130-9 DLS160-9 Crawler Hydraulic Excavator etc.
We also specializes in the sales of other construction machinery and agricultural equipment such as desiccated underground crusher, welding workstation, truck cranes, wheel loaders, skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar processing machinery and so on.
Our company has passed the ISO9001:2008 authentication, and got European Union CE certificate. Our products are exported to many countries such as Russia, Belarus, Iran, Vietnam, Five Central Asian Countries, Africa and other countries all over the world.
