Wolwa New Wheeled Excavator DLS100-9A With High Quality

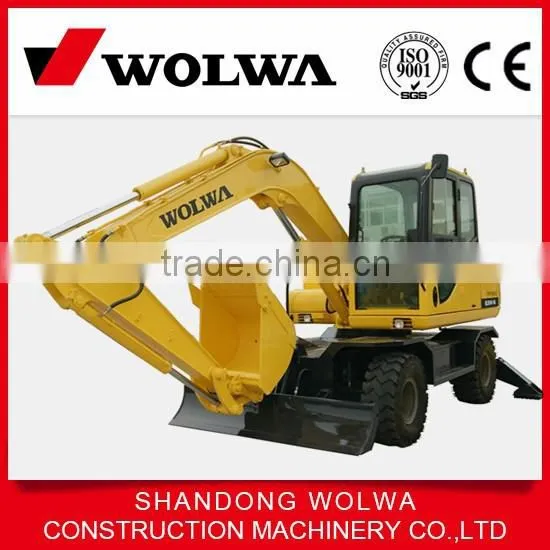

Wolwa New Wheeled Excavator DLS100-9A With High Quality photo-1
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
WOLWA
Model Number:
DLS100-9A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name WOLWA
Model Number DLS100-9A
Condition New
Moving Type Wheel Excavator
Operating Weight 10600 kg
Bucket capacity 0.35 m³
Maximum Digging Height 7508 mm
Maximum Digging Depth 3926 mm
Machine Weight 9700 kg
Max Digging Radius 6503 mm
Rated Speed 0-20km/h
Certification ce.iso
After-sales Service Provided Engineers available to service machinery overseas





  wheeled hydraulic stacker DLS100-9A

wolwa new wheeled excavator DLS100-9A with high quality



 Equipped with strong engine system and international advanced hydraulic system, with the pilot-turning function, high speed of arm and bucket, to improve the working efficiency.



1. Silicone oil rubber damper equipped in the cab,suspended seat,air-conditioning system, and good pilot-operating system, for workers to operate naturally and accurately, and reduce the tiredness of workers.



  2. The newly designed dozer blade with large scope of raising and descending, is suitable for road,piping and other complex working condition.   Besides, the optimal design of the leg is adaptable to rough road, to ensure the stability of the whole machine.

 3. Intelligient controller monitor the machine.When there is something wrong with the enginge   fuel oil,water temperature, and the engine oil pressure, reminding information would be   displayed on the LCD, for the worker to read easily.   Structural parts is made from domestic high quality 16Mn steel, with advanced welding technology, greatly increasing the structural strength,to   ensure construction safety. The whole machine is vehiche shot blasted, increasing the adhesion   of painting, to delay component corrosion and improve service life.



Working weight:9700KG  Bucket volume:0.35 m3  Power:75KW/2200rpm



DLS100-9A Wheel Excavator
SPECIFICATION
WORKING PRESSURE Mpa 28
RATED FLOW L/min 2*79.2
SWING SPEED rpm 12
TRAVEL SPEED Km/h 0-20
BUCKET DIGGING FORCE KN 57.7
ARM DIGGING FORCE KN 41.9
MAX HAULING FORCE KN 58.2
MAX TORQUE N.m/rpm 400/1500
GRADEABILITY ° 20
FUEL TANK L 155
HYDRAULIC OIL TANK L 110
SPECIFIED DISCHARGE ml/r 2*36
DIMENSION
OVERALL WIDTH mm 2238
OVERALL HEIGHT(cab top) mm 2900
OVERALL LENGTH mm 6932
GROUND CLEARANCE(bob-weight) mm 1110
MIN GROUND CLEARANCE mm 362
TYRE GAUGE mm 2210
WHEEL BASE mm 2400
MOULDBOARD WIDTH mm 2234
MOULDBOARD HEIGHT mm 460
OPERATING SCOPE
BOOM LENGTH mm 3908
STICK LENGTH mm 1748
MAX DIGGING REACH mm 6750
MAX DIGGING DEPTH mm 3926
MAX DIGGING HEIGHT mm 7508
MAX DUMPING HEIGHT mm 5321
MIN SWING RADIUS mm 2140
REAR-END SEINGRADIUS mm 2191
MAX FLOORING REACH mm 3558
MAX HADE DIGGING DEPTH mm 6503

















wolwa new wheeled excavator DLS100-9A with high quality

wolwa new wheeled excavator DLS100-9A with high quality



wolwa new wheeled excavator DLS100-9A with high quality
