DLS190-9A 20t Wheel Excavator

DLS190-9A 20t Wheel Excavator thumbnail-1
DLS190-9A 20t Wheel Excavator photo-1
US$ 60,000 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Wolwa
Model Number:
DLS190-9A
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Wolwa
Model Number DLS190-9A
Condition New
Moving Type Wheel Excavator
Operating Weight 20t
Bucket capacity 0.8m³
Maximum Digging Height 9585mm
Maximum Digging Depth 5735mm
Machine Weight 20t
Max Digging Radius 9445mm
Rated Speed 0-8/28km/h
Certification CE & ISO9001:2008
After-sales Service Provided Engineers available to service machinery overseas



Product Description

DLS190-9A 20T Wheel Hydraulic Excavator

DLS190-9A wheel hydraulic excavator’s main components are the international famous brand products. By adopting world advanced mature hydraulic technology, mechanical processing technology and electromechanical integration technology, it ensures the excellent performance and high efficiency and reliability of the excavator.



DLS190-9A 20T Wheel Hydraulic Excavator Product Features

1. The engine, the main pump, main valve and other major components are used international famous brand products.

2.  The twin pump double loop high pressure variable, cross power regulation, negative flow control, can make full use of engine power;

3.  The advanced electromechanical integration control system can choose different power modes according to the different work modes. It has high efficiency and it can save energy. The electronic monitoring system is always monitoring the machine status and will give sound and light alarm and display related malfunction.

4.  The walking system adopts hydraulic centralized transmission system. The dependent hydraulic power steering system makes steering steady with less strength.

5. It can be applied to road construction, airport and harbor construction, urban construction, municipal construction and the excavation, unloading and smoothen operation in pipeline laying and other construction.



DLS190-9A 20T Wheel Hydraulic Excavator Parameters

Specifications

Operating Weight

20t

Bucket Capacity

0.8 m³

Power

129kw/2200rpm

Diesel Engine Manufacturer

Cummins

Engine Model

6B-5.9

Engine Power

129kw/2200rpm

Hydraulic Flow Rate

2*200L/min

Hydraulic Pressure

32mpa

Traveling Speed

0-8/28km/h

Gradeability

40%

Swing Speed

12.5rpm

Arm Digging Force

90kn

Bucket Digging Force

120kn

Operating Scope

Max. Digging Height

9585mm

Max. Dumping Height

6775mm

Max. Digging Depth

5735mm

Max. Digging Radius

9445mm

Dimensions

Overall Length

9555mm

Overall Width

2720mm

Overall Height of Boom

3450mm

Overall Height of Cab

3255mm

Engine Cover Height

2685mm

Counterweight Clearance

1435mm

Ground Clearance

400mm

Upper Structure Width

2685mm

Rear-end Swing Radius

2845mm

Wheelbase

2960mm

Overall Width of Blade

2400mm

Overall Height of Blade

630mm

Blade Extended Reach

1345mm

Overall Width With Outrigger Extended

3835mm

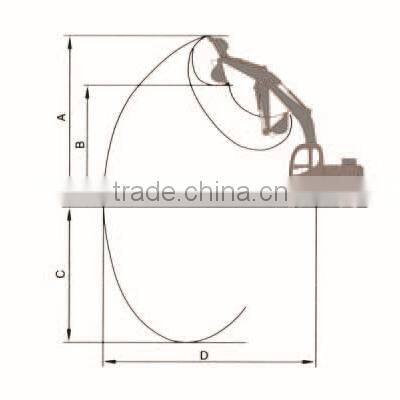

DLS190-9A 20t Wheel Excavator

Arm Length

2400mm

A Max. Digging Height

9585mm

B Max. Dumping Height

6775mm

C Max. Digging Depth

5735mm

D Max. Digging Radius

9445mm

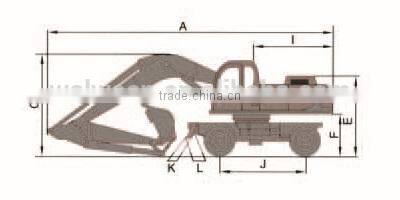

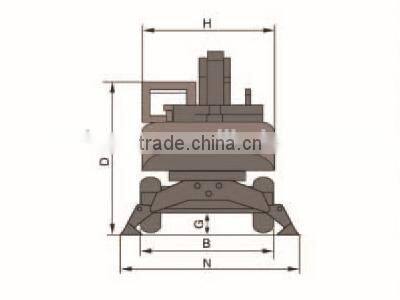

DLS190-9A 20t Wheel ExcavatorDLS190-9A 20t Wheel Excavator

A  Overall Length

9555mm

B  Overall Width

2720mm

C  Overall Height of Boom

3450mm

D  Overall Height of Cab

3255mm

E  Engine Cover Height

2685mm

F  Counterweight Clearance

1435mm

G  Ground Clearance

400mm

H  Upper Structure Width

2685mm

I   Rear-end Swing Radius

2845mm

J   Wheelbase

2960mm

K  Overall Width of Blade

2400mm

L  Overall Height of Blade

630mm

M  Blade Extended Reach

1345mm

N  Overall Width With Outrigger Extended

3835mm



Packaging & Shipping

Wolwa DLS190-9A 20T Hydraulic Wheel Excavator

DLS190-9A 20t Wheel ExcavatorDLS190-9A 20t Wheel ExcavatorDLS190-9A 20t Wheel Excavator



Our Services

•Direct factory supplier ,Well and High Quality Control

•Our products with world first-class quality and On-Time Delivery
•Competitive price with excellent quality
•A great variety of different models to meet customer requirements
•Exported to Southeast Asia, Africa, Europe and other regions
•A full-service system integrating manufacture, distribution, repair service and domestic & International trade
•Our service is as close as your phone
•Customer satisfaction is our highest pursuit
•Located in China's newest economic zone Qingdao– the most convenient port city to middle and south Asia and middle east countries
•Highly trained team members with overseas working experience
•The very strong and professional R & D Team
•Response quickly with effective information in 12 hours
•Provide timely professional technical support service
•Not only to sell but to solve customers’ problems
•Considerate after-sale service
Company Information

Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is a professional hydraulic excavator manufacturer integrating scientific research, production and sales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000 square meters of production workshop with international advanced level and 8,000 square meters of R & D center. It has the production capacity with an annual output of 10,000 sets of construction machinery and 20,000 sets of hydraulic parts. The company has the honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100 Enterprise.

Our main leading products are DLS865-9A DLS880-9A DLS890-9A DLS100-9A Wheeled Hydraulic Excavator, DLS880-9A DLS890-9A Wheeled Sugarcane Wood Loader,  DLS118-9A Wheeled Hydraulic Stacker, DLS865-9B DLS865-10B DLS880-9B DLS100-9B DLS130-9 DLS160-9 Crawler Hydraulic Excavator etc.

We also specializes in the sales of other construction machinery and agricultural equipment such as desiccated underground crusher, welding workstation, truck cranes, wheel loaders, skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar processing machinery and so on.

Our company has passed the ISO9001:2008 authentication, and got European Union CE certificate. Our products are exported to many countries such as Russia, Belarus, Iran, Vietnam, Five Central Asian Countries, Africa and other countries all over the world.
