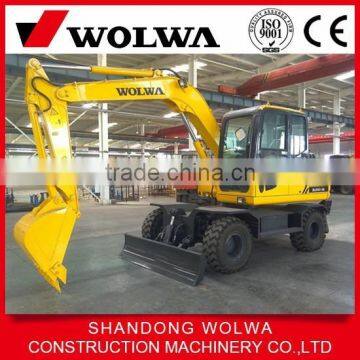

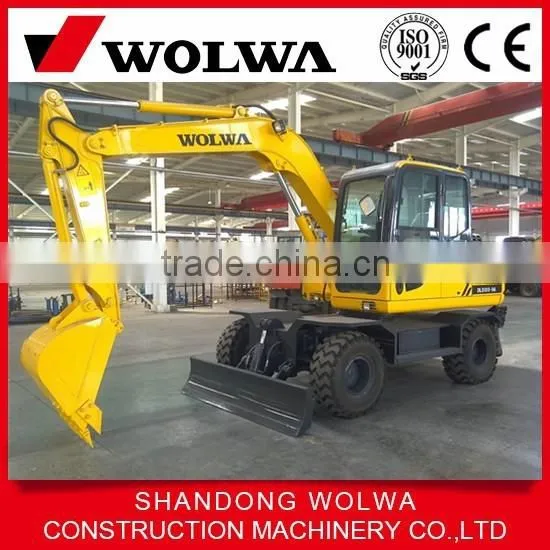

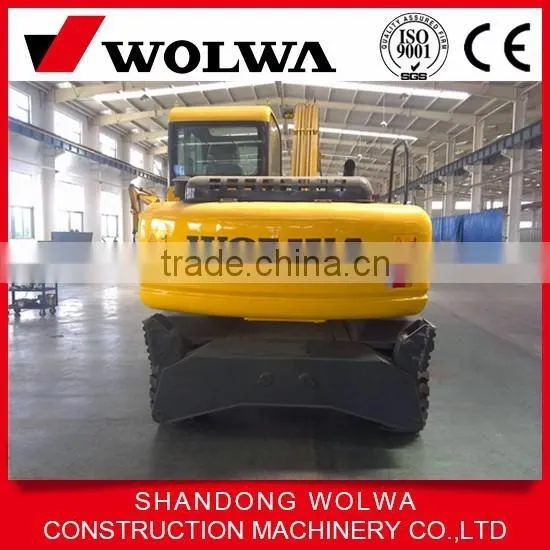

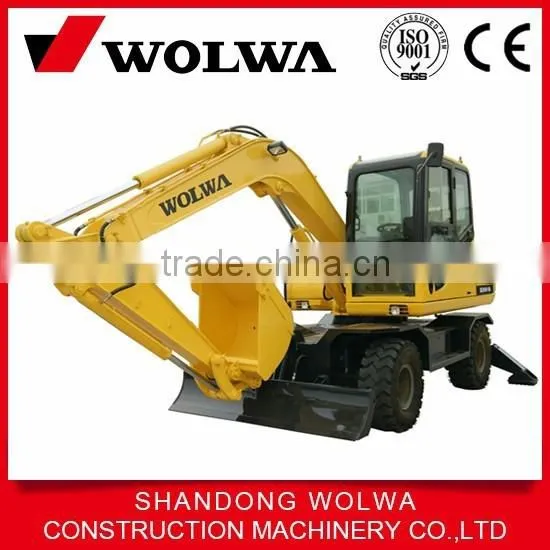

Wolwa DLS100-9A 10t Wheel Shovel Excavator
Product features:
1. The main components used in hydraulic system for the international famous brand, independent of the guide system, the performance of the perfect matching, reasonable layout and interior space.
2. Enhanced turntable, super long arm work, a larger scope of work, more widely to adapt to the environment.
3. Stable and reliable chassis, with a shovel, leg, can fully hydraulic support before and after, with all the ground lifting capacity. Chassis to wash your hands with a box, toolbox and butter bucket support tools.
4. Driving indoor air conditioning, stereo, luxury seats, manipulation and comfortable.
It is widely used for many fields such as building industry, manufacture, agriculture, irrigation works, construction, military field and complex working conditions.

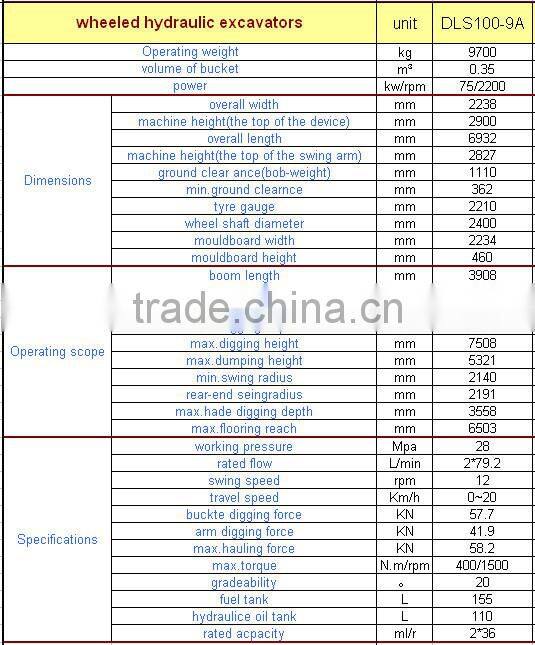

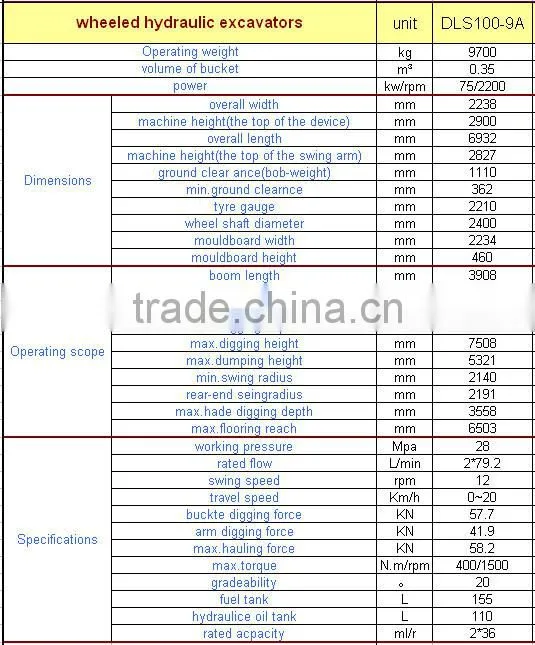

10t Wheel Shovel Excavator Parameters
Wheeled Hydraulic Excavator | Unit | DLS100-9A | |
Operating Weight | kg | 9700 | |
Volume of Bucket | m³ | 0.35 | |
Power | kw/rpm | 74kw/2200rpm | |

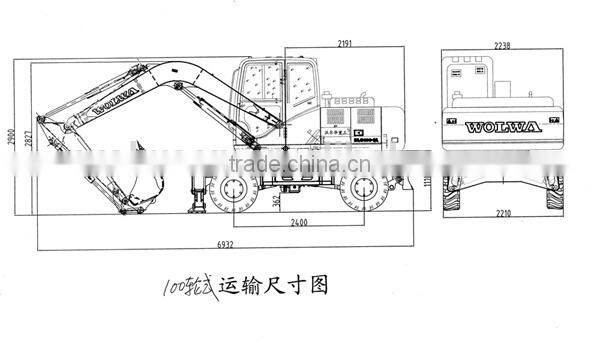

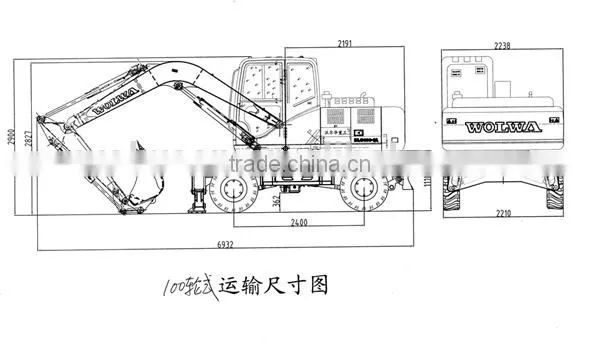

Dimensions
| Overall Width | mm | 2238 |
Machine Height (to cab top) | mm | 2900 | |
Overall Length | mm | 6932 | |
Ground Clearance(bob-weight) | mm | 1110 | |
Min. Ground Clearance | mm | 362 | |
Tyre Gauge | mm | 2210 | |
Wheel Shaft Diameter | mm | 2400 | |
Mouldboard Width | mm | 2234 | |
Mouldboard Height | mm | 460 | |

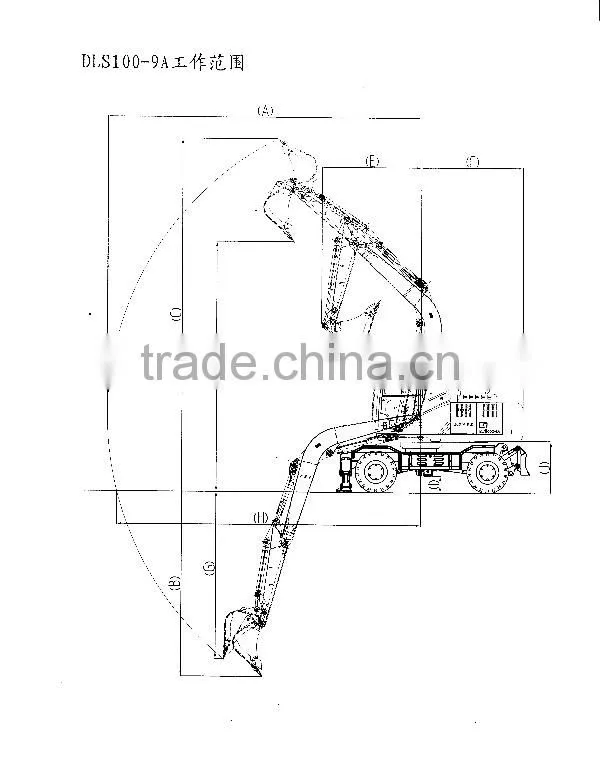

Operating Scope
| Boom Length | mm | 3908 |
Arm Length | mm | 1748 | |
Max. Digging Reach | mm | 6705 | |
Max. Digging Depth | mm | 3926 | |
Max. Digging Height | mm | 7508 | |
Max. Dumping Height | mm | 5321 | |
Min. Swing Radius | mm | 2140 | |
Rear-end Swing Radius | mm | 2191 | |
Max. Vertical Digging Depth | mm | 3558 | |
Max. Flooring Reach | mm | 6503 | |
Specifications
| Engine Model |
| 4BTAA3.9-C100 |
Working Pressure | Mpa | 28 | |
Rated Flow | L/min | 2*70.4+20.7 | |
Swing Speed | rpm | 12 | |
Travel Speed | km/h | 0-20 | |
Bucket Digging Force | kn | 57.7 | |
Arm Digging Force | kn | 41.9 | |
Max. Hauling Force | kn | 58.2 | |
Max. Torque | n.m/rpm | 400/1500 | |
Grade Ability | ° | 20 | |
Fuel Tank | L | 155 | |
Hydraulic Oil Tank | L | 110 | |
Rated Capacity | ml/r | 2*36+9.3 | |

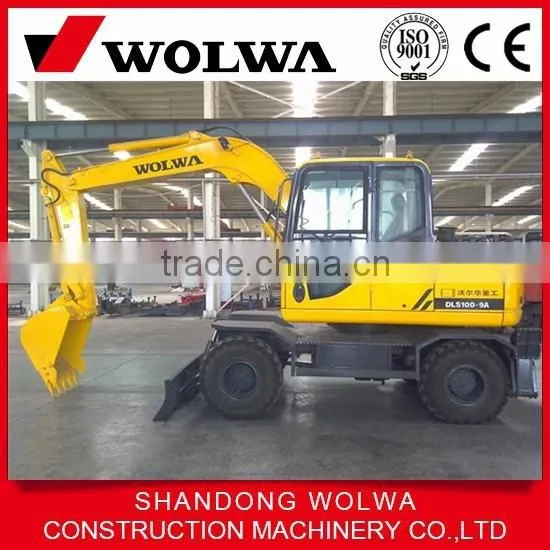

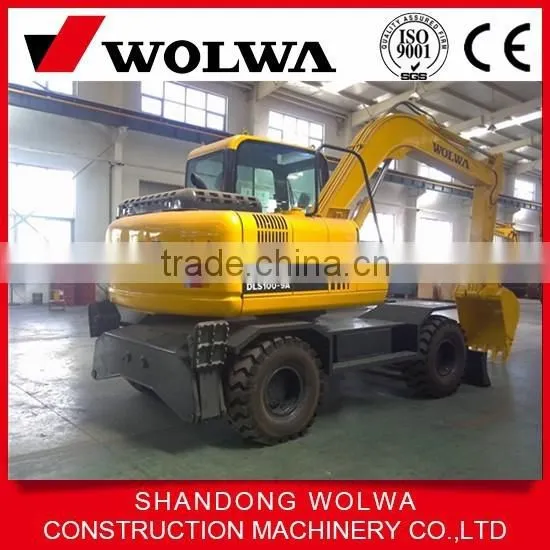

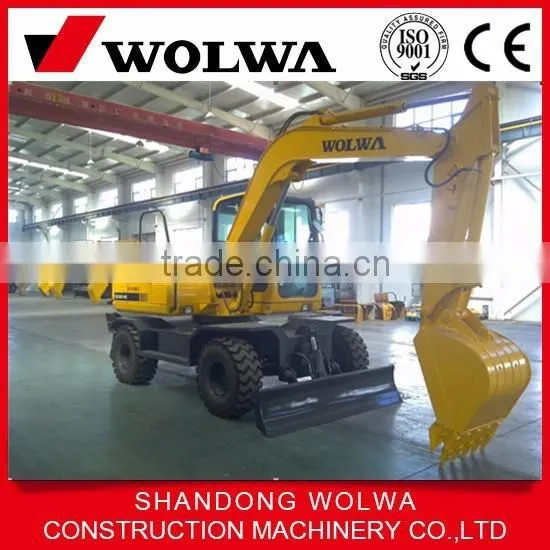

Wolwa DLS100-9A 10T Wheel Shovel Excavator Packaging and Shipping Photos
•Direct factory supplier ,Well and High Quality Control
Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is a professional hydraulic excavator manufacturer integrating scientific research, production and sales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000 square meters of production workshop with international advanced level and 8,000 square meters of R & D center. It has the production capacity with an annual output of 10,000 sets of construction machinery and 20,000 sets of hydraulic parts. The company has the honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100 Enterprise.
Our main leading products are DLS865-9A DLS880-9A DLS890-9A DLS100-9A Wheeled Hydraulic Excavator, DLS880-9A DLS890-9A Wheeled Sugarcane Wood Loader, DLS118-9A Wheeled Hydraulic Stacker, DLS865-9B DLS865-10B DLS880-9B DLS100-9B DLS130-9 DLS160-9 Crawler Hydraulic Excavator etc.
We also specializes in the sales of other construction machinery and agricultural equipment such as desiccated underground crusher, welding workstation, truck cranes, wheel loaders, skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar processing machinery and so on.
Our company has passed the ISO9001:2008 authentication, and got European Union CE certificate. Our products are exported to many countries such as Russia, Belarus, Iran, Vietnam, Five Central Asian Countries, Africa and other countries all over the world.
