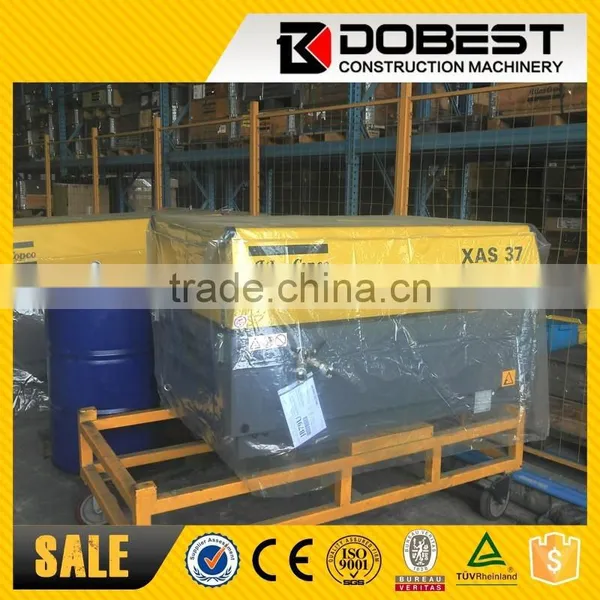

High Quality 18.5KW Diesel Portable Air Compressor Atlas Copco XAS37

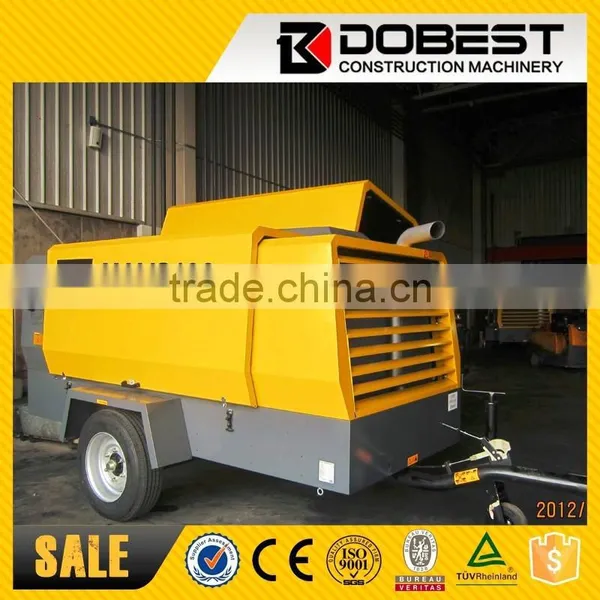

Trailer Mounted Type Mobile Air Compressor, Screw Air Compressor 70cfm
Free Air Delivery 2m3/min
Atlas Copco Portable Air Compressor
Model: XAS 37Kd
Screw Portable Air Compressor
Free air delivery: 2m3/min
Discharge pressure: 7bar
Power: 18.5KW
Kubota Engine, D905, 3600RPM
Dimensions:2559*1305*1151mm
Heavy duty filter
A single, high performance two- stage air intake filter with service indicator is standard. It prevents dust and dirt particles from entering the engine and the compressor.
Centralized controls
All controls are grouped on a single panel, covered by a rigid plastic cover for safety and ease of operation.
For the Rental Industry
Atlas Copco designed a small single tool compressor, fitting the needs of the rental industrie. The new XAS 37 Kd and the XAS 47 Kd use the proven Series 7 concept and are equipped with a 3-cylinder water- cooled Kubota engine. They are developed with the rental customer in mind; Small, easy to use and reliable.
Built and tested to ISO 9001 quality assurance standards
Atlas Copco's stringent manufacturing standards follow ISO 9001 quality assurance regulations. All compressors are produced and tested to exacting standards for optimum performance in the most demanding conditions.
Atlas Copco - the world leader in portable air compressors
One in three compressors sold throughout the World is manufactured by Atlas Copco. Produced in the World's largest dedicated compressor manufacturing plant, our advanced research and development and proven products ensure we offer the best solution for all your compressed air needs.
Improved serviceability
The removable side panels, front- and rear baffle and the one piece canopy, supported by two gas struts, provide fast and easy service access.
All body parts are made of a new type of powder coated zincor steel for excellent corrosion resistance.
High efficiency
The combination of a high efficient engine and the Atlas Copco compressor element guarantees high efficiency and reduced wear.
Low operational cost, high fuel autonomy
A stepless and fully automatic regulator varying the engine speed ensures a reduced power and fuel consumption. In combination with the high capacity fuel tank, the Series 7 allows you to work a full shift without refueling
Designed for the environment
All Series 7 compressors meet current European and US legal requirements relating to the working environment and regulations concerning safety, exhaust emissions and noise. Kubota D905, D1105 and Deutz 2011 engines fully comply with COM III and TIER II exhaust emission regulations. All models comply with the outdoor noise directive 2000/14/EC Stage II.
Atlas Copco has fully implemented its Environmental Management System into the design and manufacture process of the machines, fulfilling the requirements of ISO 14001
Lubricator
All 7 bar models are available with a 1 litre lubricator. The flow of the lubricating oil can be controlled by a knob at the side of the lubricator. A level indicator is foreseen to prevent running without lubricator oil.
Hose reel
Series 7 models can be supplied with a 20m capacity hose reel. Manufactured from tough polyethylene, it is supplied with a 3/4" reinforced hose. The hose can be operated directly from the reel.
Technical Parameter
Compressor Data |
XAS37Kd |
Free Air Delivery @ Normal Working Pressure |
2m³/min (33L/S) |
Normal Working Pressure |
7bar |
Minimum / Maximum Unloading Pressure |
4 / 8.8 bar |
|
|
Compression Stages |
1 |
Air Receiver Capacity |
9.3L |
Compressor Oil Capacity |
5.5L |
Approximate Air Outlet Temperature |
83°C (Standard) |
Typical oil content of compressed air |
<5 mg/m³ |
|
|
Fuel Tank Capacity |
L |
Outlet Valve Configuration |
2 x 3/4” G |
|
|
Nominal working condition |
Inlet pressure 1bar,Humidity0%,Temp20 °C |
Sound Pressure Level (ISO2125) |
72 dB(A) +/- 3 |
|
|
Maximum Ambient Temperature at sea level |
45°C |
Maximum Altitude |
5000m |
Minimum Starting Temperature |
-10 °C / -25 °C (with assist) |
|
|
Diesel Engine Data |
KUBOTA D905 |
|
|
Horsepower Developed @ Rated Speed |
18.5kW |
Cylinders |
3 |
Cooling System |
Oil |
Engine Coolant Capacity |
—— |
Engine Oil Capacity |
4.5Liter |
|
|
Unloaded Speed / Maximum Loaded Speed |
2400 / 3600RPM |
|
|
Dimensions |
Standard Towing Speed 20 km/h |
Length |
2730mm ( within towbar) |
Width |
1305mm |
Height |
1151mm |
Weight ( filled with oil & coolant , Initial fuel ) |
650kg |
Diesel Driven Portable Air Compressor Series
Working pressure (bar) |
Air delivery |
Model |
Engine |
Compression stage |
||||
Normal |
Range |
m3/min |
L/S |
Brand |
Model |
Motor power |
||
7 |
4/8.8 |
2.0 |
33 |
XAS37 Kd |
KUBOTA |
D905 |
18.5KW |
1 |
7 |
4/8.8 |
2.5 |
43 |
XAS4 Kd |
KUBOTA |
D1105 |
19.4KW |
1 |
7 |
4/13.5 |
1.92 |
37 |
XAHS37 Dd |
DEUTZ |
D2011L02 |
21.6KW |
1 |
7 |
3.6/8.7 |
3.0 |
50 |
XAS57 Dd |
DEUTZ |
D2011L02 |
23.3KW |
1 |
7 |
2.9/8.7 |
3.7 |
62 |
XAS67 Dd |
DEUTZ |
F3M2011 |
32.5KW |
1 |
7 |
3.3/8.7 |
4.3 |
72 |

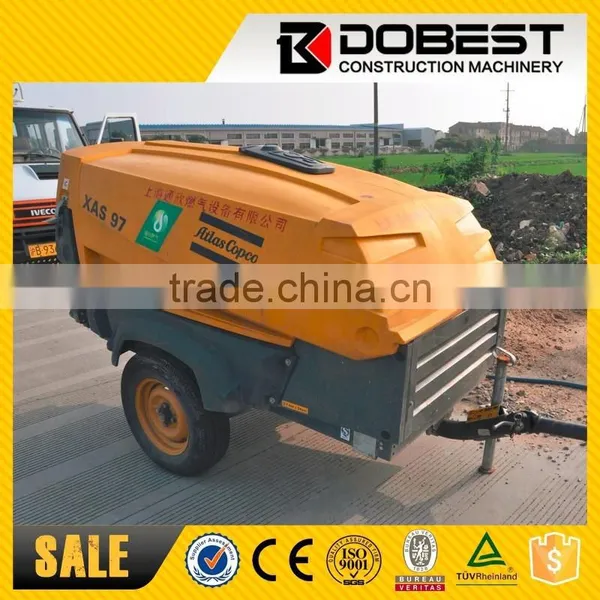

XAS77 Dd |
DEUTZ |
F3M2011 |
31.5KW |
1 |
7 |
4/8.5 |
5.3 |
89 |
XAS97 Dd |
DEUTZ |
F3M2011 |
36KW |
1 |
10.3 |
4/11.8 |
10.0 |
166 |
XATS156 Dd |
DEUTZ |
BF4M2012C |
55KW |
1 |
7 |
4/8.5 |
7.5 |
125 |
XAS137 Dd |
DEUTZ |
BF4M2011 |
58KW |
1 |
12 |
4/13.5 |
5.6 |
93 |
XAHS107 Dd |
DEUTZ |
BF4M2011 |
58KW |
1 |
14 |
4/15.5 |
8.0 |
133 |
XAVS136 Dd |
DEUTZ |
BF4M2012C |
88KW |
1 |
7 |
4/8.5 |
11.1 |
185 |
XAS186 Dd |
DEUTZ |
BF4M2012C |
88KW |
1 |
12 |
4/13.5 |
10.5 |
173 |
XAHS186 Dd |
DEUTZ |
TCD2013L04 |
104KW |
1 |
13.8 |
4/15.3 |
11.3 |
188 |
XAVS196 Dd |
DEUTZ |
BF4M1013FC |
118KW |
1 |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
