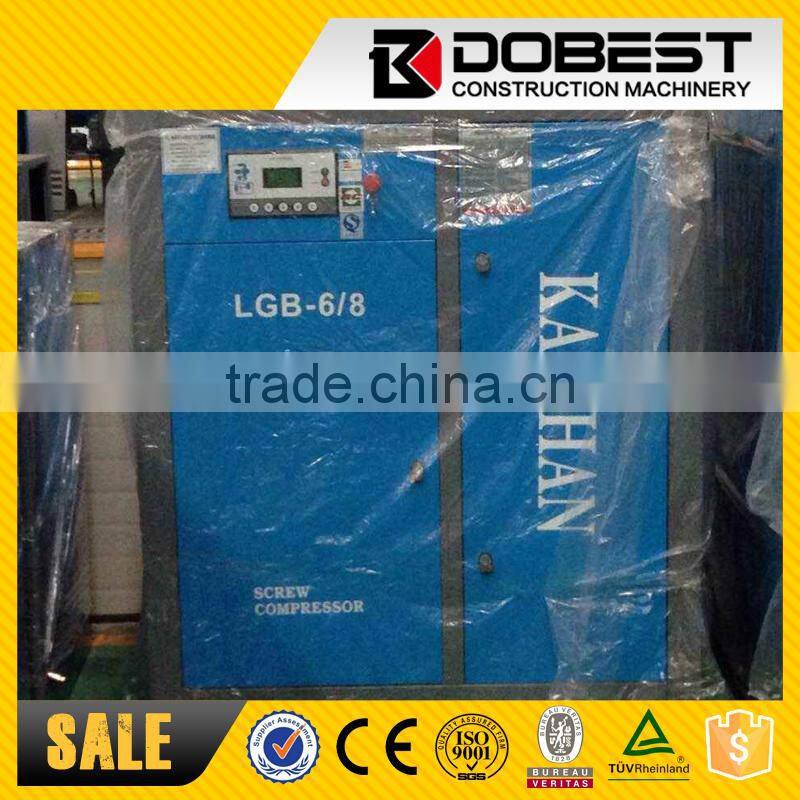

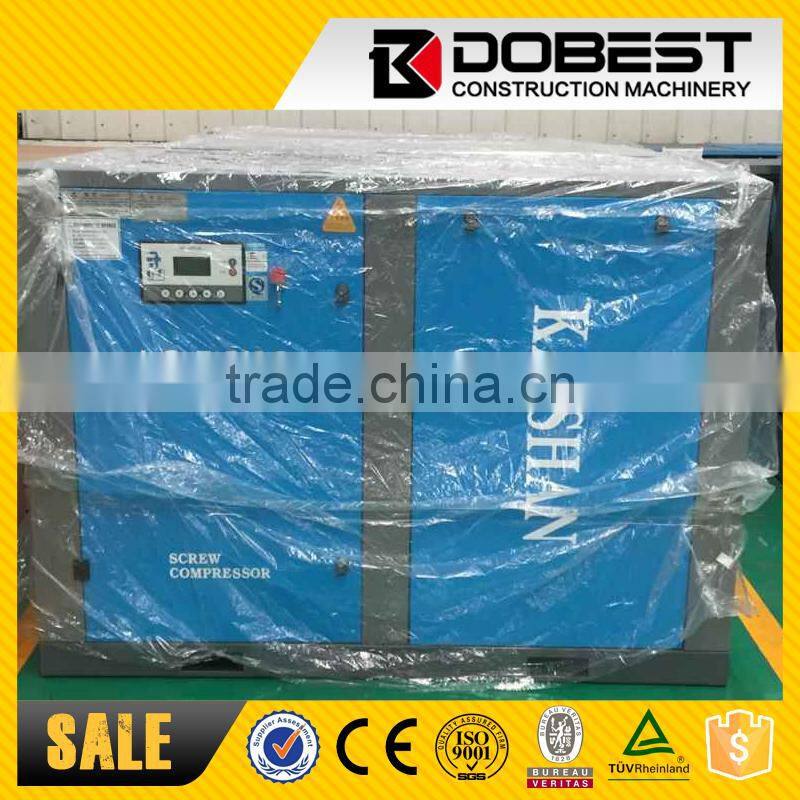

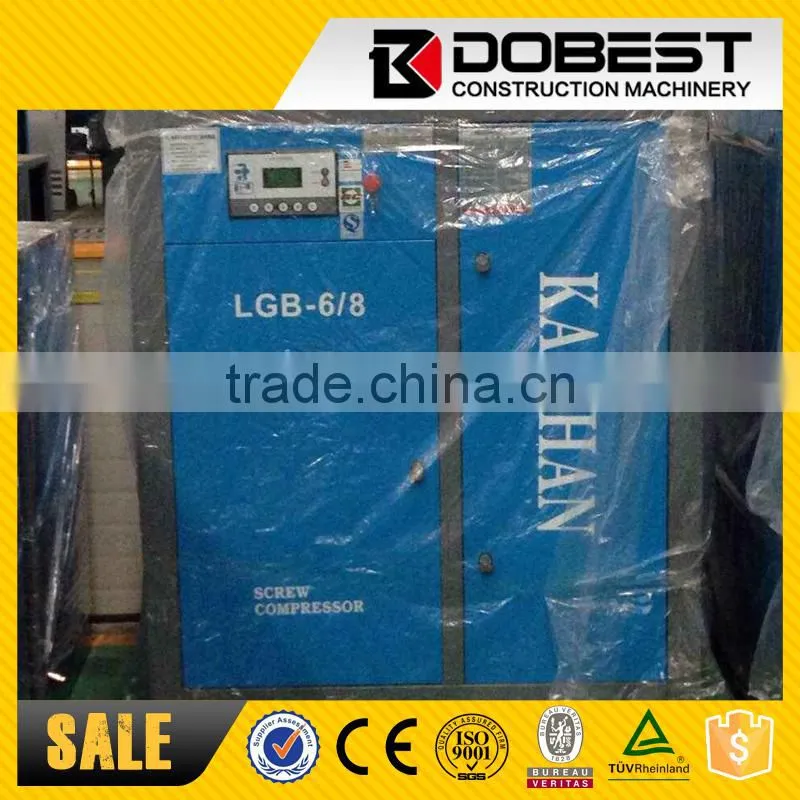

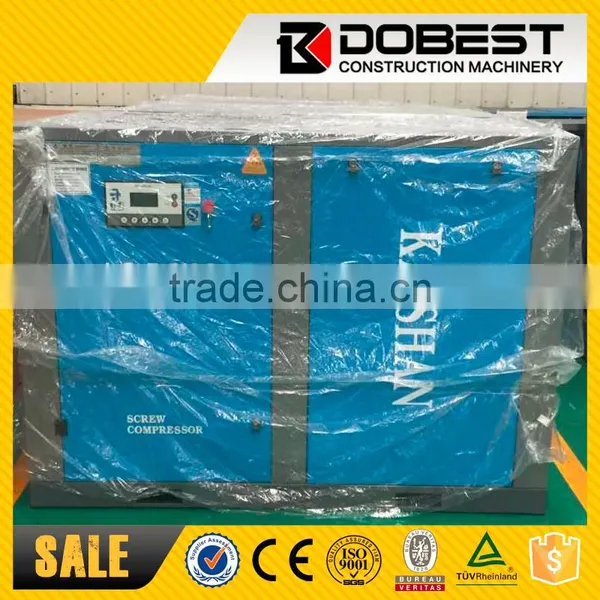

Chinese KAISHAN Stationary Type Electric Screw Air Compressor LG-6/8

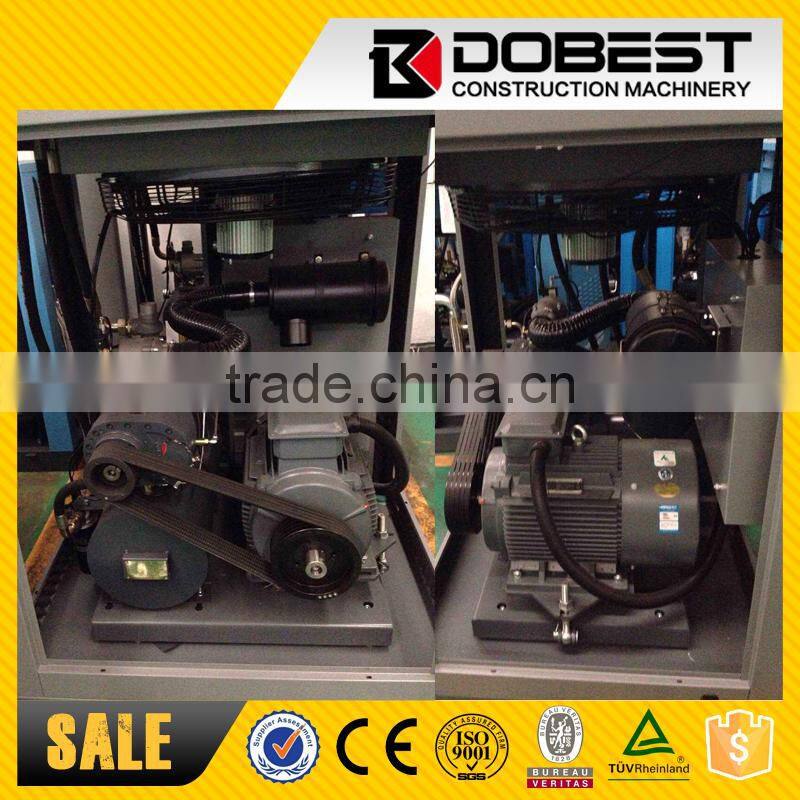

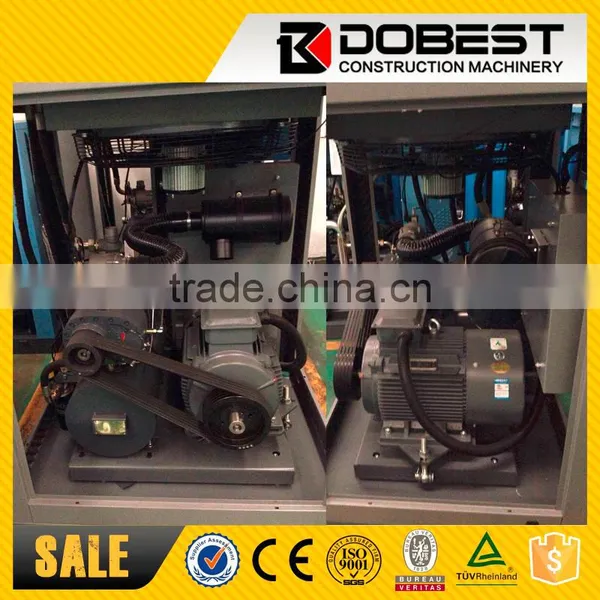

Belt Drive Screw Air Compressors
Free Air Delivery 6m3/min (213cfm)
Model: LG-6/8
Electric Driven Stationary Screw Air Compressor
Free air delivery: 6m3/min
Discharge pressure: 8bar
Power: Electric Power Driven
Dimensions: 1300*1100*1650mm
Application & Main Features:
Screw Air Compressors are widely used in highways, railways, mining, water conservancy, shipbuilding, urban construction, energy, military, and other industries.
LG screw compressor is available from 10 to 600 hp with capacities from 42 to 2600 cfm, and pressures up to 188 psig. It is esigned for indoor and outdoor installation, used a lot in the factory for sandblasting, textile industry, blowing machines etc. All units are fully packaged, ready for operation.
1.Fully seal and double screw, dual shockproof, smooth operation, can be installed anywhere.
2.With an elegant appearance and compact structure and over a small area.
3.Low exhaust temperature (only 7°C~10°C higher than the ambient temperature).
4.The intelligent control system completely satisfy the continuous cooperation without man work.
Technical Parameter
Model |
LG-6/8 |
Free air delivery |
6M3/min ; 213CFM |
Max working pressure |
0.8MPa; 116PSI |
Connector |
G1/2 |
Voltage |
380V/50HZ, 3phase (Or Customized by client) |
Power |
37KW / 50HP |
Noise level |
73 dB(A) |
Net weight |
1050KG |
Dimension |
1300*1100*1650mm |
Electric Driven Air Compressor Series
(Stationary Air Compressor/Portable Air Compressor for option)
Model |
Electrical power
|
Outlet quantities
|
Working pressure
|
Weight
|
Diemension
|
LG-1.2/8 |
7.5 |
1.2 |
0.8 |
400 |
1100×800×1500 |
LG-1.7/8 |
11 |
1.7 |
0.8 |
450 |
1100×800×1500 |
LG-2.4/8 |
15 |
2.4 |
0.8 |
500 |
1100×800×1500 |
LG-3/8 |
18.5 |
3 |
0.8 |
600 |
1200×880×1550 |

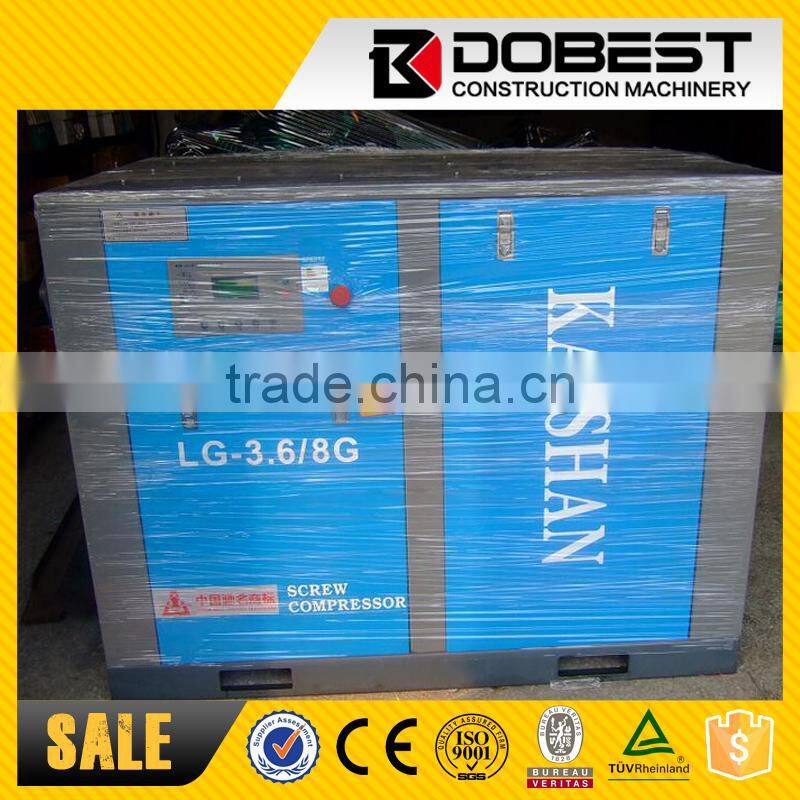

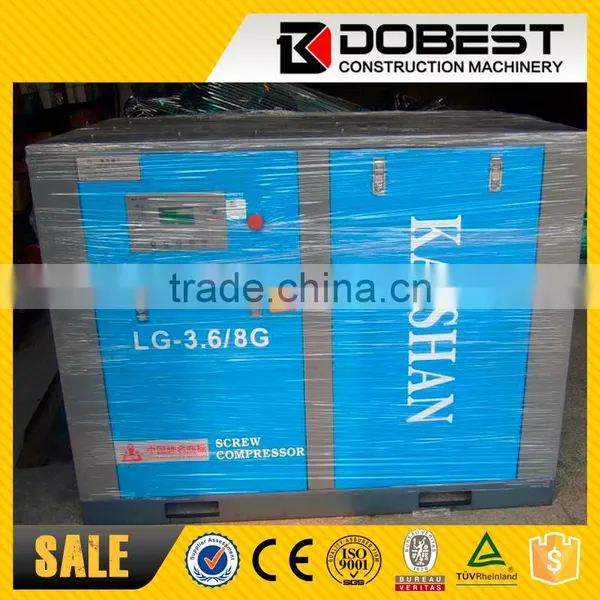

LG-3.6/8 |
22 |
3.6 |
0.8 |
650 |
1200×880×1550 |
|
LG-5.2/7 LG-5/8 LG-4.5/10 |
30 |
5.2 5 4.5 |
0.7 0.8 1.0 |
1000 |
1300×1100×1650 |
|

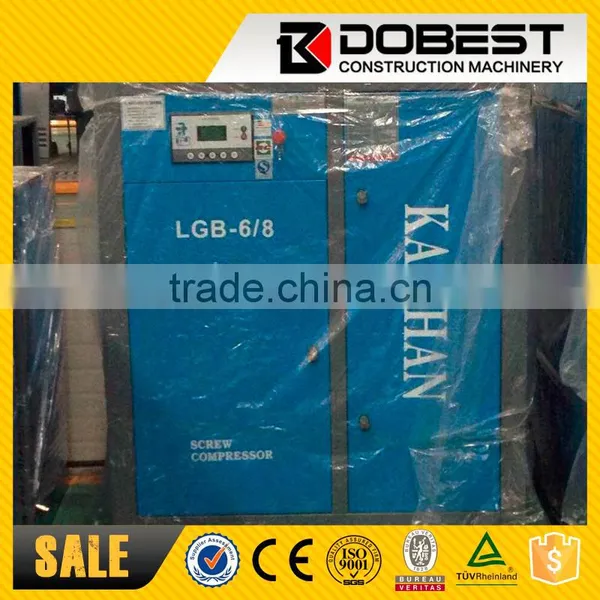

LG-5.6/10 LG-4.8/13 LG-6.0/8 LGB-5.6/10 LGB-4.8/13 |
37 |
5.6 4.8 6.0 5.6 4.8 |
1.0 1.3 0.8 1.0 1.3 |
1050 |
1300×1100×1650 |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
