Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Open Type Three Phase 50KVA 50HZ Diesel Generator Set

Open Type Three Phase 50KVA 50HZ Diesel Generator Set

Name: Open Type Three Phase 50KVA 50HZ Diesel Generator Set
Brand: DOBEST
SKU: 140737278
Availability: InStock

Open Type Three Phase 50KVA 50HZ Diesel Generator Set thumbnail-1

Open Type Three Phase 50KVA 50HZ Diesel Generator Set thumbnail-2

Open Type Three Phase 50KVA 50HZ Diesel Generator Set thumbnail-3

Open Type Three Phase 50KVA 50HZ Diesel Generator Set thumbnail-4

Open Type Three Phase 50KVA 50HZ Diesel Generator Set thumbnail-5

Open Type Three Phase 50KVA 50HZ Diesel Generator Set thumbnail-6

Open Type Three Phase 50KVA 50HZ Diesel Generator Set photo-1

Open Type Three Phase 50KVA 50HZ Diesel Generator Set photo-2

Open Type Three Phase 50KVA 50HZ Diesel Generator Set photo-3

Open Type Three Phase 50KVA 50HZ Diesel Generator Set photo-4

Open Type Three Phase 50KVA 50HZ Diesel Generator Set photo-5

Open Type Three Phase 50KVA 50HZ Diesel Generator Set photo-6

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

DOBEST

Model Number:

DG50-CF

Contact Supplier Request Quote Chat Now

Shanghai Dobest Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name DOBEST

Model Number DG50-CF

Output Type AC Three Phase

Speed 1500 rpm

Frequency 50HZ

Rated Power 40KW

Rated Voltage 380V-415V 220V-240V

Rated Current 72.1A

Product Description

Open Type Three Phase 50KVA 50HZ Diesel Generator Set

Genuine Cummins Diesel Engine Powered Generator Set 40KW

50kva to 1250kva Diesel Power Generator With Commins Engine

Generator: 50kva Cummins Diesel Genset

Generator set Model: DG50-CF

Power: 50kva

Engine Model: 4BTA3.9-G2

Alternator Brand: China Stamford

Control Panel: Smartgen

Open Type

Cummins 50KVA Diesel Generator Set Specification
Generator Set Model	DG50-CF
Prime Power(50HZ)	40kw/50kva
Rated Voltage	according to customers request
Output Frequency	50Hz
Power Facts	0.8
Starter Motor	DC 24V
Voltage Method	AVR
GB/T2820,GB/T12786-1991
Engine Specification
Engine Model	DCEC Cummins 4BTA3.9-G2, 4-cycle
Prime Power	56KW
Rated Rpm	1500rpm
Cylinder arrangement	4 in line
Air Intake System	Turbo, Water/Air cooling
Fuel System	AD type fuel pump
Cooling System	Water-cooled, 40°C Radiator As Standard, 50°C Is Optional
Governor Type	Electronic
Starter Motor	DC 24V
Bore * Stock	102*120(mm)
Exhaust System
Exhaust Gas Flow	14.8m3/min
Exhaust Temperature:	497℃
Max Back Pressure-	10kPa
Air Intake System
Max Intake Restriction:	6.23kPa
Burning Capacity:	5.9m3/min
Air Flow:	158m3/min
Fuel System
100%( Prime Power) Load:	216 g/Kw.h
75%(Prime Power) Load:	214g/Kw.h
50%(Prime Power)Load:	221 g/Kw.h
100%( Prime Power) Load	13.8L/h
Oil System
Total Oil Capacity	16.4L
Oil Consumption	≤4g/kwh
Engine Oil Tank Capacity	14.3L
Oil Pressure at Rated RPM	350kPa
Cooling System
Total Coolant Capacity	24L
Thermostat:	83-95℃
Max Water Temperature:	100℃
Alternator Specification
Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1,CSA22.2 and AS1359 standards.
Alternator Data
Alternator Model	HJI-40(Made in China)
Exciter Type	Brush-less, Self-excited
Connecting Type:	Single Phase
Rated Frequency	50HZ
Insulation Grade	H
Protection Grade	IP22
Insulation Class, Temperature Rise	H/H
Voltage Regulation, Steady State:	≤±1%
Alternator Efficiency	95.1%
GENERATING SET DATA
Voltage Regulation:		≥±5%
Voltage Regulation, Stead State:		≤±1%
Sudden Voltage Warp (100% Sudden educe):		≤+25%
Sudden Voltage Warp (Sudden Increase):		≤-20%
Voltage Stable Time (100% Sudden Reduce):		≤6S
Frequency Regulation, Stead State:		≤5% Adjustable

Product Pictures

Different Types For Option:

( Cummins, Doosan, Perkins, Volvo, Shangchai, Yuchai, Weichai, Xichai )

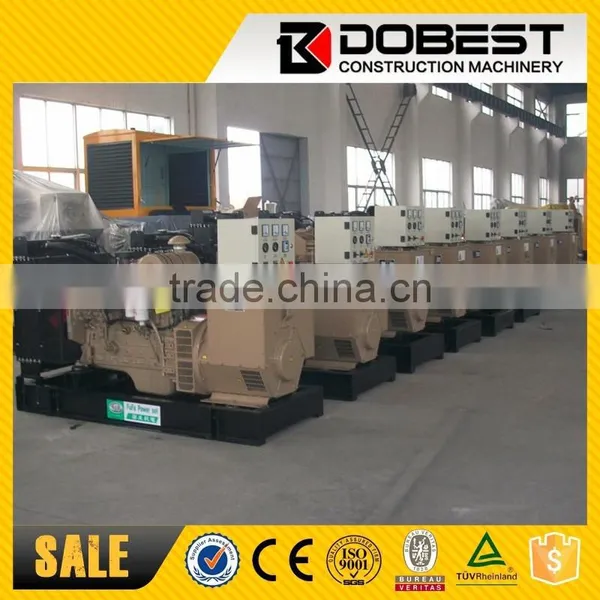

Open Type Diesel Generator Set

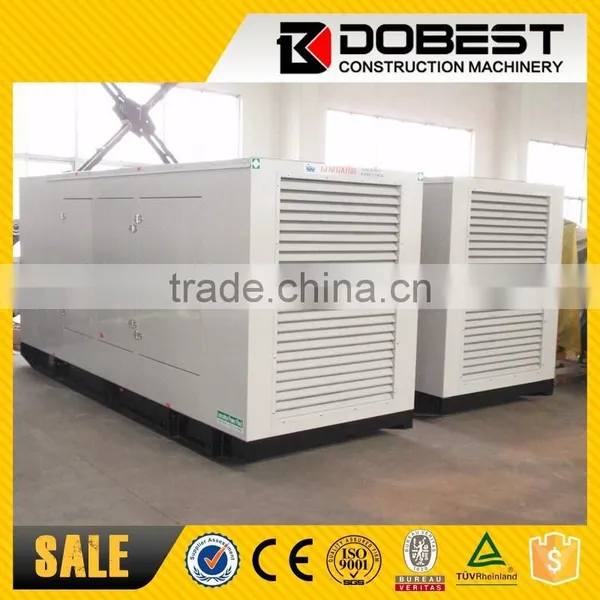

Weather Proof Type Diesel Generator Set

Sound Proof Type Diesel Generator Set

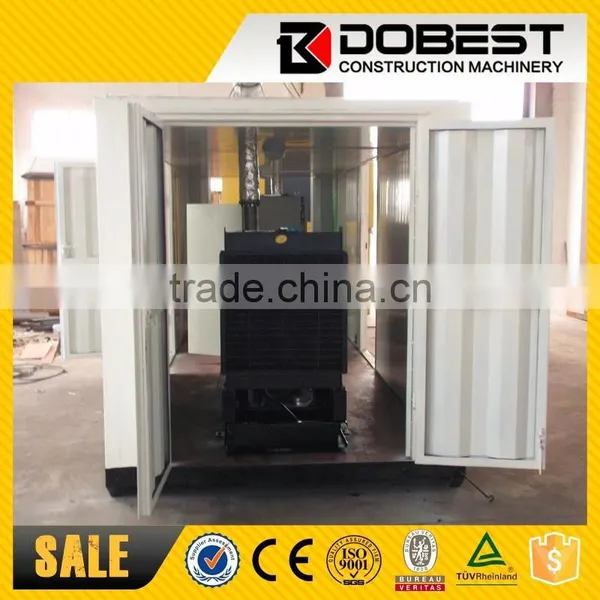

Container Type Mobile Diesel Gnerator Set

Trailer Type Portable Diesel Generator Set

Warranty & Services

The warranty covers the Product, for one (1) year from the documented date of purchase.

We promise excellent service under the warranty:

1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty

2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.

3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.

About Dobest Company

As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.

Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.

By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.

We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
