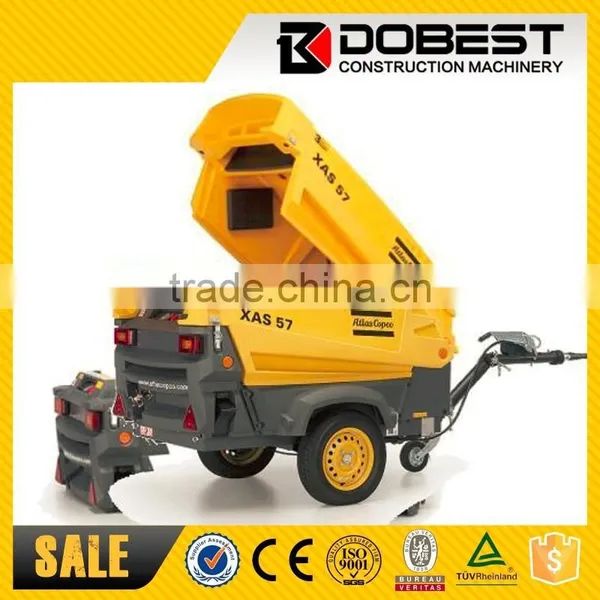

High Quality 23.3KW Diesel Engine Driven Portable Air Compressor Atlas Copco XAS57Dd
Trailer Mounted Type Mobile Air Compressor, Screw Air Compressor 105cfm
Free Air Delivery 3m3/min
Atlas Copco Portable Air Compressor Features
1) HardHat
2) Full compliance with 2000/14/EC, the latest European Outdoor Noise Directive
3) Years of experience and ongoing investment
4) Guaranteed free air delivery in accordance with ISO 1217 ed. 3 1996 annex D
5) A combination of a Polyethylene upper body and a chassis with a KTL epoxy layer coating with powder coat paint finish
6) Wide-opening canopy and removable side panels
7) High capacity transparent fuel tank
8) Few moving parts
9) Controls grouped on one panel
10) Engine speed adapts to air demand
11) Compliant with exhaust emission standards 97/68/EC Com III (Europe) & EPA Tier II (U.S.)
12) Long service intervals
13) Complete option list
Technical Parameter
Compressor Data |
XAS57 Dd |
Free Air Delivery @ Normal Working Pressure |
3m³/min (50L/S) |
Normal Working Pressure |
7bar |
Minimum / Maximum Unloading Pressure |
3.6 / 8.7 bar |
|
|
Compression Stages |
1 |
Air Receiver Capacity |
16.7L |
Compressor Oil Capacity |
8L |
Approximate Air Outlet Temperature |
93°C (Standard) |
Typical oil content of compressed air |
<5 mg/m³ |
|
|
Fuel Tank Capacity |
40L |
Outlet Valve Configuration |
3x 3/4” G |
|
|
Nominal working condition |
Inlet pressure 1bar,Humidity0%,Temp20 °C |
Sound Pressure Level (ISO2125) |
72 dB(A) +/- 3 |
|
|
Maximum Ambient Temperature at sea level |
45°C |
Maximum Altitude |
3000m |
Minimum Starting Temperature |
-10 °C / -20 °C (with assist) |
|
|
Diesel Engine Data |
DEUTZ D2011L02 |
|
|
Horsepower Developed @ Rated Speed |
23.3kW |
Cylinders |
2 in line |
Cooling System |
Oil |
Engine Coolant Capacity |
—— |
Engine Oil Capacity |
8Liter |
|
|
Unloaded Speed / Maximum Loaded Speed |
1850 / 2750RPM |
|
|
Dimensions |
Standard Towing Speed 20 km/h |
Length |
2927mm ( within towbar) |
Width |
1330mm |
Height |
1252mm |
Weight ( filled with oil & coolant , Initial fuel ) |
700kg |
Diesel Driven Portable Air Compressor Series
Working pressure (bar) |
Air delivery |
Model |
Engine |
Compression stage |
||||
Normal |
Range |
m3/min |
L/S |
Brand |
Model |
Motor power |
||
7 |
4/8.8 |
2.0 |
33 |
XAS37 Kd |
KUBOTA |
D905 |
18.5KW |
1 |
7 |
4/8.8 |
2.5 |
43 |
XAS4 Kd |
KUBOTA |
D1105 |
19.4KW |
1 |
7 |
4/13.5 |
1.92 |
37 |
XAHS37 Dd |
DEUTZ |
D2011L02 |
21.6KW |
1 |
7 |
3.6/8.7 |
3.0 |
50 |
XAS57 Dd |
DEUTZ |
D2011L02 |
23.3KW |
1 |
7 |
2.9/8.7 |
3.7 |
62 |
XAS67 Dd |
DEUTZ |
F3M2011 |
32.5KW |
1 |
7 |
3.3/8.7 |
4.3 |
72 |
XAS77 Dd |
DEUTZ |
F3M2011 |
31.5KW |
1 |
7 |
4/8.5 |
5.3 |
89 |
XAS97 Dd |
DEUTZ |
F3M2011 |
36KW |
1 |
10.3 |
4/11.8 |
10.0 |
166 |
XATS156 Dd |
DEUTZ |
BF4M2012C |
55KW |
1 |
7 |
4/8.5 |
7.5 |
125 |
XAS137 Dd |
DEUTZ |
BF4M2011 |
58KW |
1 |
12 |
4/13.5 |
5.6 |
93 |
XAHS107 Dd |
DEUTZ |
BF4M2011 |
58KW |
1 |
14 |
4/15.5 |
8.0 |
133 |
XAVS136 Dd |
DEUTZ |
BF4M2012C |
88KW |
1 |
7 |
4/8.5 |
11.1 |
185 |
XAS186 Dd |
DEUTZ |
BF4M2012C |
88KW |
1 |
12 |
4/13.5 |
10.5 |
173 |
XAHS186 Dd |
DEUTZ |
TCD2013L04 |
104KW |
1 |
13.8 |
4/15.3 |
11.3 |
188 |
XAVS196 Dd |
DEUTZ |
BF4M1013FC |
118KW |
1 |
