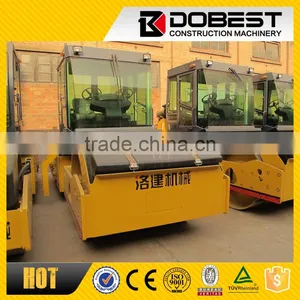

Help Center10 Ton Tandem Roller YZC10GS
Related Products
-
Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001US$ 31,000 - 33,000MOQ: 1 Unit -
10 Ton Single Drum Vibratory Road Roller LSS1001US$ 31,000 - 33,000MOQ: 1 Unit
-
320T/H Asphalt Mixing Plant RD320NegotiableMOQ: 1 Set
-
240T/H Asphalt Mixing Plant RD240NegotiableMOQ: 1 Set
-
200T/H Asphalt Mixing Plant RD200NegotiableMOQ: 1 Set
Tandem roller 10 Ton Self-propelled Vibratory Roller YZC10GS
China 10 Ton Double Drum Road Roller YZC10GS
10 ton road roller for sale, smooth drum roller
Tandem roller 10 ton best selling
Application:
YZC10GS is driven by machinery, vibrated by hydraulic, it is manufactured by the international advanced technology and its parts is used some of internal abroad high quality components.
The machine is heavy duty tandem vibratory roller, it is suitable for asphalt concrete, sand stone mixtures and dry cement concrete, so is general compaction equipments for highway, municipal road, parking area and industry ground etc. Mechanical travel drive, hydraulic vibration and steering with optimal function/worth ratio and reliable performance.
Spacious and comfortable cab with dual operator seats and dual steering wheels. The engine is Cummins diesel engine, and it is an environment-production, and low fuel consumption. Additionally, with cold start.
Main Features:
1. Mechanical travel drive, hydraulic vibration and steering with optimal function/worth ratio and reliable performance.
2. Dual operator seats and dual steering wheels, with good sight line of side compacting.
3. The machine adopts Cummins diesel engine, with large power storage, low fuel consumption, good performance of exhaust, with good start feature.
4. Front and rear electric controlled water spraying.
5. Closed cabin, equipped with cooling and heating air conditioner.
Technology specification:
Model |
YZC10GS |
|
Operating mass |
kg |
10000 |
Front module mass |
kg |
4500 |
Rear module mass |
kg |
5500 |
Static linear load |
n/cm |
265/323 |
Vibration frequency |
mm |
0.35 |
Vibration amplitude |
HZ |
50 |
Vibration frequency |
kN |
90 |
Travel speed |
km/h |
2.5/5.5/8 |
Inspire force |
% |
20 |
Steering angle |
° |
30 |
Turning radius |
mm |
≤7000 |
Length×width×height |
mm |
5390×2060×2980 |
Drum width |
mm |
1700 |
Drum diameter |
mm |
1260 |
Tread width |
mm |
3192 |
Diesel model |
|
4BT3.9/C80 |
Diesel power |
Kw |
60 |
Diesel speed |
r/min |
2000 |
Fuel tank capacity |
L |
150 |
Electrical voltage |
v |
24 |
Hydraulic tank capacity |
L |
120 |
Front water tank |
L |
280 |
Rear water tank |
L |
280 |
Contact way:
Amy Shen
Sales Manager
Shanghai Dobest Construction Machinery Co., Ltd.
Web:
Skype: amyshen1212
Yahoo: amyshen121286
Tel: +86-21-66058291 Fax:+86-21-66058391
Mobile/WhatsApp/Viber/Wechat: +86-13701803469
Send Inquiry to This Supplier
