Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Compactor > Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001

Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001

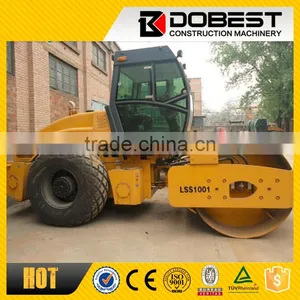

Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001 thumbnail-1
Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001 thumbnail-2
Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001 thumbnail-3
Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001 thumbnail-4
Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001 photo-1

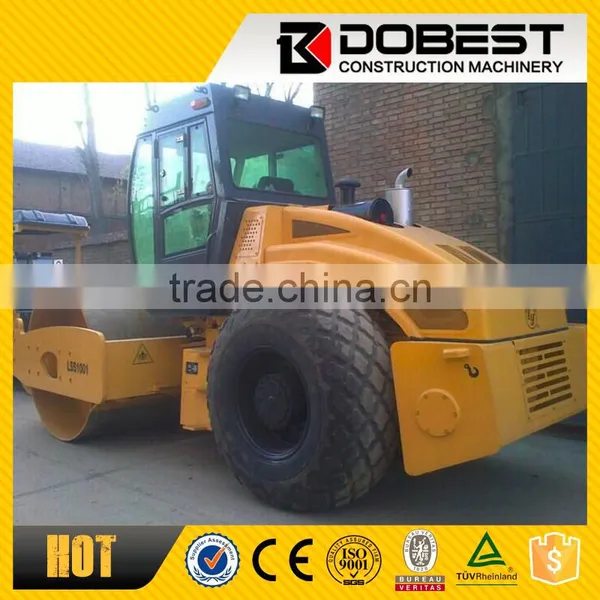

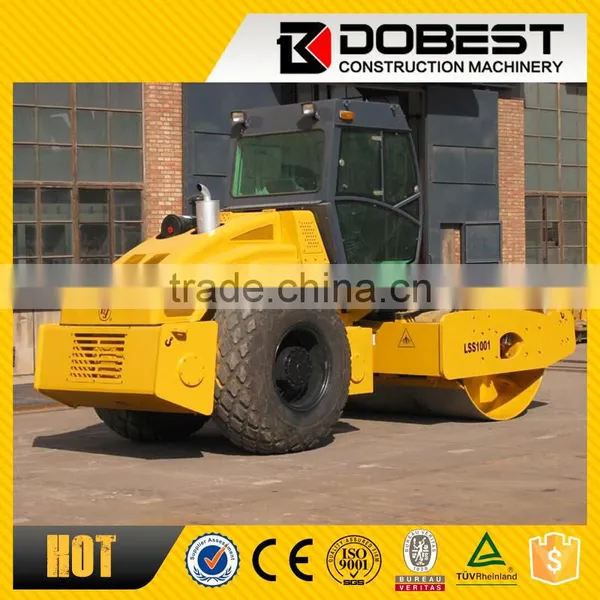

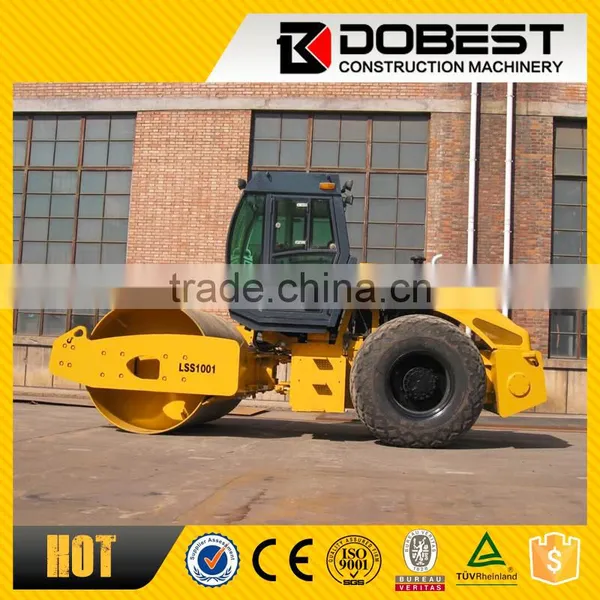

Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001 photo-2
Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001 photo-3
Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001 photo-4
US$ 31,000 - 33,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Single Drum Roller
Static Linear Pressure:
233 N/CM
Contact Supplier Request Quote Chat Now
Shanghai Dobest Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Single Drum Roller
Static Linear Pressure 233 N/CM
Travel Speed 10.5 km/h
Grade Ability 25%
Place of Origin Henan, China
Model Number LSS1001
Power(W) 80KW
Dimension(L*W*H) 5500X2300X3000 MM
Weight 10 TON
Certification ISO,CE,GOST
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001

China 10 Ton Single Drum Road Roller LSS1001

10 ton road roller for sale, smooth drum roller

10 ton vibrator 10 ton compactor best selling





Application:

Asphalt Heavy duty vibratory rollers are suitable for non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.



Main Features:

1.    Cummins diesel engine with great power reservation, low emission and fuel consumption.

2.    Mechanical axle travel mechanism, electric- operated hydraulic dual amplitude device and hydraulic articulated steering with excellent function- worth ratio.

3.    Two braking systems of mechanical hand brake and air-over-oil controlled foot brake for safety and reliability.

4.    Entire machine is in compact design, with circle-arc shape engine hood with beautiful appearance.

5.    Bright and spacious driver’s cabin with optional air-conditioner in cold and warm.

6.    Optional padfoot vibrating drum for compaction of cohesive materials.



Technology specification:

Model



LSS1001

Operating mass

kg

10000

Static linear load

N/cm

233

Vibration amplitude

mm

1.74/0.82

Vibration frequency

Hz

32

Centrifugal force

kN

198/93

Travel speed-MAX

km/h

10.5

Gradeability

%

25

Turning radius

mm

6800

Drum width

mm

2100

Drum diameter

mm

1500

Wheelbase

mm

2900

Ground clearance

mm

386

Diesel engine model

/

Cummins 4BTA3.9

Diesel engine power

kW

80

Overall dimensions

mm

5500×2300×3000





Contact way:

Amy Shen

Sales Manager

Shanghai Dobest Construction Machinery Co., Ltd.

Web:

Skype: amyshen1212

Yahoo: amyshen121286

Tel: +86-21-66058291 Fax:+86-21-66058391

Mobile/WhatsApp/Viber/Wechat:  +86-13701803469


Product Pictures



Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001Single Drum 10 Ton Self-propelled Vibratory Roller LSS1001
