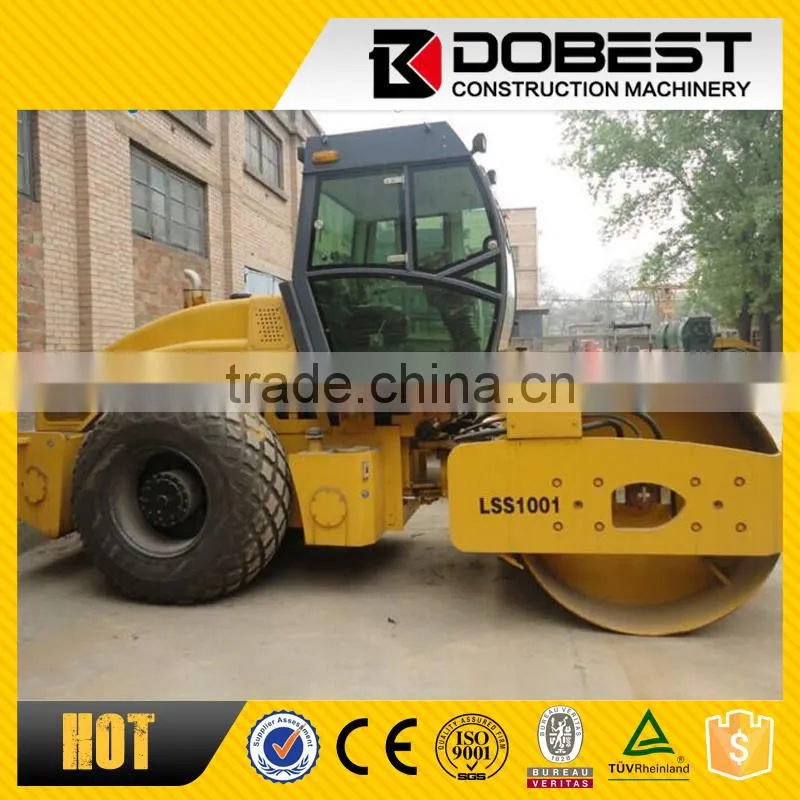

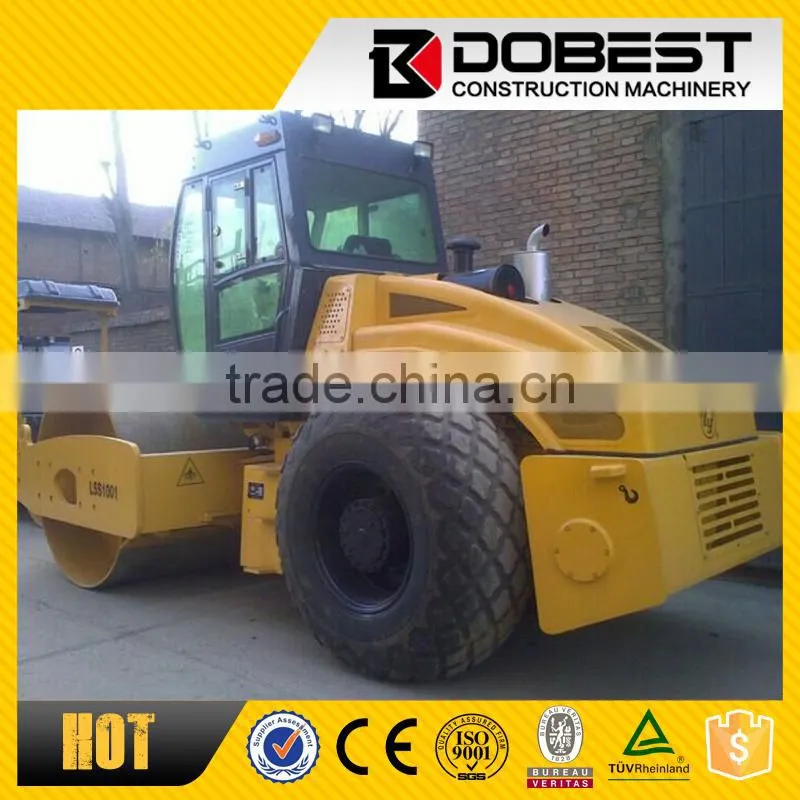

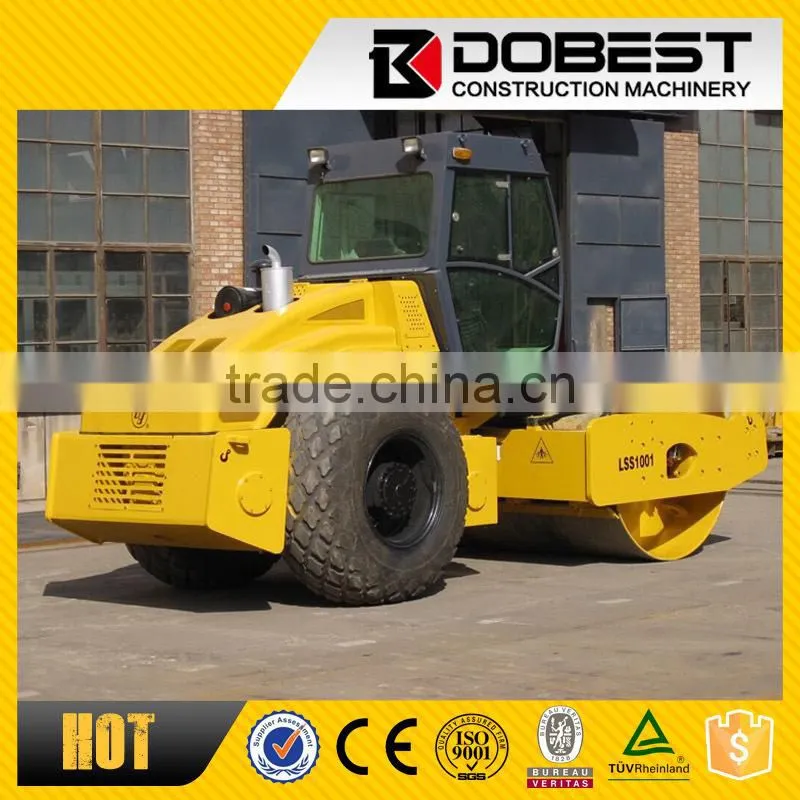

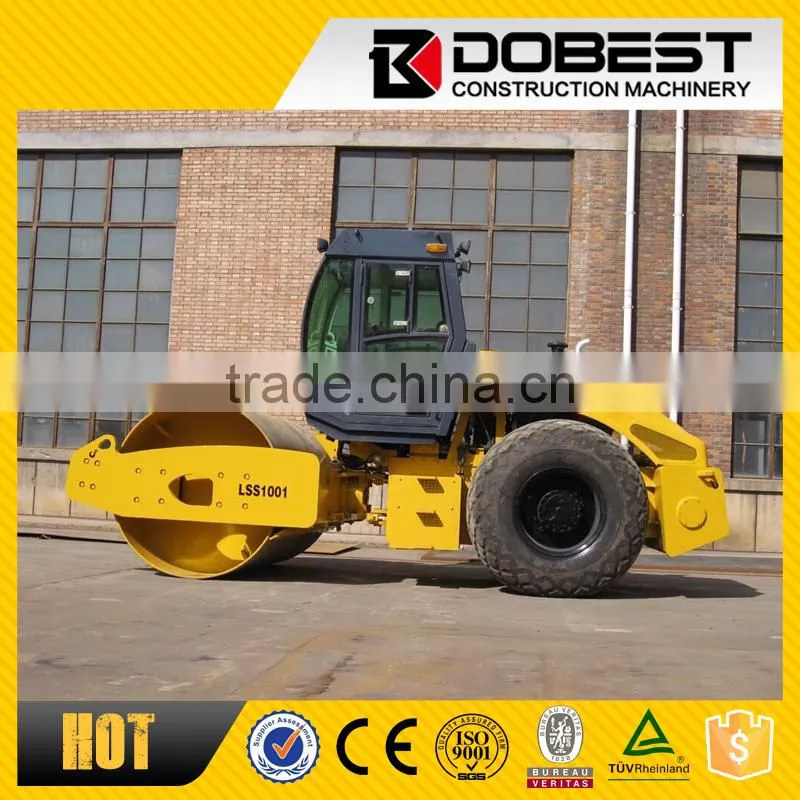

Help Center10 Ton Single Drum Vibratory Road Roller LSS1001
Related Products
China 10 Ton Single Drum Road Roller LSS1001
10 ton road roller for sale, smooth drum roller
Self-propelled vibratory road roller
10 ton vibrator 10 ton compactor best selling
Application:
Asphalt Heavy duty vibratory rollers are suitable for non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.
Main Features:
1. Cummins diesel engine with great power reservation, low emission and fuel consumption.
2. Mechanical axle travel mechanism, electric- operated hydraulic dual amplitude device and hydraulic articulated steering with excellent function- worth ratio.
3. Two braking systems of mechanical hand brake and air-over-oil controlled foot brake for safety and reliability.
4. Entire machine is in compact design, with circle-arc shape engine hood with beautiful appearance.
5. Bright and spacious driver’s cabin with optional air-conditioner in cold and warm.
6. Optional padfoot vibrating drum for compaction of cohesive materials.
Technology specification:
Model |
|
LSS1001 |
Operating mass |
kg |
10000 |
Static linear load |
N/cm |
233 |
Vibration amplitude |
mm |
1.74/0.82 |
Vibration frequency |
Hz |
32 |
Centrifugal force |
kN |
198/93 |
Travel speed-MAX |
km/h |
10.5 |
Gradeability |
% |
25 |
Turning radius |
mm |
6800 |
Drum width |
mm |
2100 |
Drum diameter |
mm |
1500 |
Wheelbase |
mm |
2900 |
Ground clearance |
mm |
386 |
Diesel engine model |
/ |
Cummins 4BTA3.9 |
Diesel engine power |
kW |
80 |
Overall dimensions |
mm |
5500×2300×3000 |
Contact way:
Amy Shen
Sales Manager
Shanghai Dobest Construction Machinery Co., Ltd.
Web:
Skype: amyshen1212
Yahoo: amyshen121286
Tel: +86-21-66058291 Fax:+86-21-66058391
Mobile/WhatsApp/Viber/Wechat: +86-13701803469
Send Inquiry to This Supplier
