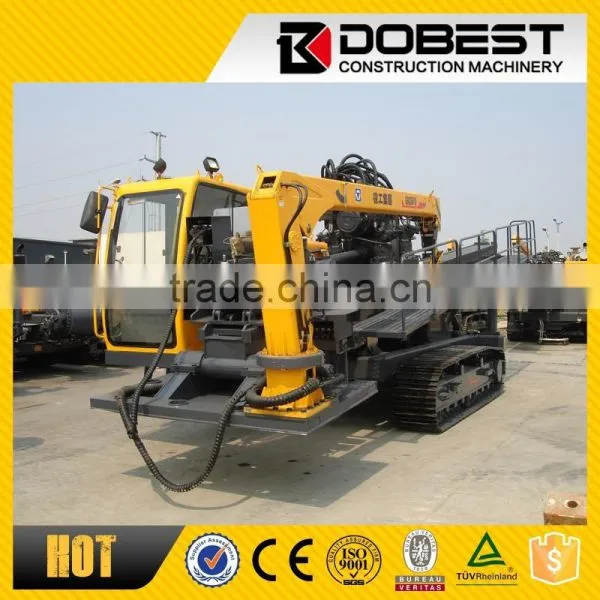

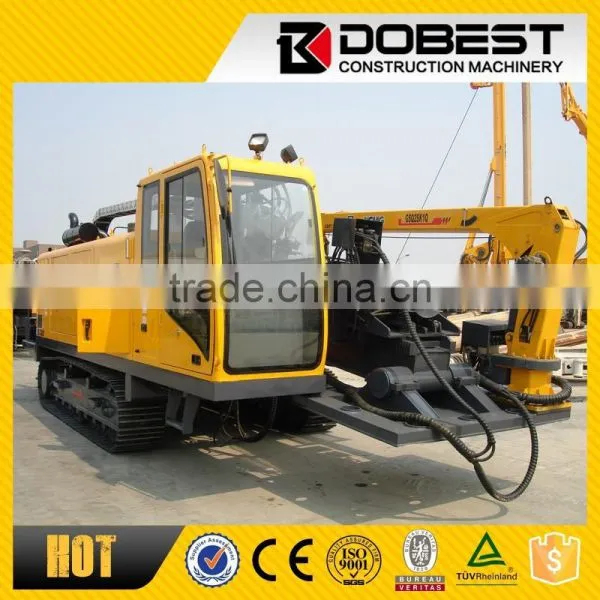

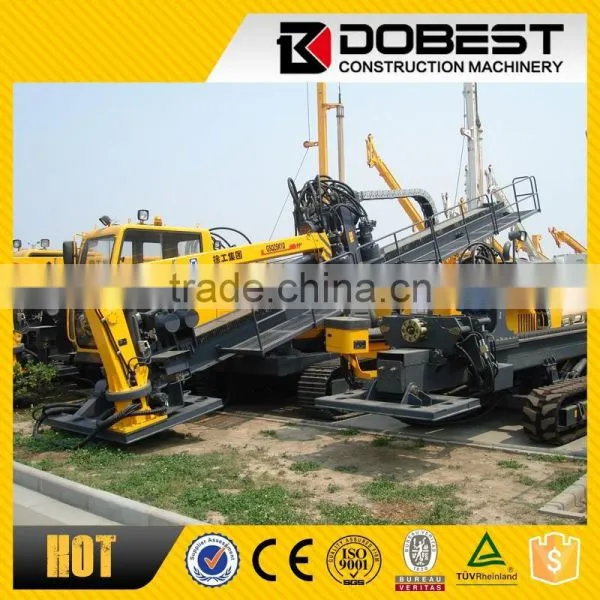

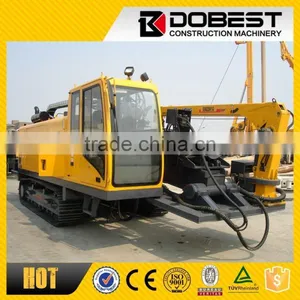

Horizontal directional drill XZ180 Best selling!
horizontal directional drilling machine for sale
horizontal directional drilling parts
horizontal hole drilling
underground hole drilling machine
Rated power: 97kW
Overall weight: 10000kg
Tubing diameter: Ø60mm
Features of Horizontal directional drill XZ180
Dongfeng Cummins (97KW) engine, 180kN of push-pull, 6000N.m of Max.spindle torque, motor dual speed chain push-pull system, self-propelled rubber tracks chassis, automatic loading and unloading drill rod device, rotatable control board, patent technology for floating vice, and onboard high-capacity mud pump (250L/min).
Technical Parameters of Horizontal directional drill XZ180 :
| Model | XZ180 |
|
|---|---|---|
| Engine | CUMMINS |
|
| Rated power | kW |
97 |
| Max.pullback/thrusting | kN |
180/180 |
| Spindle torque(max) | N.m |
6000 |
| Spindle speed | r/min |
0-140 |
| Backreaming diameter | mm |
Ø600 |
| Tubing length(single) | m |
3 |
| Tubing diameter | mm |
Ø60 |
| Entry angle | ° |
10-22 |
| Mud flow rate(max) | L/min |
250 |
| Mud pressure (max) | bar |
80 |
| Overall weight | kg |
10000 |
| DIMENSION (LxWxH) | mm |
6400×2270×2340 |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
