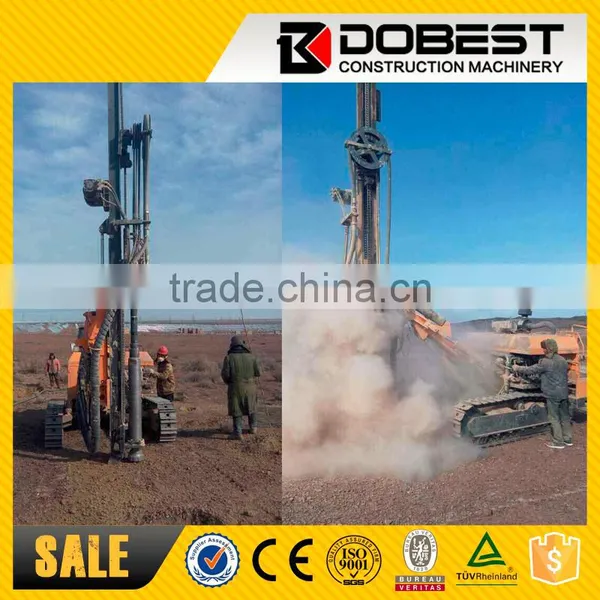

Good Price DR960 Self-propelled Hydraulic Crawler Borehole Drill Rig
Main Features & Application:
DR960 type open air DTH Drill is a self-propelled hydraulic drilling equipment well designed and developed according to the requirements of the mine,using sophisticated hydraulic technology .It has characteristics of beautiful appearance, convenient operation, stable performance . By optimizing the configuration of hydraulic components, can be applicable to different strata of the borehole operations. High-power four-cylinder Cummins engine, is applicable for high-altitude drilling.Large Rotary torque reducer provide a strong rotary torque, which can meet the demand for larger and deeper drilling operations aperture.It is ideal drilling equipment. For open pit mining, road construction, tunnel excavation and other engineering.
Technical Specification:
Rock hardness |
f=6-20 |
Hole diameter |
Φ105-220mm |
Economic Drill depth |
25 m |
Walking speed |
Slow 0-2.5km/h;Fast 0-4.0km/h |
Grade ability |
25° |
Ground clearance |
370mm |
Propulsion Type |
Hydro-Cylinder-Chain |
Overall Dimension(L*W*H) |
7250×2750×2800 mm |
Total Weight |
7500kg |
Working Air pressure |
1.4-2.4 MPa |
Push Length |
3000mm |
Max Carriage inclination Angle |
180° |
Carriage swing angle |
Right 40º(3º) Left 40º(91º) |
Max Drill Boom Swing angle |
Right 45º Left 45º |
Max Frame floating |
±8 |
Compensation Stroke |
900mm |
Rotating speed |
0-90 rpm |
Rotation Torque |
4500 N.m |
Lifting capacity |
22000 N |
Diesel Engine |
Cummins 4BTA3.9-C125(93KW/2200r/min) |
Drill Rod |
Φ76/89/102×3000mm |
Working Air pressure |
1.4-2.4 MPa |
Air Consumption |
12-24 m3/min |
Model of Dust Collector |
LT-30B-2 |
Drill bit Dia. |
165mm |
Drill pipe Dia*L |
Φ76x3000mm or Φ89×3000 or Φ102×3000 |
Drill Hammer |
HD55A |
