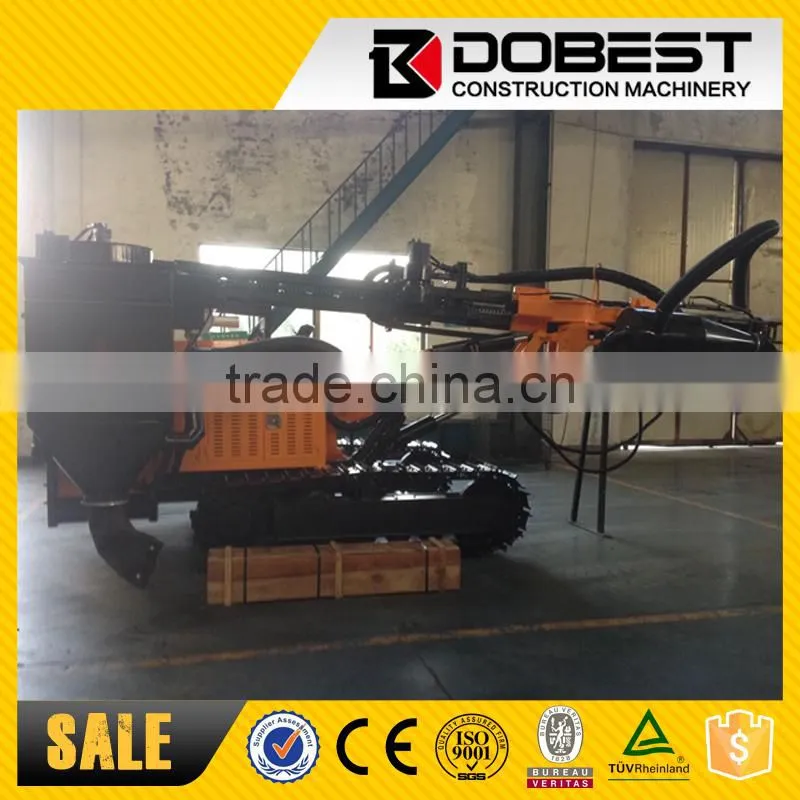

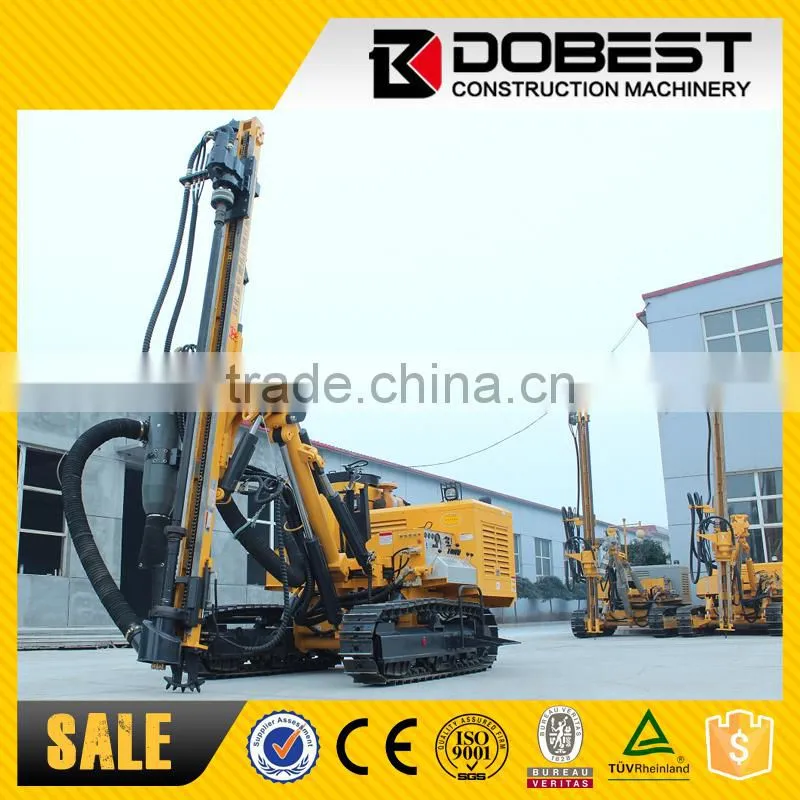

Good Price DR940 Self-propelled Hydraulic Crawler Borehole Drill Rig
Main Features & Application:
DR940 type open air DTH Drill is a self-propelled hydraulic drilling equipment well designed and developed according to the requirements of the mine,using sophisticated hydraulic technology .It has characteristics of beautiful appearance, convenient operation, stable performance. By optimizing the configuration of hydraulic components, can be applicable to different strata of the borehole operations. High-power four-cylinder Cummins engine, is applicable for high-altitude drilling.Large Rotary torque reducer provide a strong rotary torque, which can meet the demand for larger and deeper drilling operations aperture.It is ideal drilling equipment. For open pit mining, road construction, tunnel excavation and other engineering.
Technical Specification:
Rock rigidity |
F=6-20 |
Diameter of hole |
105-152mm |
Optium drilling depth |
25m |
Working pressure |
10-24bar |
Air consumption |
>=16 m³/min |
Rotation speed |
0-63 rpm |
Torque32 |
3200N.m |
Lift power |
20KN |
Dimension |
5400*2330*2020mm |
Weight |
5500 |
Drive system |
YC4D80-T10 Engine (58kw 2400r/min) |
Standard Componets (option) | |
1.hammer |
HD45A(HD45S) |
2.Rod |
Φ76*3000mm |
3.Bit |
Φ85,Φ90,Φ105,Φ115 |
4.Air hose |
Φ38*2P*20 |
Recommended compressor |
|
Capacity (m3/min) |
18 (635CFM) |
Work pressure(Mpa) |
1.7 (247.5PSI) |
Diesel engine(hp) |
Cummins 6CTA8.3-C260(194kw) |
Weight |
3500KG |
Dimension(mm) |
3600*1900*2200 |
