Good Quality Hopper Lift Type Concrete Mixing Plant HZS50
Concrete Batching Plant 50m3/h, HZS50 Ready Mix Concrete Plant
Capacity: 50 m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 80 KW
Total Weight: 40Ton
Total Dimensions: 18200×10000×19400 mm
HZS series Ready Mix Concrete Plant, also named as concrete batching plant, It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread. It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: JS1000
Volume: 1600L
Capacity: 1000L
Mixing blade: 2×8 pcs
Mixing Speed: 25.5 r.min
Mixer Motor: 37kw
Aggregate Size: 60/80 mm
Weight: 9880kg
Dimensions: 4640×2250×2250mm
2. AGGREGATE SYSTEM
2.1 Aggregate batcher: PLD1600
Volume: 4×3.7 m3
Capacity: 80 m3/h
Power: 5×3kw
Weight: 5750 kg
Dimension: 12916×2000×3200mm
2.2 Lifting Hopper: 1 unit
Speed: 0.46m/s
Power of Motor: 11kw
3. CEMENT SYSTEM (OPTIONAL)
3.1 Cement silo: 2units
Capacity: 100t×2=100t
Silo Diameter: Φ3000
3.2 Cement Screw Feeder: 2units
Diameter: Φ219mm
Length: 9m
4. ADDITIVE SYSTEM (OPTIONAL)
Additive silo Capacity: 1m3
Pneumatic Valve: Φ50 mm
Pump: 3kw
5. WATER SYSTEM
Motor Power: 3 kw
Butterfly Valve: Φ150 mm
Capacity: 80m3/h
6. AIR SYSTEM
Air Compressor: 1unit
Power: 7.5 kw
Pressure: 1.0 Mpa
Air flew: 1.2 m3/min
7. WEIGHING SYSTEM
7.1 Aggregate Weighing: 1unit
Weighing Capacity: 3000kg
Precision: 1%
7.2 Cement Weighing: 1unit
Weighing Capacity: 600kg
Precision: 1%
7.3 Water Weighing: 1unit
Weighing Capacity: 250kg
Precision: 1%
7.4 Additive Weighing: 1unit
Weighing Capacity: 40 kg
Precision: 1%
8. CONTROL SYSTEM
PLC command and control operation
Main electrical components: SCHNEIDER or SIMENSE
17'' colorful computer
Manuel and Auto Control is freely changeable
Specification of HZS Series concrete batching plants:
Model |
HZS25 |
HZS35 |
HZS50 |
HZS60 |
HZS75 |
HZS90 |
HZS120 |
HZS150 |
Capacity (m3/h) |
25 |
35 |
50 |
60 |
75 |
90 |
120 |
150 |
Aggregate Feeding |
Skip |
Skip |
Skip |
Belt Conveyor |
Skip |
Belt Conveyor |
Belt Conveyor |
Belt Conveyor |
Aggregate Size (mm) |
60/80 |
60/80 |
60/80 |
Less 60/80 |
60/80 |
Less 60/80 |
Less 60/80 |
Less 60/80 |
Discharging Height(mm) |
3800 |
3800 |
3800 |
3800 |
3800 |
3800 |
3800 |
3800 |
Mixing System |
JS500 |
JS750 |
JS1000 |
JS1000 |
JS1500 |
JS1500 |
JS2000 |
JS3000 |
Aggregate System |
P800 |
P1200 |
P1600 |
P2400 |
P2400 |
P2400 |
P3200 |
P4800 |
Cement System |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
Water System |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
Control System |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |

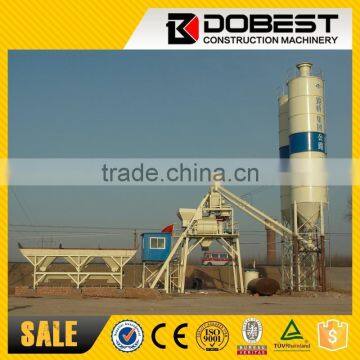

On Site
In Our Factory

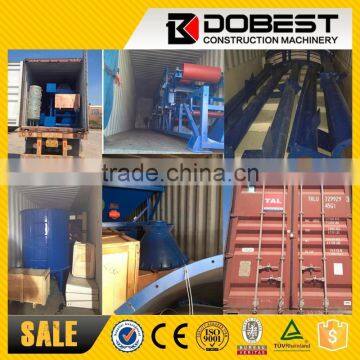

Packing & Shipping
Installation-Overseas
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
