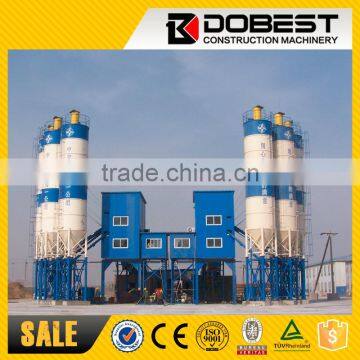

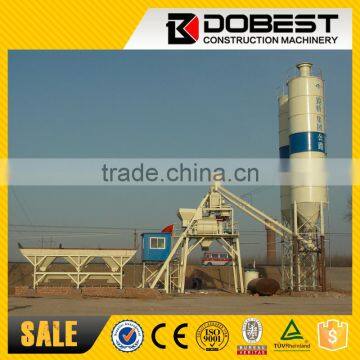

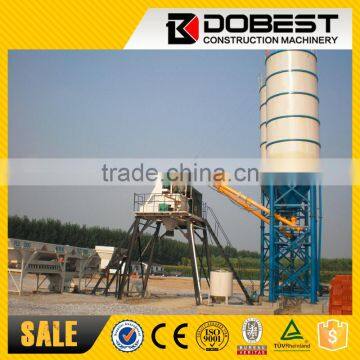

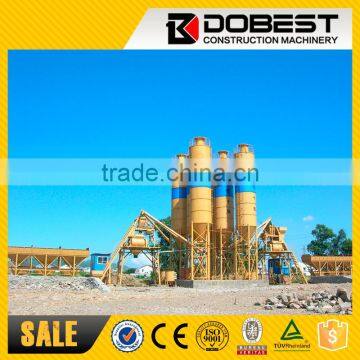

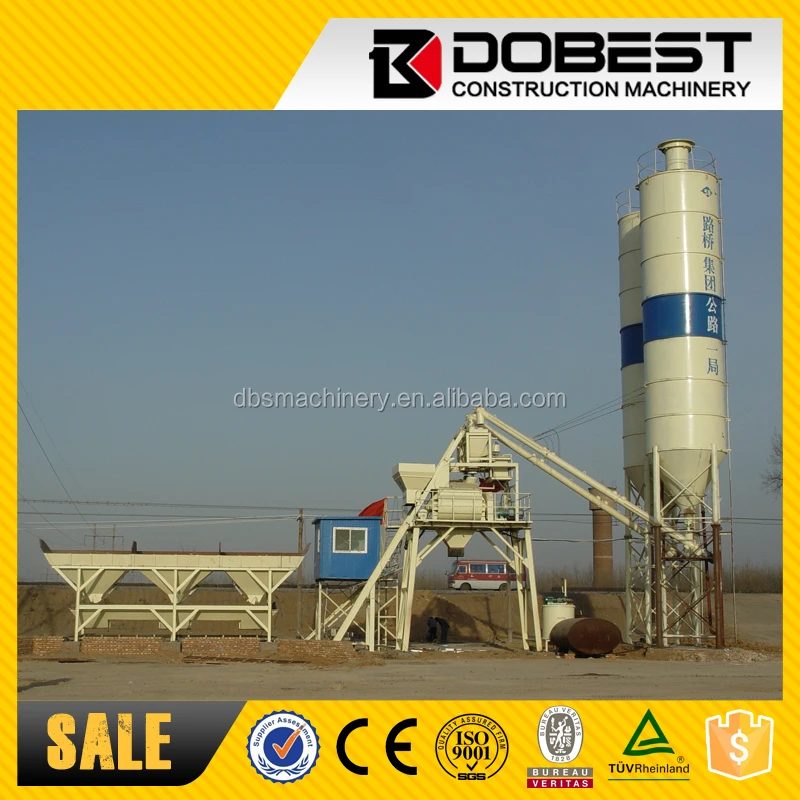

Help CenterHZS90 Read Mix Concrte Plant 90m3/h
Related Products
-
Electric Concrete Pump With Drum MixerNegotiableMOQ: 1 Unit -
HBTS60 Trailer Mounted Concrete Pump 60m3/hNegotiableMOQ: 1 Unit
-
HBMB30 Mixed Concrete Pump 30m3/hNegotiableMOQ: 1 Unit
-
HBTS60B Trailer Mounted Concrete Pump 60m3/hNegotiableMOQ: 1 Unit
-
HBTS60C Trailer Mounted Concrete Pump 70m3/hNegotiableMOQ: 1 Unit
Good Quality Hopper Lift Type Concrete Mixing Plant HZS75
Concrete Batching Plant 75m3/h, HZS75 Ready Mix Concrete Plant
Capacity: 90 m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 110 KW
Total Weight: 60 Ton
Total Dimensions: 38500×12000×19400 mm
HZS series Ready Mix Concrete Plant, also named as concrete batching plant, It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power, the railroad, the road, the tunnel, the arch of bridg , the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread. It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.
Features of Central Mix Concrete Batch Plant:
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. With its modularization structure, it is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
6. PC+PLC control system ensures the high reliability.
7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
8. Human-based intelligent control facilitates the operation greatly.
9. Structural members are durable, and most electric elements adopt world famous brands.
NO. |
NAME. |
PROJECT |
QTY |
|
1 |
Aggregate batching system |
Aggregate hoppers stone hopper 15m3 |
2 |
|
Aggregate hoppers stone hopper 15m3 with a vibrator |
1 |
||
Air cylinder (φ80) |
3 |
||
Weighing hopper 1.6m3 |
1 |
||
Weighing sensor CDLG-1/1500kg |
4 |
||
Flat belt conveyor |
1 |
||
Electric drum (4kw) Speed 1.6m/s |
1 |
||
Flat belt conveyor (B=800) |
1 |
||
|
2 |
Aggregate lifting beveled belt conveyor |
Driver roller reducer (22kw) |
1 |
Belt Frame |
1 |
||
Conveyor |
1 |
||
Conveyer stretcher |
1 |
||
Two sides troubleshoot platform |
1 |
||
Guards |
1 |
||
|
3 |
Main steel structure |
Mixing platform |
1 |
Weighting platform |
1 |
||
Posts |
2 |
||
Ladder |
1 |
||
|
4 |
Mixer System |
JS1500 Double-shaft Mixer |
1 |
Mixing tank assembly |
1 |
||
Electric motor Y2-225M-6 (30kW) |
2 |
||
Reducer |
2 |
||
Batch plant device |
1 |
||
Discharge device |
1 |
||
Centralized lubrication system |
1 |
||
Cover |
1 |
||
|
5 |
Transition hopper system |
Storage hopper |
1 |
Discharge gate |
1 |
||
Discharge cylinder (φ100) |
1 |
||
|
6 |
Measurement System |
Cement measuring bin (600kg) |
1 |
Load sensor CDLG-1/1500kg |
1 |
||
Butterfly Valve (φ300) |
1 |
||
Vibrator MVE60/3 |
1 |
||
Fly ash measuring bin (200kg) |
1 |
||
Sensor CDLG-1/700kg |
1 |
||
Butterfly Valve(φ200) |
1 |
||
Water measuring bin 300kg |
1 |
||
Sensor CDLG-1/700kg |
1 |
||
Water pump 75DWB60-5 |
1 |
||
Additive measuring bin (30kg) |
1 |
||
Sensor CDLG-1/100kg |
1 |
||
Butterfly valve (DN=50) |
1 |
||
7 |
Discharge Bucket |
Bucket |
1 |
Liners |
1 set |
||
8 |
Water system |
Water pump IS65-50-125 |
1 |
Water supplying pipes |
1set |
||
Water measurement vlave |
1 |
||
|
9 |
Additives system |
Storage bin (3.0m3) |
1 |
Chemical anticorrosion pump IHG32-160(I) |
1 |
||
Chemical anticorrosion pump IHG25-125 |
1 |
||
Pipe and the joint |
1 |
||
|
10 |
Control room |
Frame of control room |
1 |
Interior and exterior finishes |
1 |
||
Air conditioner |
1 |
||
Chair with hands |
1 |
||
|
11 |
Pneumatic System |
Air Compressor KS100 |
1 |
Electrical valve |
1 |
||
Air controlled box |
1 |
||
Pipe and the joint |
1 |
||
|
12 |
Electrical System |
Computer control system |
1 |
Batching control software |
1 |
||
IPC |
1 |
||
19” Liquid Monitor |
1 |
||
Printer |
1 |
||
UPS Power 500VA |
1 |
||
Electrical components |
1 |
||
Control Platform |
1 |
||
High voltage control box |
1 |
||
Electric wire, electric cable |
1 |
||
|
13 |
Monitoring System
|
Color Camera |
4 |
Camera shot |
4 |
||
19” Industrial Monitor |
1 |
||
Video Multiplexer |
1 |
||
Extra |
Project Name |
Project Description |
QTY |
1 |
Silo 70t (Piece type) |
SNC100T and accessory |
2 |
2 |
Screw conveyor |
φ219×9m |
2 |
Specification of HZS Series concrete batching plants:
Model |
HZS25 |
HZS35 |
HZS50 |
HZS60 |
HZS75 |
HZS90 |
HZS120 |
HZS150 |
Capacity (m3/h) |
25 |
35 |
50 |
60 |
75 |
90 |
120 |
150 |
Aggregate Feeding |
Skip |
Skip |
Skip |
Belt Conveyor |
Skip |
Belt Conveyor |
Belt Conveyor |
Belt Conveyor |
Aggregate Size (mm) |
60/80 |
60/80 |
60/80 |
Less 60/80 |
60/80 |
Less 60/80 |
Less 60/80 |
Less 60/80 |
Discharging Height(mm) |
3800 |
3800 |
3800 |
3800 |
3800 |
3800 |
3800 |
3800 |
Mixing System |
JS500 |
JS750 |
JS1000 |
JS1000 |
JS1500 |
JS1500 |
JS2000 |
JS3000 |
Aggregate System |
P800 |
P1200 |
P1600 |
P2400 |
P2400 |
P2400 |
P3200 |
P4800 |
Cement System |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
Water System |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
Control System |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
On Site
In Our Factory

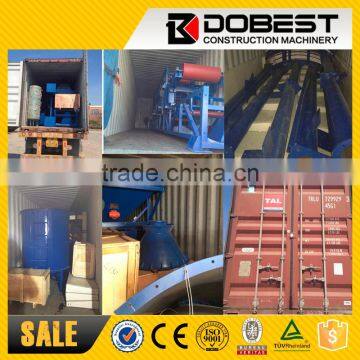

Packing & Shipping
Installation-Overseas
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
