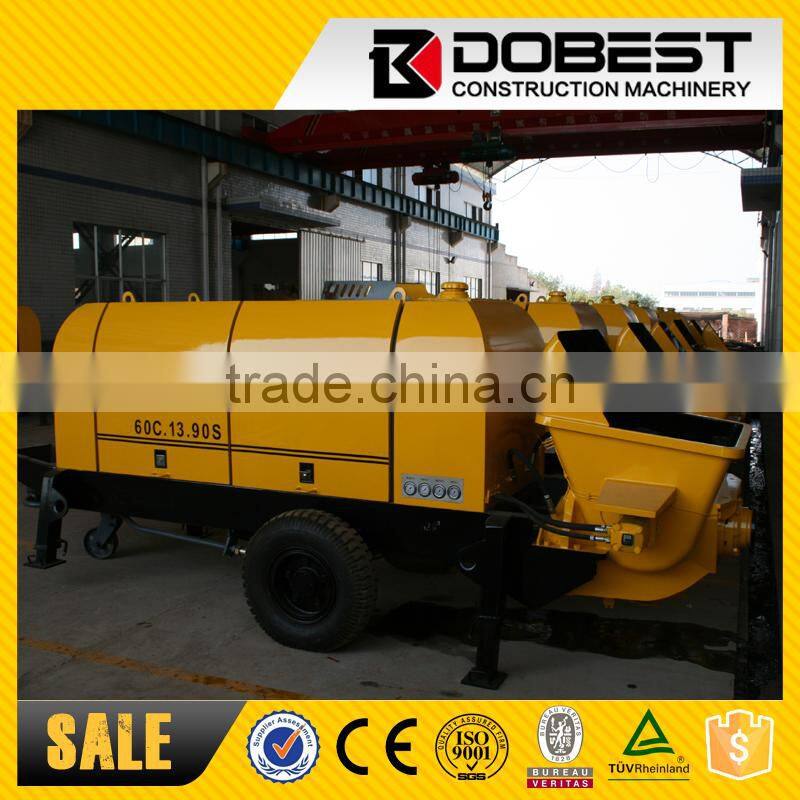

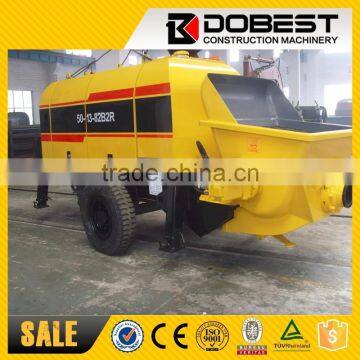

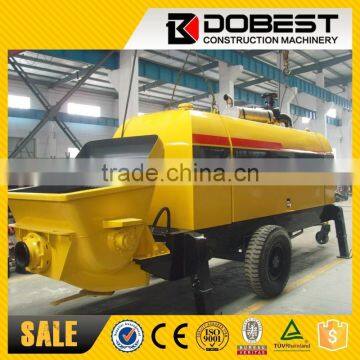

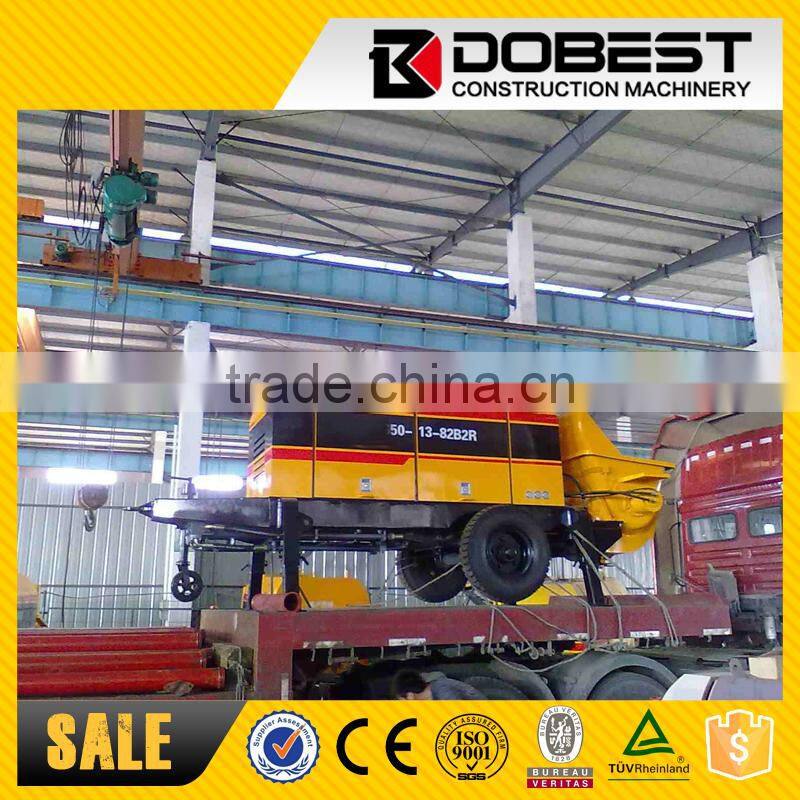

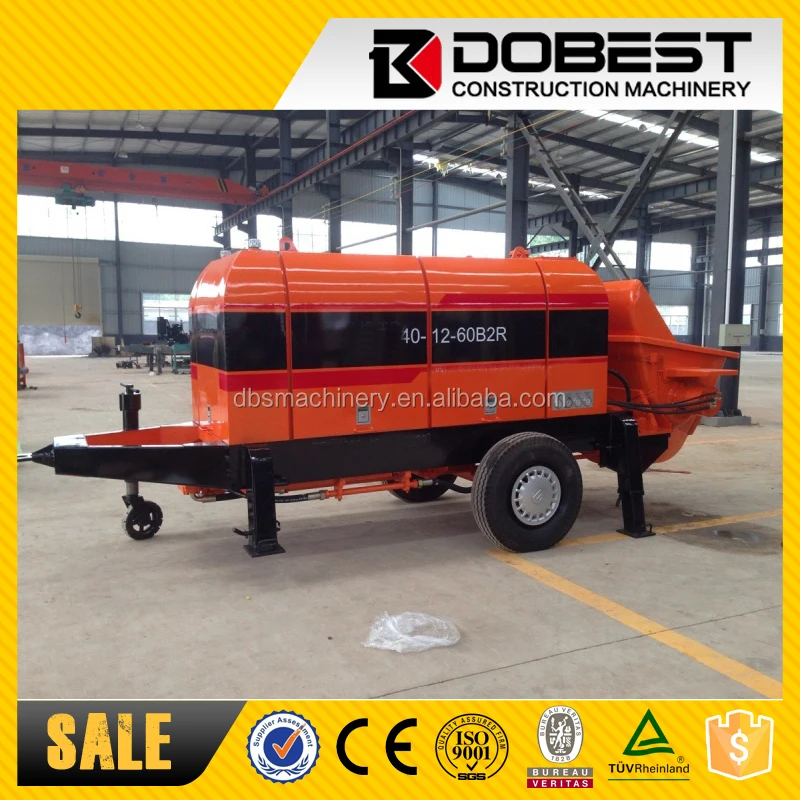

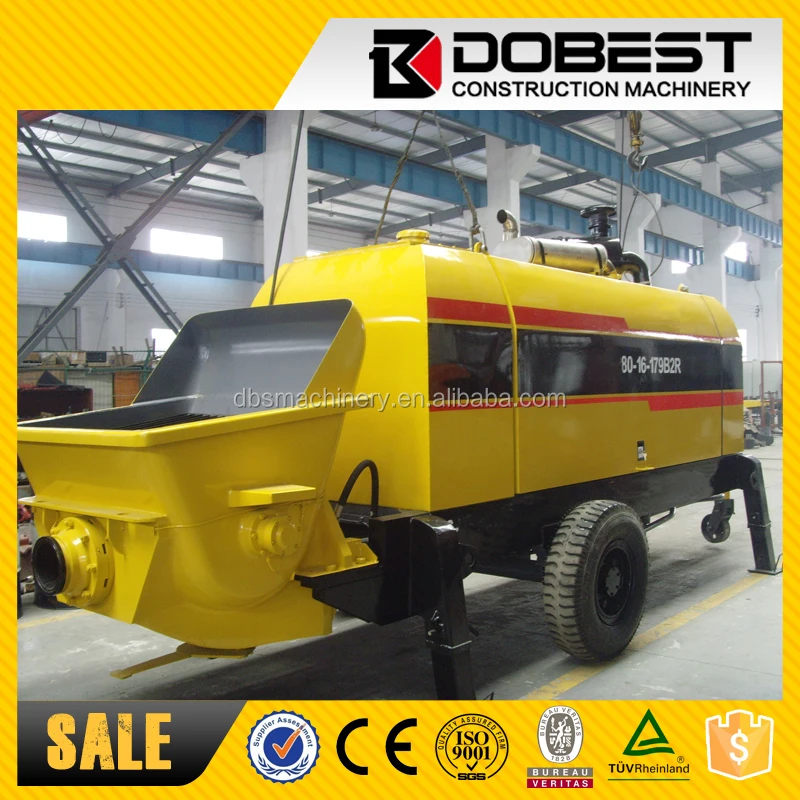

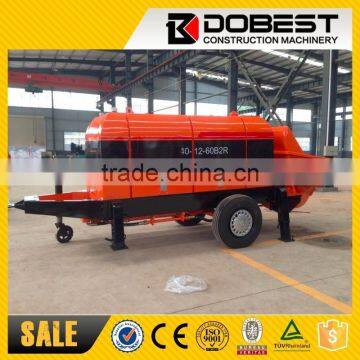

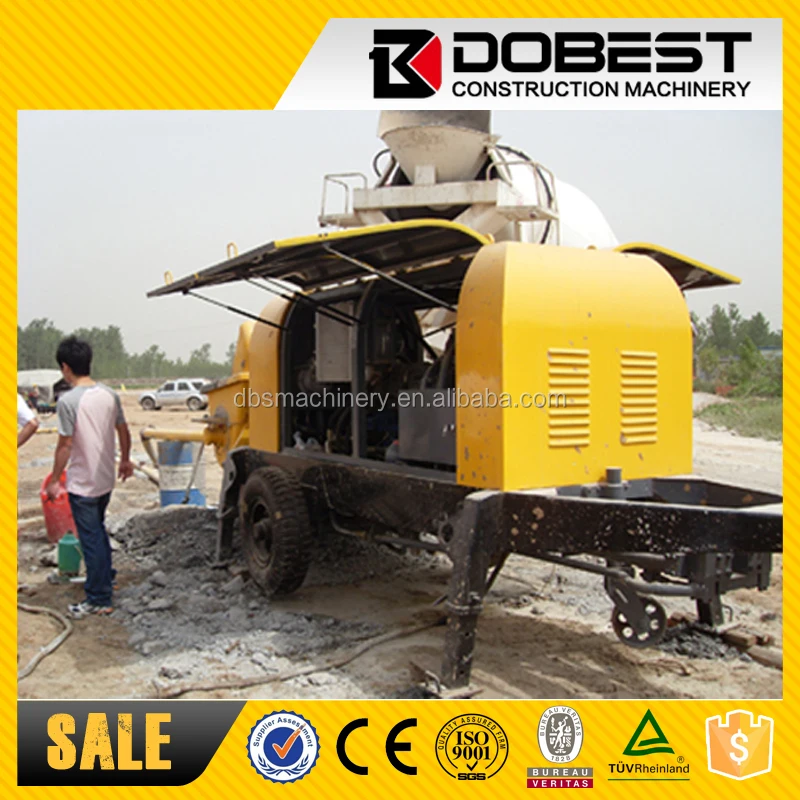

Electric Concrete Pump With Drum Mixer
Small Concrete Pump, Electric Concrete Pump
Portable Small Mortar Concrete Pump Mixer
Technical Features:

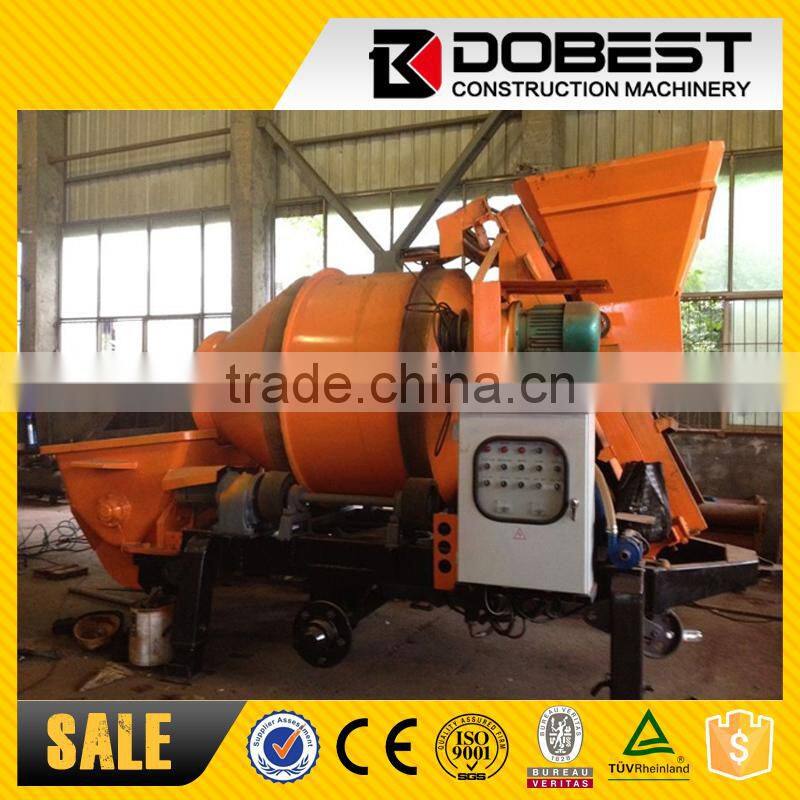

The mixed concrete pump is a kind of multifunction concrete machinery combine pumping founction and mixing founction.It’s greatly improve work efficiency.
Item |
Unit |
HBMB30 |
Max.Theor.Concrete Output |
m3/h |
30 |
Max.Theor.Pumping Pressure |
Mpa |
6 |
Type of Distribution Valve |
|
S Valve |
The Diameter of Discharge hole |
mm |
Φ180 |
Max.Theor.Delivery Distance |
m |
200/50 |
Concrete Cylinder Bore * Stroke |
mm |
Φ180*1000 |
Hopper Capacity *Hopper Height |
L*mm |
600 *1080 |
Max.Aggreate Size |
mm |
Scree s0 and Gravel 30 |
Power of the Pumping Electromotor |
Kw |
30 |
Power of the Mixing Electromotor |
Kw |
5.5 |
Power of the Winch Electromotor |
Kw |
4.5 |
Power of the Water Pump Electromotor |
W |
550 |
Rated Roating Speed |
Rpm |
1480 |
Voltage/ Frequency |
V |
380 |
Oil Tank Capacity |
L |
170 |
Type of Hydraulic Circuit |
|
Open Circuit |
Cleaning Method |
|
High Pressure Water Cleaning |
Overall Dimension |
mm |
4250*2100*2700 |
Total Weight |
Kg |
3500 |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
