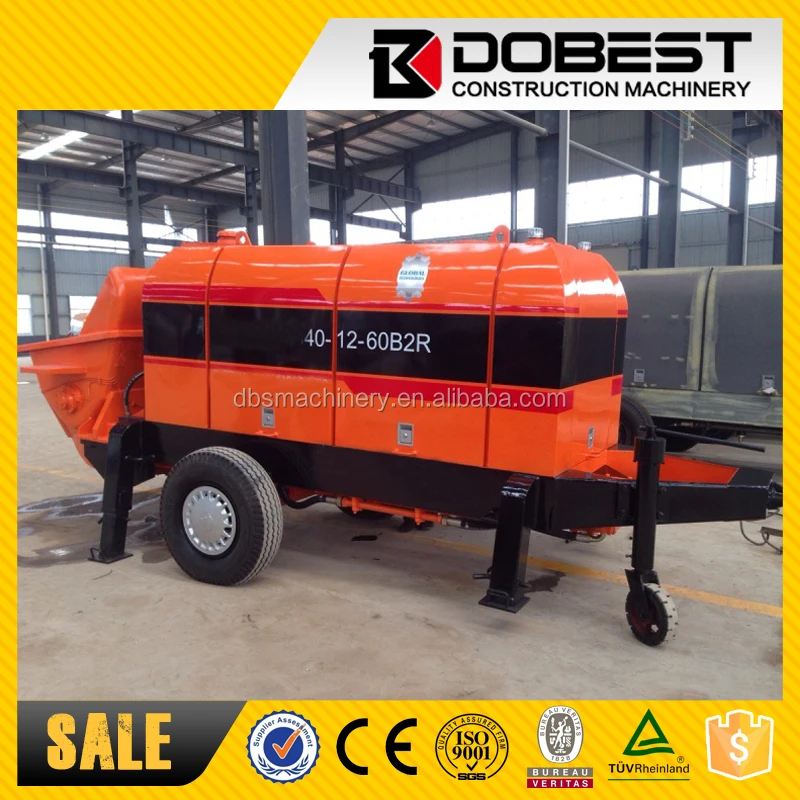

HBTS60 Trailer Mounted Concrete Pump 60m3/h
- 1000 Unit / Units per Month
- Shanghai Port
- T/T Credit Card
- outdoor Medium High pressure Portable abrasive waterjet reinforced concrete cutting machine
- 52 Meter Concrete Pump Truck
- Sany concrete pump hose reel 60031864
- Zhongyi motor concrete pump parts
- 37 Meter Concrete Pump Truck
- diesel mini concrete pump for sale Aggregate size 30mm post tension grout mortar cement pump
Product Details
Condition: | New | Power Type: | Diesel | Place of Origin: | Shanghai, China |
Brand Name: | DOBEST | Model Number: | HBTS60 | Power(W): | 130 |
Weight: | 6300 | Dimension(L*W*H): | 6400*2160*2800 mm | Certification: | ISO, CE |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Cheap Price Trailer Mounted Type Concrete Pump 60m3/h
Portable Diesel Concrete Pump HBTS60
Technical Features:
Hydraulic system
The open hydraulic system with three-pump and three-circuit is adopted for this products. The constant power control and pressure cut-off control can promise a multistage and reliable main pump. The equipped leading coverflow valve makes the overflow to be safer.The main pumping circuit and “S” valve circuit are independent to each other, which makes the work system reliable and the changeover steady.Taper sealing and flange connection can ensure the hydraulic circuit with features of reliable seal,simple and low-cost maintenance.
Electrical system
24V direct-current supply is adopted for the electrical system.The electrical components are 100% imported,which can guarantee reliable system and simple trouble-shooting.Diesel is equipped with automatic throttle,wired or wireless remote controller upon demands is convenient to operate from long distance.The technology of proximity switch and contactless changeover can ensure steady changeover.
Distribution system
During the designing of key parts,such as hopper,”S” pipe and other vital components,some advanced modern design methods are adopted to analyze it’s stress state,structure stiffness,stress concentration and other relevant situations on the purpose of making it’s structure more reasonable,it’s stiffness stronger, and it’s technology more better.The disribution system is equipped with folating anti-wearing ring,which can antomatically compensate the wearing gap betwwen “cutting ring” and “spectacle-plate” to ensure pump outlet pressure.”Cutting ring”,”spectacle-plate” and other wearing parts using hard alloy material can guarantee the components with a nice working performance and a long service lift.What’s more supporting wheeels have manual,hdraulic lifting and other forms for optional.
MODEL | UNIT | HBTS40 | HBTS50 | HBTS60C | HBTS60B | HBTS80 |
Max.Theor. Discharge Capacity | m3/h | 40 | 60 | 72 | 64 | 83 |
Min. Theor. Discharge Capacity | m3/h | 26 | 35 | 46 | 43 | 56 |
Max.Theor.Pressure of | Mpa | 12 | 13 | 16 | 16 | 16 |
Min.Theor.Pressure of Concrete Delivery | Mpa | 5 | 7 | 10.3 | 10.3 | 10.3 |
Model of Main Pump |
| K3V112S | A11VLO130/ | A8V107*2/K3V112DT | A11VLO190 | A11VLO260 |
Cylinder Diameter * Stroke | mm | φ 125/80-1200 | φ 125/80-1400 | φ140/90-1800 | φ140/80-1650 | φ140/90-1800 |
Concrete Cylinder Bore*Stroke | mm | φ200-1200 | φ200-1400 | φ200-1800 | φ200-1650 | φ200-1800 |
Motor Power | Kw | Cummins 60 | Cummins 82 | Weichai DEUTZ 130 | Weichai DEUTZ 130 | Weichai DEUTZ162 |
Rated Rotating Speed | r/m | 2200 | 2200 | 2200 | 2200 | 2200 |
Hopper Capacity | L | 600 | 600 | 600 | 600 | 600 |
Hopper Height | mm | 1400 | 1450 | 1450 | 1450 | 1400 |
Number of Stroke | tims/min | 23 | 23 | 23 | 21 | 26 |
Max.Theor.Horizontal | m | 800 | 800 | 1200 | 1200 | 1200 |
Max.Theor.Vertical Delivery Distance | m | 120 | 200 | 270 | 270 | 300 |
Oil Tank Capacity | L | 300 | 500 | 550 | 550 | 550 |
Overall Dimension | mm | 5230*2160*2010 | 5230*2160*2010 | 6400*2160*2800 | 6400*2160*2800 | 6400*2160*2800 |
Total Weight | Kg | 4180 | 4350 | 6300 | 6300 | 6300 |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
