Small Farm Tractor 354 for Garden Working or Green House Working ,under the Grape Plant Working

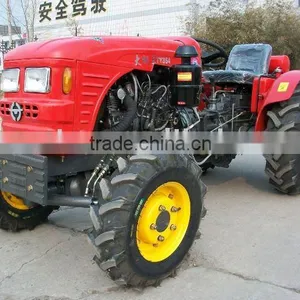

Small Farm Tractor 354 for Garden Working or Green House Working ,under the Grape Plant Working thumbnail-1

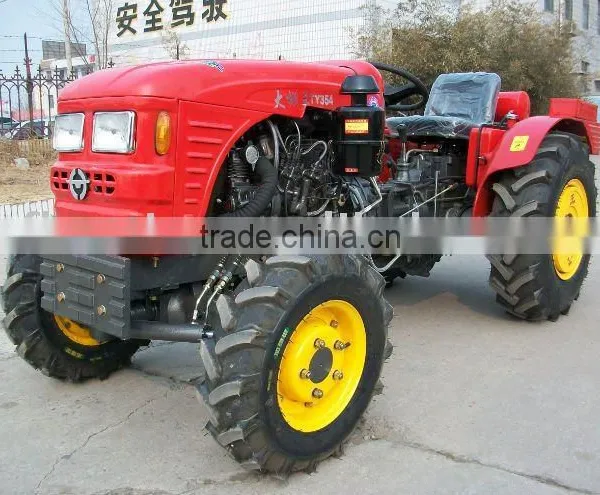

Small Farm Tractor 354 for Garden Working or Green House Working ,under the Grape Plant Working photo-1
US$ 2,700 - 3,990 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Haotian Farm Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qiangdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Garden Tractor
Certificate EPA
Brand Name haotian
Model Number Greenhouse King 354
Place of Origin Shandong, China

Specifications

EPA Tractor
1) creeping shift,double stage clutch
2) dual-way hydraulic output
3) hydraulic steering

 Main Technical Specifications

Model

TY354

Type

4×4         4WD

Length

2768/2854

Width

1514/1696

Depth

1365/1414

Main Dimensions of Tractors(mm)



Wheel base

Front wheel

1000/1200

Rear wheel

1000-1300 Adjustable

Tread

1512/1598

Min. Ground Base

266

Dry Mass(kg)

1130

Engine

Model

2102

Type

Vertical, 2-cylinder, Water Cooled and4-stroke

Rated Power(kw)

22.06

Rated Rev(r/min)

2400

Fuel

Diesel Oil

Tyre

Front Wheel

6.00-12/6.00-16

Rear Wheel

8.30-24/9.50-24

Clutch

Dry-friction, Single Stage or Dry-friction, Two Stage

Steering

Mechanical Type or Hydraulic Type

Transmission Box

(3+1)×2or(4+1)×2or(4+1)×2×2(with creeper)

Suspension Type

Post Postitioned Tri-point Suspension Catalogue O or I

PTO Shaft

(r/min)Type and Rev.

Non-independent Type 540 or Non-independent Type 540/1000, 540/720 or             Semi-independent Type 540/1000,540/720

Spline Size

I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69)
