Mini Garden Farm 4wd Tractor TY300

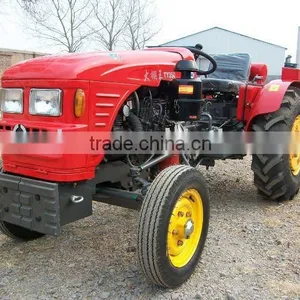

Mini Garden Farm 4wd Tractor TY300 thumbnail-1

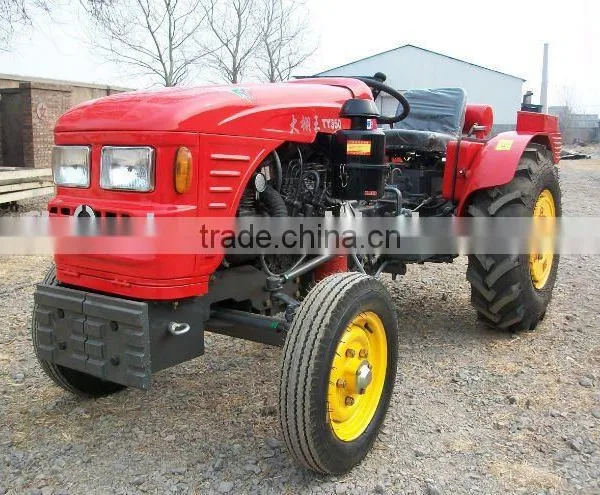

Mini Garden Farm 4wd Tractor TY300 photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Weifang Haotian Farm Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Certificate Other, EPA, EPA
Brand Name haotian
Model Number 300
Place of Origin Shandong, China

Specifications

Tractor
Tractor,18hp-35hp,4WD
Tractor with famous engine
Tractor with competitive price
Tractor with stable performance

  Tractor
  Greenhouse-King Series tractors are designed for greenhouses and gardens specially. It is directly connected with double-cylinder engine. It has jaw type differential lock, single-side brake and dual-speed PTO. The outside is low, short and narrow, so it has compact structure and small radius of turning circle. The oversize even is smaller than single-engine tractor. When work in ordinary greenhouses, it can plough freely without dead angle. Their depth of plough and degree of rotary smash are better than ordinary single-engine four-wheeled tractor of farm managing machine. The working efficiency is high and the working quality is good. With different implements, the tractor can accomplish different kinds of works, such as plough, fertilization, crushing, spray, etc. in vegetable and flower greenhouses or gardens. And also, this tractor has all the other functions as other tractors. It is an ideal machine for greenhouses and gardens.

Main technical specifications

Model

TY300





Type

4×2 Wheeled Type



 Length

2430



 Width

1230



   Height

1070

Dimensions



Front Wheel

960

of tractor(mm)

Tread

Rear Wheel

980



 Wheel base

1473




Min. Ground Clearance

277







2.4



One-sideBraking

Min. Radius of
Turning Circle(m)


No braking

2.8

Dry Mass(kg)

900


Engine

 Model

3T30





Type


3-cylinder, Vertical, Water Cooled and 4-stroke

Rated Power(KW)

22.1





Rated Rev.(r/min)

2400

Fuel

 Diesel










Connection between engine and clutch

 Shaft connection

 Clutch


Single Disc, Dry-Fricyion, Single Stage

 Transmission Box

(3+1)×2 or (4+1)×2   Mechanical Type

 Steering

 mechanical Type

 Suspension Type


Post positioned Tri-point Suspension, Catalogue O


PTO


Type and Rev.(r/min)


Single speed non-independent type 540 or double speed Non-independent 540/1000

Spline Size(mm)


Post positioned I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69)


Structure and specifications are subject to change without notice.
