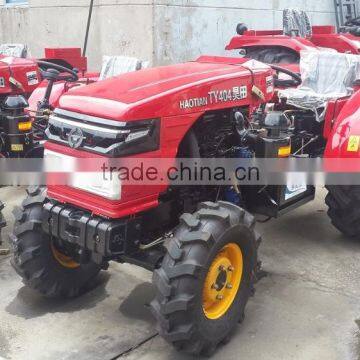

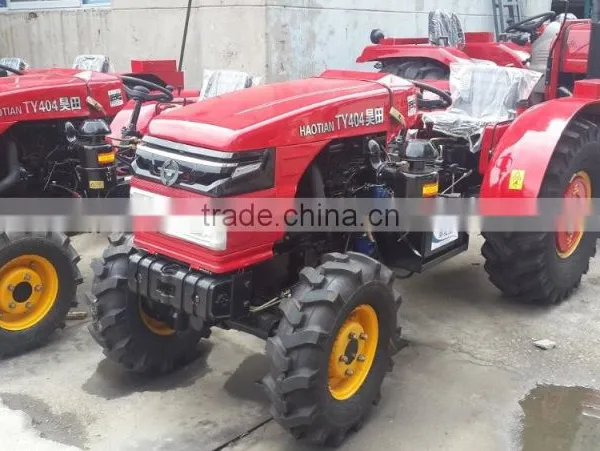

Help Center4WD 40hp Small Tractor Price With Wide Tyres
Related Products
-
4WD 40hp Gardening Tractor With Power Down and Hydraulic OutputUS$ 4,380 - 4,700MOQ: 8 Units -
4x4 40hp Cheap Compact Garden Small TractorUS$ 4,180 - 4,500MOQ: 8 Units
-
4WD 40hp Farmtrac Tractor Price With Power DownUS$ 4,380 - 4,600MOQ: 8 Units
-
New 4WD 40hp Mini Garden Tractor Price ListUS$ 4,180 - 4,500MOQ: 1 Unit
-
Cheap 4x4 40hp Garden Small Tractor (Green House Tractor) in StockUS$ 4,180 - 4,500MOQ: 1 Unit
King-garden series of tractors are designed for greenhouse and garden specially. It can be installed on two-cylinder engine or three-cylinder engine or four-cylinder engine; it has jaw-type differential lock; single-side brake and single-speed or two-speed of PTO. The size of tractor is low, short and narrow, so it has compact structure and small turning radius. When working in greenhouse, it can plough and till freely without dead angle. And it can plough deeper and till faster than belt-drive tractor and power tiller. It has more efficiency and better working quality. The tractor can match kinds of implements and fulfills ploughing, fertilizing, crushing and spraying, etc. in vegetable, flower greenhouse and garden. It has all of functions as other normal tractors. So it is an ideal agricultural machine for greenhouse and garden.
Main technical specification
| Model | King-garden TY404 | |||
| Type | 4X4 Wheeled Type | |||
| Length | 2760 | |||
| Width | 1200 | |||
| Dimensions | Height | 1100 | ||
| of Tractor | Tread | Front Wheel | 960 | |
| (mm) | Rear Wheel | 960 | ||
| Wheel Base | 1640 | |||
| Min. Ground Base | 280 | |||
| Dry Masskg) | 980 | |||
| Engine | Model | 4L23BT/JD490 | ||
| Type | Vertical, 4-cylinder, Water Cooled and 4-stroke | |||
| Rated Power(kw) | 29.4 | |||
| Rated Rev.(r/min) | 2400 | |||
| Fuel | Diesel Oil | |||
| Tire | Front Wheel | 4.50-12 | ||
| Rear Wheel | 9.50-16 | |||
| Clutch | Dry-friction, Single Stage | |||
| Steering | Hydraulic Type | |||
| Transmission Box | (4+1)×2 | |||
| Suspension Type | Post Postitioned Tri-point Suspension Catalogue 0 | |||
| PTO | Type and Rev.(r/min) | Non-independent Type 540 | ||
| Spline Size | I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69) | |||
| Loading Qty. for container | 16 units/40' container | |||
