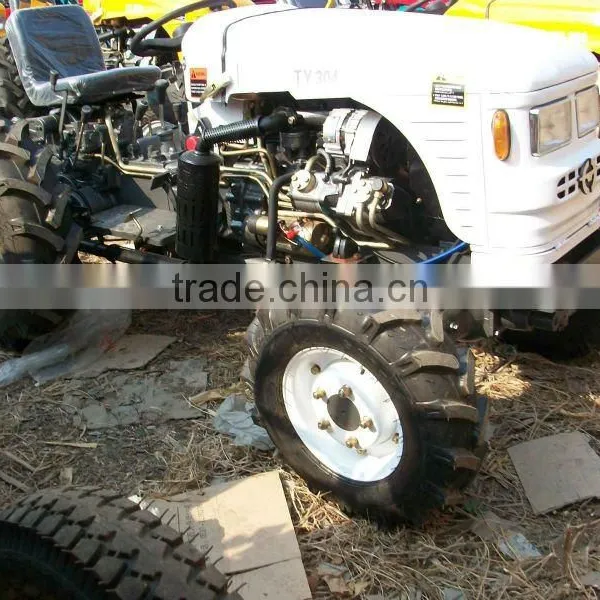

2012 HOT sale Gree House Tractor 304,4WD,4 cylinders engine, fitted with Rotary tiller

 Main Technical Specifications

Model

TY304

Type

4×4         4WD

Length

2768/2854

Width

1514/1696

Depth

1365/1414

Main Dimensions of Tractors(mm)

Wheel base

Front wheel

1000/1200

Rear wheel

1000-1300 Adjustable

Tread

1512/1598

Min. Ground Base

266

Dry Mass(kg)

1130

Engine

Model

2102

Type

Vertical, 2-cylinder, Water Cooled and4-stroke

Rated Power(kw)

22.1

Rated Rev(r/min)

2400

Fuel

Diesel Oil

Tyre

Front Wheel

6.00-12/6.00-16

Rear Wheel

8.30-24/9.50-24

Clutch

Dry-friction, Single Stage or Dry-friction, Two Stage

Steering

Mechanical Type or Hydraulic Type

Transmission Box

(3+1)×2or(4+1)×2or(4+1)×2×2(with creeper)

Suspension Type

Post Postitioned Tri-point Suspension Catalogue O or I

PTO Shaft

(r/min)Type and Rev.

Non-independent Type 540 or Non-independent Type 540/1000, 540/720 or             Semi-independent Type 540/1000,540/720

Spline Size

I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69)
