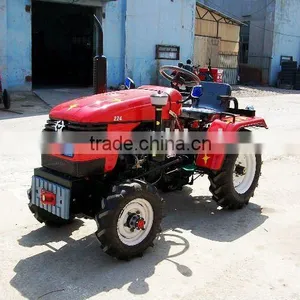

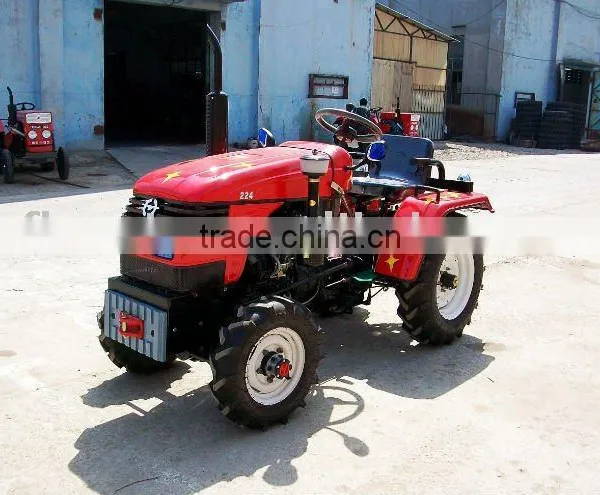

Mini Garden Tractors HT224

Mini Garden Tractors HT224 thumbnail-1
Mini Garden Tractors HT224 photo-1
US$ 3,030 - 3,090 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Haotian Farm Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 13.2-16.2kw
Brand Name HAOTIAN, haotian
Model Number HT224
Place of Origin Shandong, China



Product Description

 HT184,HT204,HT224 series Tractor

HT184,HT204,HT224 is suitable for gardening, greenhouse, lawn and family work.With the characteristic of compact structure, mini size, reasonable power, various function, easy operation, reliable performance and environment   protection, The series can be equipped with single cylinder and double cylinder tractors of different power diesel engine, equipped with standard power output shaft and after the hydraulic output interface, you can complete rotary cultivator, mower, snow machines and other farm implements. it is a right tractor for family and small farm for agriculture and gardening.

Main Technical Specification

model

HT184

HT204

HT224

type

4×4



Overall Dimensions(mm)

length

2470

width

1050

high

1750,1250

Tread(mm)

Front wheel

840



wheel

840

wheelbase

1480

Structural mass (kg)

900

Engine

model

LD1105L

TY295IT

TY295 IT

type

Single cylinder,Vertical, Water Cooled and 4-stroke

2-cylinder, Vertical, Water Cooled and 4-stroke

2-cylinder, Vertical, Water Cooled and 4-stroke

Rated power(KW)

13.2

14.7

16.2

Rated Rev.(r/min)

2400

2300

2300

Clutch



Single Disc, Dry-friction, single stage Clutch

Transmission

(3+1)×2

Steering

Mechanical Type



PTO

Rev.(r/min)

540

Spline Size(mm)



Post positioned I35Rectangle Spine with 6 teeth(6×28.91×34.79×8.69)

Theoretical Speed (km/h)

Forward

2.52~27.82

Reverse

2.50~9.54



tyre

Front wheel

5.00-12

Rear wheel

7.50-16
