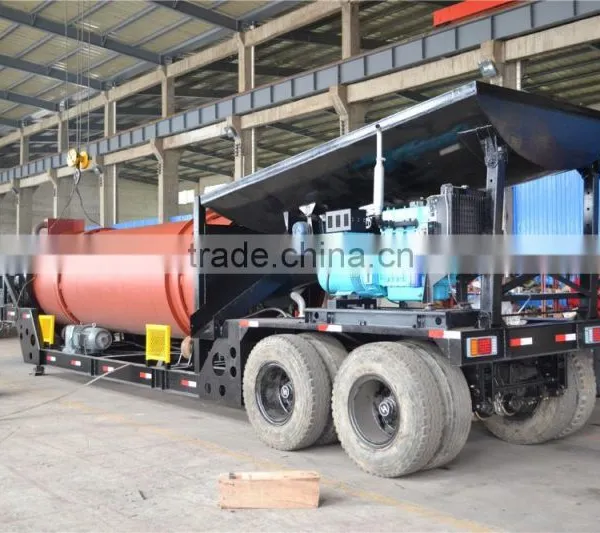

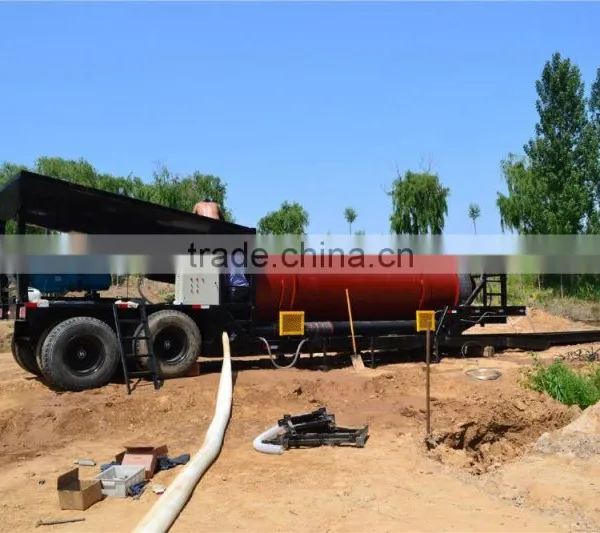

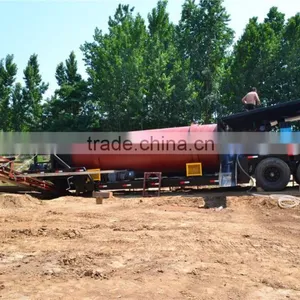

Mobile Trommel Washing Plant for Gold Mining
1.Features:
- High Quality Placer Gold Mining Trommel Screen ;
- This gold mining plant can improve the recovery of the gold and reduce the workload of cleaning.;
- get gold with little impurity;
- Can do continuous process, advanced spiral system, increase gold recovery rate, reduce operator;
2. High Quality Placer Gold Mining Trommel Screen Specification:
NO | Item |
| Remark |
1 | Dimension | ||
| Length | 11.9m |
|
| Width | 2.3m |
|
| Height | 2.9m |
|
| Operating Weight | 13000kg |
|
2 | Wet-type hopper | L*W: 3.7m*2.4m |
|
3 | Trommel with washing function | Φ0.9m,L: 7.5m | With two washing room |
| Sieve pore | 6mm,8mm | Optional |
4 | Outside Drums
| Φ1.8m,L: 6m | 1/This section is the drum outside the trammel. 2/The section with screw is used for separating the gold from the sand |
| Speed governing method | Frequency converting control | This function can make the plant run at a low rate with efficiency such as 20tph for example. |
5 | Concentrate Sluice | L*W: 6m*0.3m |
|
| Efficient mats | 2sets* |
|
6 | Tailings Sluice | L*W: 6m*1m |
|
| Efficient mats | 2sets |
|
7 | Conveyer belt | Belt L*W: 9m*0.6m |
|
7 | Diesel water pump | DP6" |
|
| Flux/Pumping head | 200m³/30m |
|
8 | Generator set | Weichai 30kw |
|
| Diesel driving motor | 4100ZLD |
|
9 | Handling capacity | 100m³/h |
|

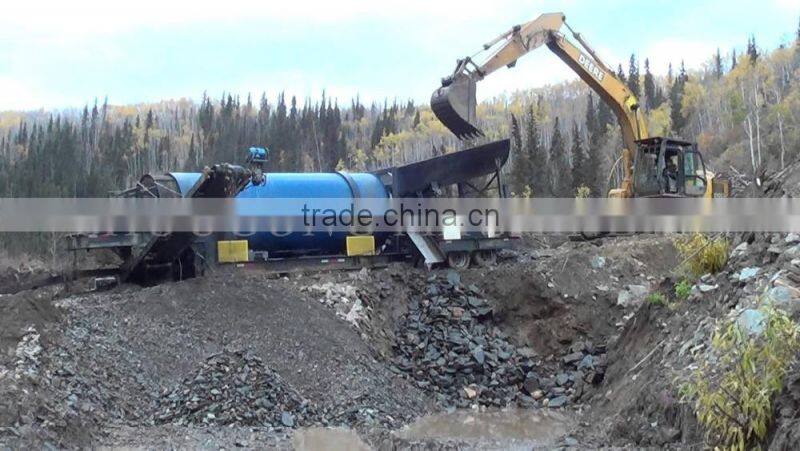

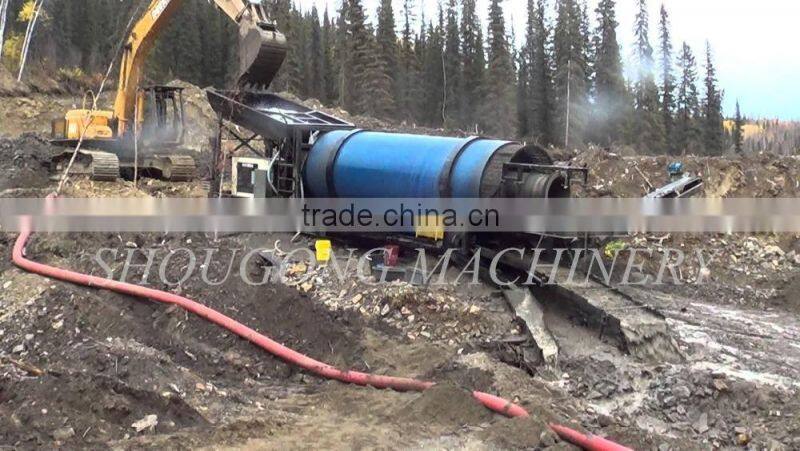

10 | Feed way | Excavator or wheel loader | |
11 | Loading | 1*40HQ |
|
All the high quality placer gold mining trommel screen packed in nude. We can also provide many types of packaging to meet any special requirements.
| Model | Diamension | Quantity |
| SG-GM10 | 4.7*2.3*2.9m | 1*20'GP |
| SG-GM100 | 11.9*2.3*2.9m | 1840'GP |
C
SincerelyLooking forward to cooperate with you!
Contact: Frank
Phone No.: 86-15265755218
Skype: Frankyang23
