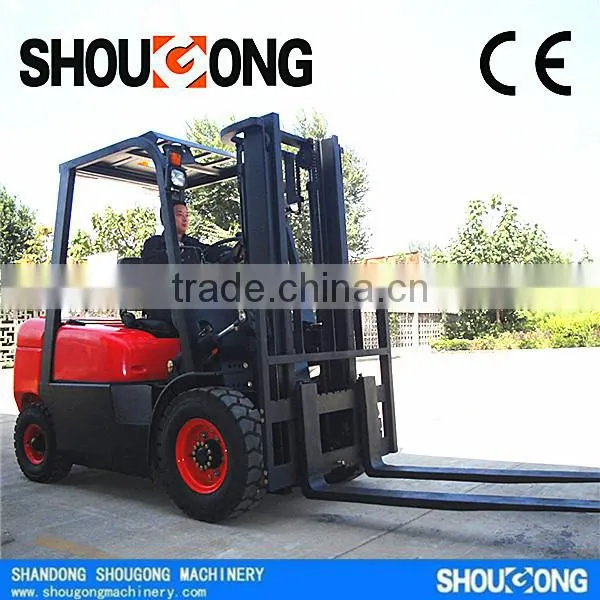

SHOUGONG CPCDSG20F 2000KG Small Forklift

SHOUGONG CPCDSG20F 2000KG Small Forklift thumbnail-1
SHOUGONG CPCDSG20F 2000KG Small Forklift photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SHOUGONG
Contact Supplier Request Quote Chat Now
Shandong Brother International Trading Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name SHOUGONG
Model Number CPCDSG20F
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 2000kg
Max. Lifting Height 3000mm
Min. Lifting Height 60mm
Fork Length 1070mm
Fork Width 100mm
Overall Dimensions 3600*1160*2095mm
Certification CE
After-sales Service Provided No overseas service provided

Specifications

1. 2000KG Small Forklift
2.Excellent brand ,Sound quality
3.Competitive price
4.Easier operation



Product Description



CPCDSG20F 2000KG Small Forklift

Advantage

1. Small forklift with strong engine system

2. High quality imported separate combination instrument

3. Wide visible range during  operation ensures the safety and accuracy of work.

4. Preventing slope sliding function

5. Super cooling system

SHOUGONG CPCDSG20F 2000KG Small ForkliftSHOUGONG CPCDSG20F 2000KG Small Forklift



MODEL

 2000KG Small Forklift

Load capacity

2000 kg

Load center

500 mm

Power type

Diesel

Max. lifting speeds(with load)

400 mm/s

Max. driving speeds(with/without load)

19 km/h

Grade ability(with load)

20%

Lifting height

3000 mm

Free lift

60 mm

Tilting angles(forward-backward)

12°

Min. turning radius

2450 mm

Min. Right angle aisle width

2050 mm

Min. under-clearance

110 mm

Dimensions

Overall length(including fork)

3605 mm

Overall width

1160 mm

Overall height(mast lowered)

2095 mm

Overall height(mast extended)

4080 mm

Overall height to overhead guard

2095 mm

Fork overhang

451 mm

Wheel base

1640 mm

Tread

Front tread

970 mm

Rear tread

970 mm

Tire

Front tire

7.00-12

Rear tire

6.00-9

Total weight

3320 kg

Fork width

100 mm

Fork thickness

40 mm

Backrest height

1000 mm

Fork length

1070 mm

Engine

Engine model

490

Rated power

39 kw

Rotate speed at rated power

2650 rpm

Max. Torque

157

Rotate speed at max. Torque

1980 rpm

 Type of power shift

Hydraulic transmission (Automatic)
