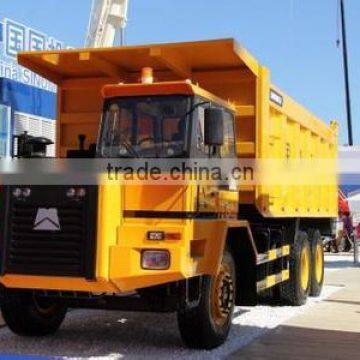

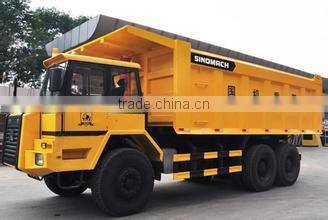

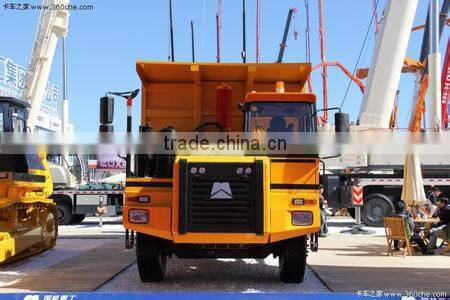

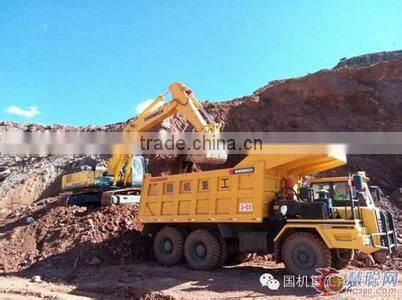

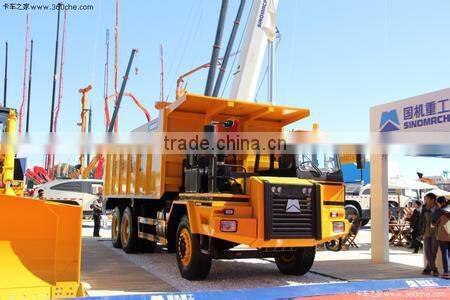

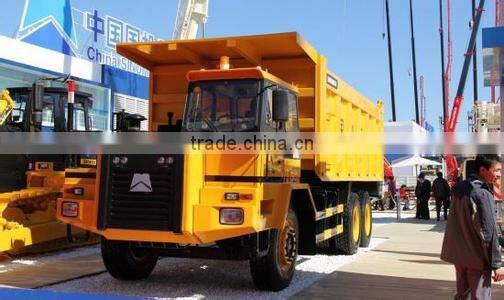

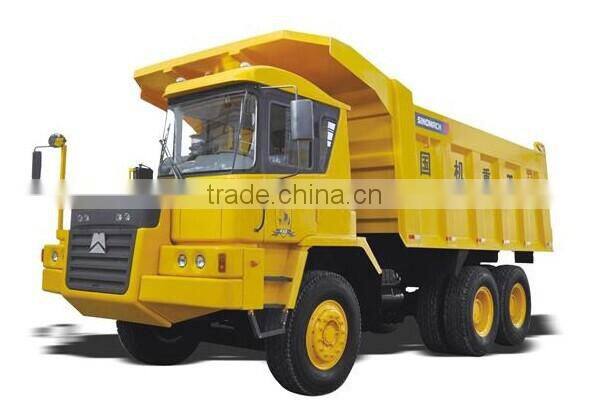

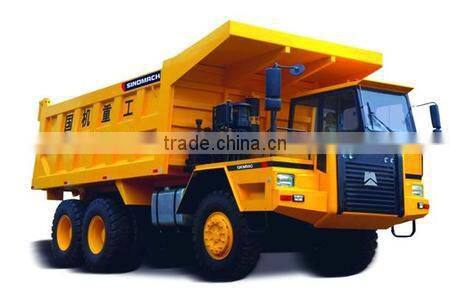

GKP80D Off-highway Mine Dumper Truck
Description:
This series off-highway dump trucks are equipped with WD615 line 6 cylinders, four stoke, turbo-charged medium-cooled diesel engine, double drive axle, service brake and parking brake, full metal welded closed structure. Heater or air-conditioner can be installed in the cab to improve the safety, amenity, utilization ratio and ease of operate of the truck and to reduce the total operation cost. They are mainly used in short-distance transportation filed such as surface mine, expressway, building material factory, etc.
Main Features:
1. Carrying capacity: specially designed and customized extra large reduction gear drive axle, strengthened suspended system, frame beam made of high-strength material, 14.00-24 engineering tires of large diameter and wide base, all of which greatly advance the carrying capacity of the vehicle.
2. Matching high-powered engine and high speed and high torque gear-box according to different working conditions, which can assure strong driving force, high climbing ability and smooth starting under heavy load under the condition of raising the carrying capacity for 30%.
3. Full steel frame type cab is better in safety, wider in vision, larger in operation space, which can advance the amenity of the operation and reduce the driver’s labor intensity.
4. Increasing the volume of the container, and improving the transportation efficiency.
Technical Parameters:
Model |
Unit |
GKP80D |
Kerb mass |
kg |
26000 |
Payload |
kg |
80000 |
Overall size(mm) |
mm |
10400X3165X3750 |
Container Size |
mm |
7000x2970x1750 |
Drive model |
-- |
6×4 |
Engine |
-- |
WD615 |
Max. Power |
kW |
279 |
Max. Torque |
Nm |
1500(1100~1600r/min) |
Transmission |
-- |
Fuller 9JSD220B |
Tire size |
-- |
14.00-R25 |
Drive axle/Ratio |
-- |
Double reduction /11.125 |
Clutch |
-- |
430mm membrance type |
Max. Travelling speed |
km/h |
68 |
Min. Turning radius |
m |
11.9 |
Ground clearance |
mm |
390 |
Grade ability |
% |
30 |
Electric system |
v |
24 |
Brake form |
-- |
Storage breathe brake |
Damping model |
-- |
Spring steel plate assisting oil type buffer |
